Detailed Specifications

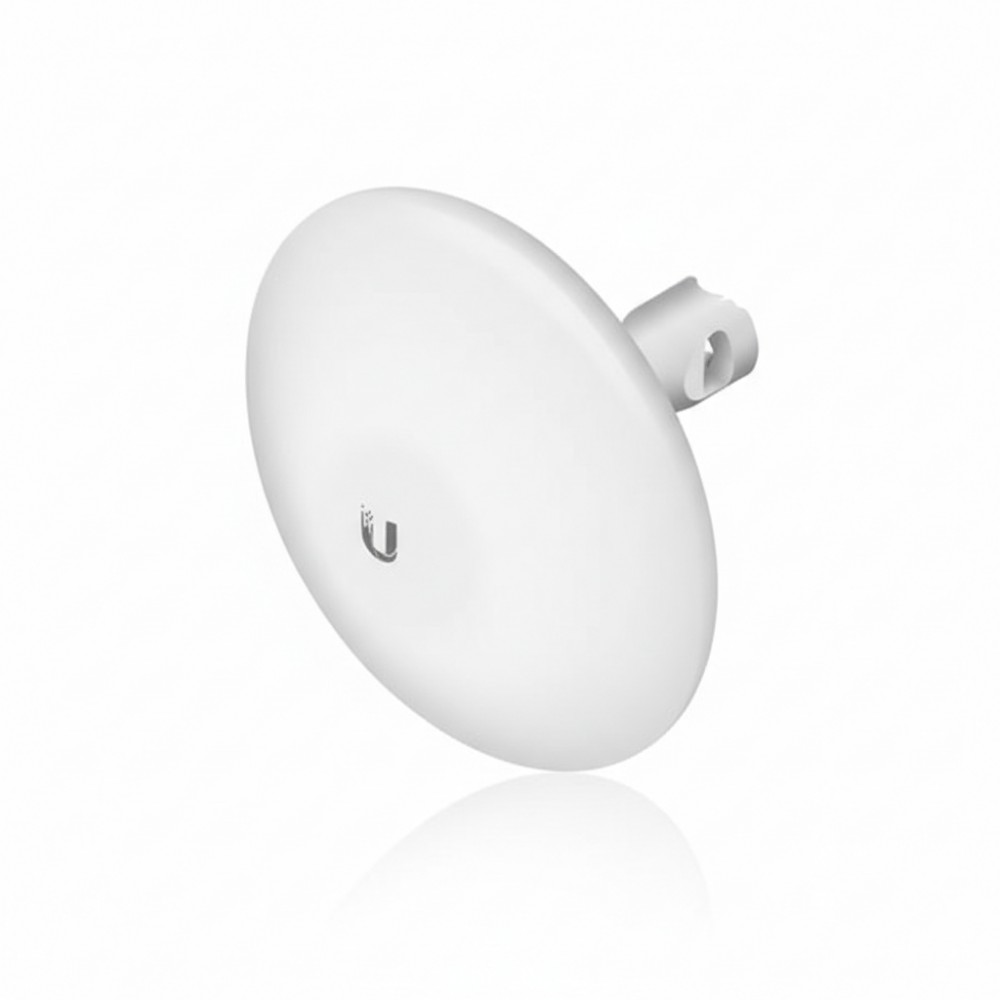

Ubiquiti NBE-M5-16 US 5 GHz airMAX Bridge
Overview
The Ubiquiti NBE-M5-16 US is an outdoor 5 GHz wireless bridge in the airMAX family, used to create point-to-point or point-to-multi-point links between distant network sites. It integrates the radio and high-gain directional antenna into a compact form factor, providing focused RF energy for long-range connectivity. Its single RJ45 Ethernet port carries network data and passive PoE power, and the unit withstands outdoor conditions from -40 °C to 70 °C. It fits as a customer-premise equipment (CPE) or bridge in backhaul deployments for campuses, campuses, farms, or rural links.
Key Features
16 dBi directional 5 GHz antenna
Outdoor UV-stabilized plastic housing
Single 10/100 MbE RJ45 with passive PoE
Pole or wall mounting kit included
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | NBE-M5-16 US |
| Product Type | 5 GHz Outdoor Bridge |
| Frequency Range (USA) | 5150-5850 MHz |
| Antenna Gain | 16 dBi |
| Networking Interface | 1× 10/100 MbE RJ45 |
| Power Method | Passive PoE (Pairs 4,5+; 7,8 return) |
| Power Supply | 24 V, 0.5 A PoE adapter included |
| Max Power Consumption | 6 W |
| Polarization | Dual linear |
| Channel Sizes | 5/8/10/20/30/40 MHz |
| Enclosure | Outdoor UV-stabilized plastic |
| Mounting | Pole or wall mount kit included |
| Operating Temp | -40 to 70 °C |
| Operating Humidity | 5 % to 95 % non-condensing |
