Detailed Specifications

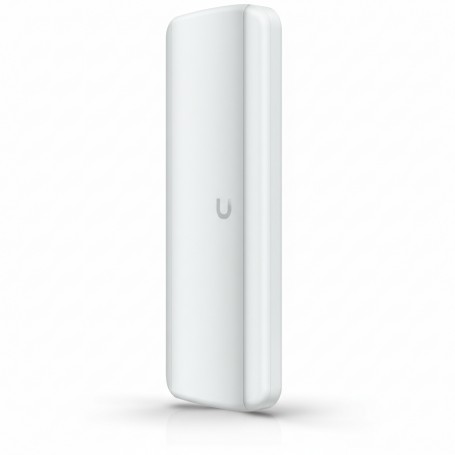

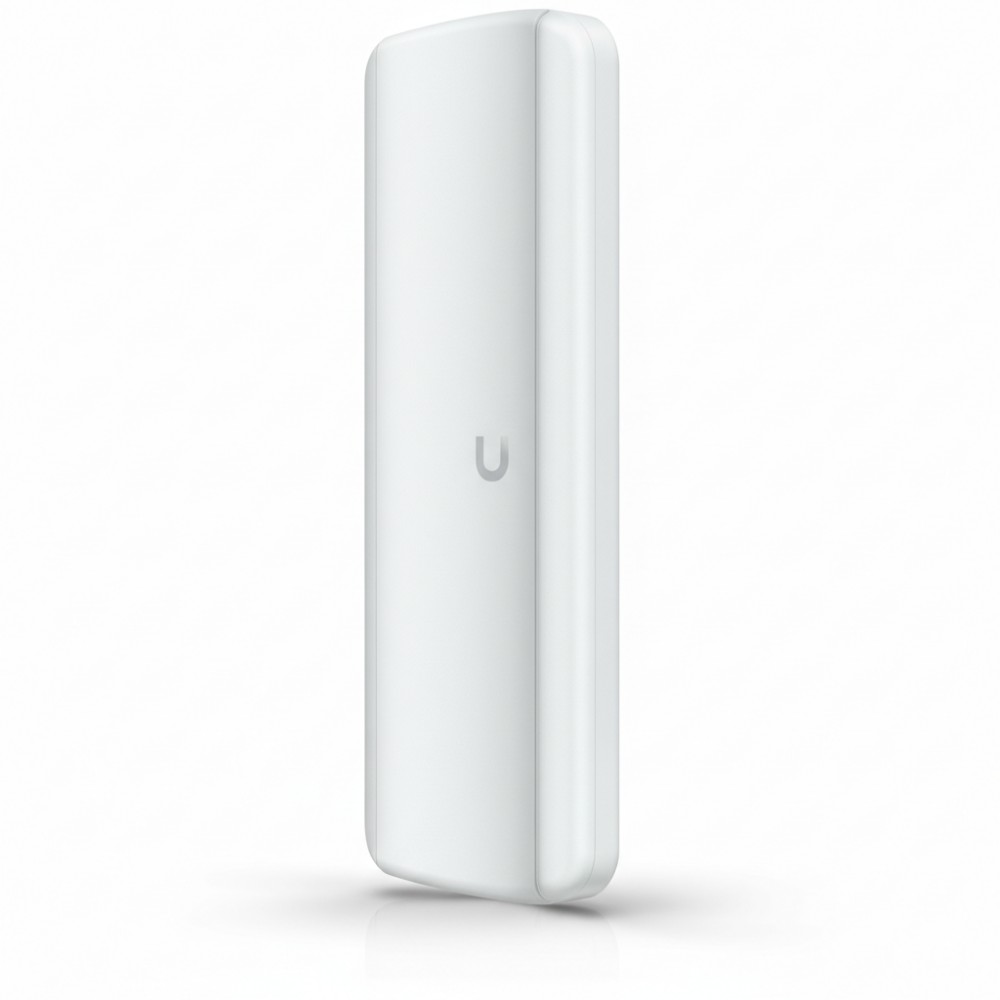

Ubiquiti UDB-Pro-Sector-US Outdoor PtMP Bridge
Overview
UDB-Pro-Sector-US is a point-to-multipoint 5 GHz wireless bridge used to connect multiple UDB-Pro client units in outdoor networks. It supports IEEE 802.11a/n/ac (Wi-Fi 5) with an integrated 90° sector antenna to cover wide areas. Designed for deployments where many remote endpoints must link back to a central hub, it excels in long-range outdoor scenarios. The unit mounts on a pole and integrates into UniFi-managed infrastructure for centralized control.
Key Features
5 GHz point-to-multipoint bridging
Integrated 17 dBi, 90° sector antenna
PoE powered Gigabit Ethernet interface
IPX6 weatherproof outdoor design
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | UDB-Pro-Sector-US |
| Product Type | Outdoor PtMP Wireless Bridge |
| Wireless Standard | IEEE 802.11a/n/ac (Wi-Fi 5) |
| Frequency Band | 5 GHz |
| Antenna Gain | 17 dBi |
| Max Data Rate | 400 Mbps (40 MHz BW) |
| MIMO Configuration | 2×2 |
| Transmit Power | 25 dBm |
| Ethernet Interface | 1× Gigabit RJ45 PoE |
| Power Method | PoE 42.5-57 V DC |
| Max Power Consumption | 6 W |
| Outdoor Rating | IPX6 |
| Operating Temp | −40 °C to 60 °C |
| Dimensions | 360.9×129.6×71.4 mm |
| Weight | 782 g (device only) |
