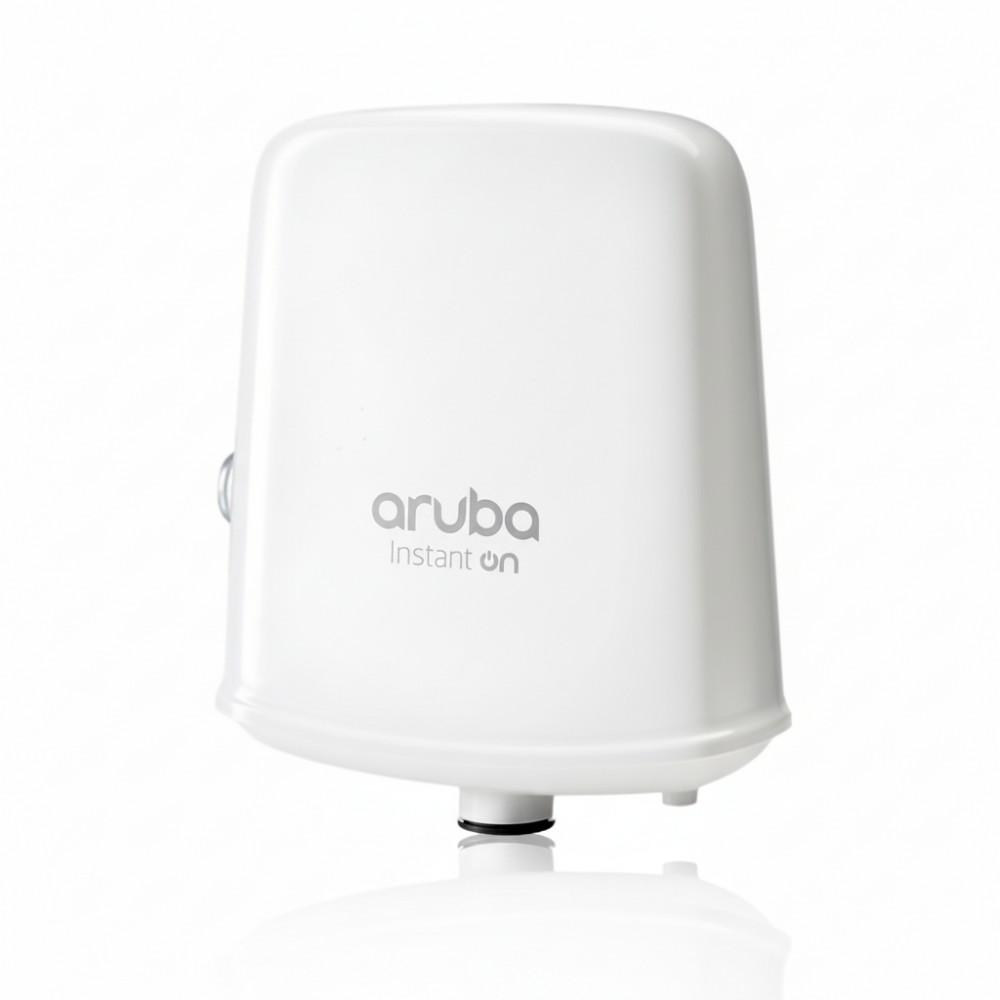

HPE R2X10A - Instant On AP17 Outdoor Wi-Fi 5 Access Point
Overview :
The HPE R2X10A (Instant On AP17) is an outdoor dual-band Wi-Fi 5 access point designed for small to medium business environments requiring rugged wireless coverage in outdoor or semi-outdoor locations. It supports 802.11ac Wave 2 technology with a 2x2 MIMO configuration delivering up to 867 Mbps on the 5 GHz band and up to 300 Mbps on 2.4 GHz for a combined theoretical throughput of 1.17 Gbps. It includes a single Gigabit Ethernet uplink port and is powered via 802.3af PoE (power injector or switch required) making it suitable for mounting on walls or poles in patio, pool-side, drive-through or external warehouse deployment. The enclosure is weather-rated for outdoor installation and integrates with the Instant On mobile app and cloud portal for simplified configuration and management of multiple access points within the same network.
Key Features :
Outdoor-rated enclosure for wall or pole mounting
Dual-band 2x2 MIMO for Wi-Fi 5 with Wave 2 support
Single Gigabit RJ-45 uplink with PoE-in (802.3af) support
Up to 1.17 Gbps aggregate throughput (867 + 300 Mbps)
WPA2/WPA3 and Enhanced Open (OWE) secure wireless access
Specifications :
| Specification | Detail |
|---|
| Brand | HPE (Hewlett Packard Enterprise) |
| Part Number | R2X10A |
| Product Type | Outdoor Wireless Access Point (Wi-Fi 5) |
| Wireless Standards | IEEE 802.11ac (Wave 2) / 802.11n |
| Frequency Bands | 2.4 GHz & 5 GHz dual-band |
| Maximum Data Rate | Up to 867 Mbps (5 GHz) / 300 Mbps (2.4 GHz) |
| Uplink Port | 1 × Gigabit Ethernet (RJ-45) |
| Power Input | PoE-in IEEE 802.3af, max power ~13.5 W |
| Antenna Gain | 4.7 dBi at 2.4 GHz / 4.2 dBi at 5 GHz |
| Mounting Options | Wall or pole mount included |
| Dimensions (H × W × D) | 7.4 in × 6.1 in × 2.6 in |
| Weight | 1.4 lbs |
| Operating Temperature | -40 °C to +50 °C (-40 °F to +122 °F) |
| Security Features | WPA2, WPA3, Enhanced Open (OWE) |
| Warranty | 2-Year manufacturer warranty |
