Detailed Specifications

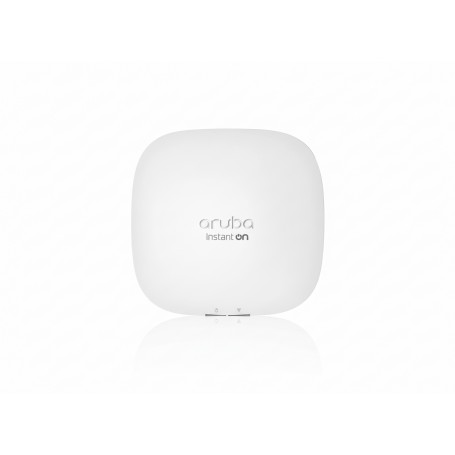

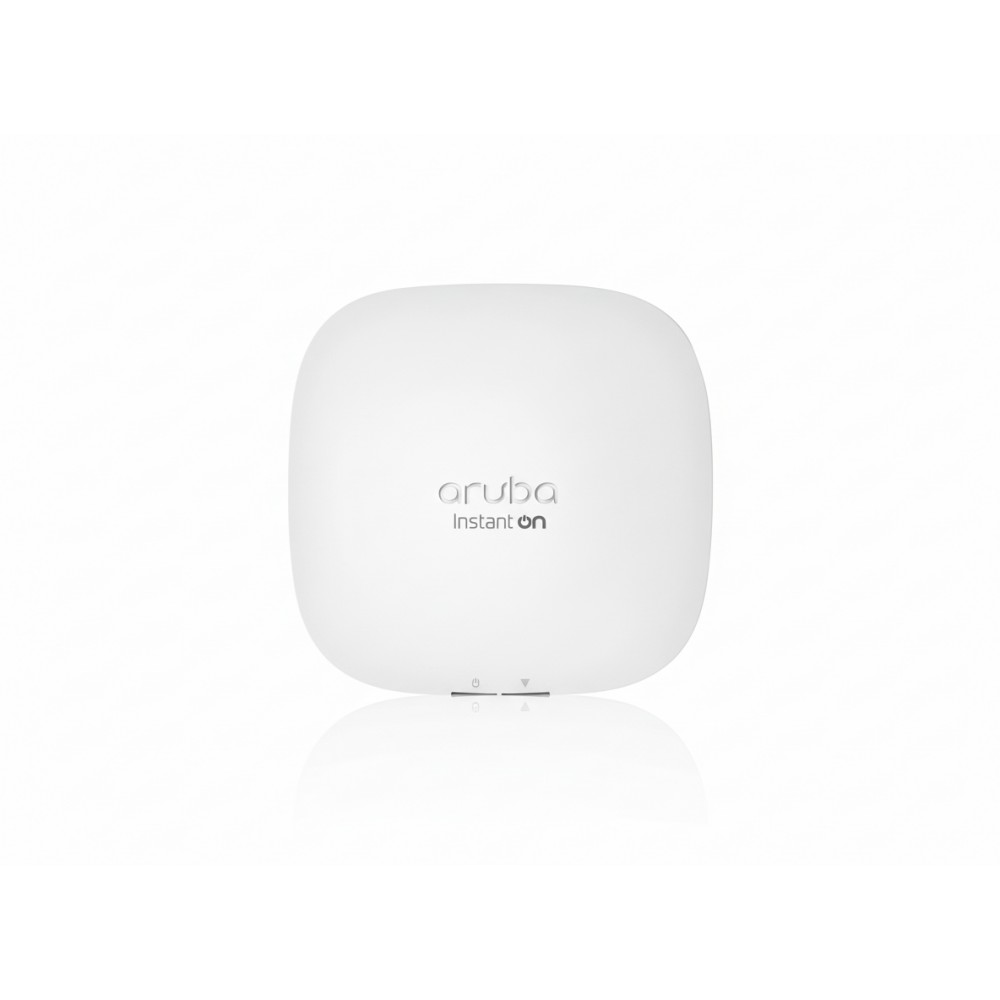

HPE Aruba R4W01A - Wi-Fi 6 Indoor Access Point
Overview :
The HPE R4W01A is a dual-band indoor access point designed to deliver Wi-Fi 6 (802.11ax) connectivity in small business and branch office environments. It supports up to 75 associated clients per radio and provides a maximum aggregated data rate of 1.2 Gbps via simultaneous 2.4 GHz and 5 GHz operation. The device accommodates Power over Ethernet (802.3af) and 12 VDC input, simplifying deployment in ceilings or walls without requiring external controllers. With integrated omni-directional antennas and a compact footprint of 1.5″ × 6.3″ × 6.3″ (H × W × D), it fits into dense user environments such as professional offices, retail spaces, and classrooms. Security is enforced via WPA2/WPA3 and Enhanced Open guest access while built-in support for Smart Mesh enables extended coverage where cabling is challenging. The R4W01A is managed through the Aruba Instant On portal or mobile app, providing streamlined provisioning alongside mounting hardware included in pack-out.
Key Features :
Wi-Fi 6 dual-band (2.4 GHz/5 GHz) operation
Gigabit Ethernet uplink with PoE-in (802.3af class 3)
Peak aggregated throughput of 1.2 Gbps
Wall, ceiling or rail-mount models with included clip
WPA3 security and Enhanced Open guest access support
Specifications :
| Specification | Detail |
|---|
| Brand | HP (Hewlett Packard Enterprise) |
| Part Number | R4W01A |
| Product Type | Indoor Wi-Fi 6 Access Point |
| Wireless Standard | IEEE 802.11ax (Wi-Fi 6) |
| Peak Aggregate Throughput | 1.2 Gbps |
| Uplink Port | 1 × Gigabit Ethernet |
| PoE Input | 802.3af Class 3 (PD) |
| DC Input | 12 VDC |
| Mounting Options | Wall/ceiling rail clip included |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Antenna Gain | 4.3 dBi (2.4 GHz) / 5.6 dBi (5 GHz) |
| Dimensions (H × W × D) | 1.5″ × 6.3″ × 6.3″ |
| Weight | 1.1 lbs |
| Supported Clients | Up to 75 clients per radio |
| Mounting Clip Included | Yes |
