Detailed Specifications

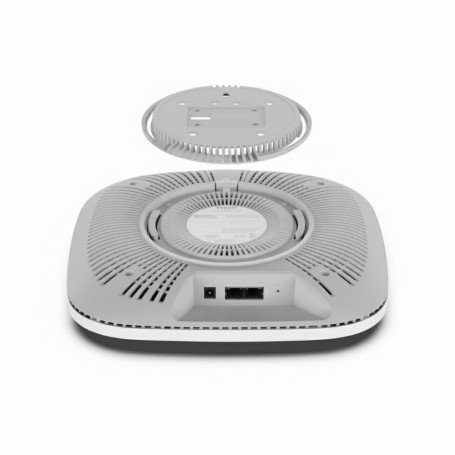

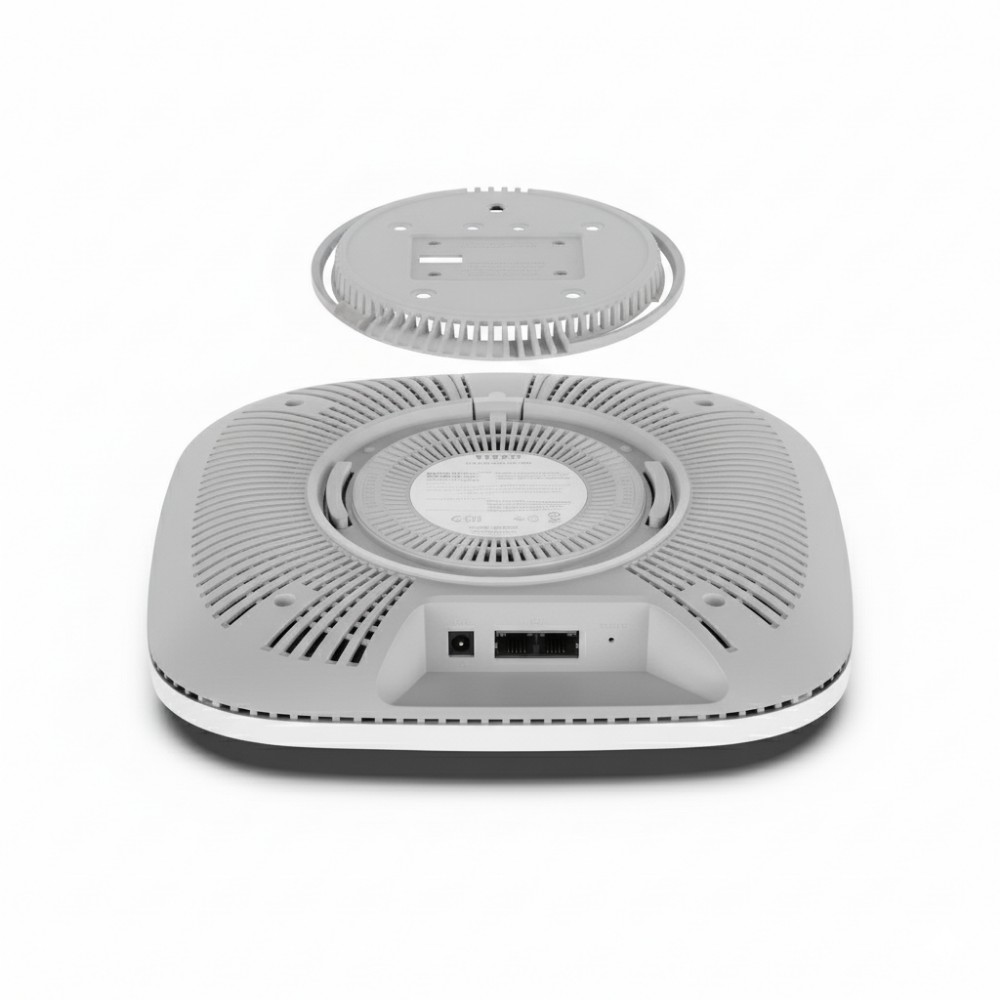

Netgear WAX638E-111NAS - WiFi 6E Tri-Band Access Point
Overview :
The Netgear WAX638E-111NAS is a cloud-managed tri-band WiFi 6E access point designed for IT integrators and enterprise edge deployments. It delivers combined throughput up to 7.8 Gbps, with 2.4 GHz, 5 GHz, and 6 GHz radios and support for 160 MHz channel width. It supports multi-gig Ethernet (2.5 GbE) with PoE++ power delivery, enabling single-cable deployment. It fits in dense environments such as offices, schools, hotels, or branch locations. The device is managed via Netgear Insight for centralized visibility, provisioning, and analytics.
Key Features :
Tri-band WiFi 6E with 8-stream architecture
2.5 Gbps Ethernet port with 802.3bt (PoE++) support
Supports 160 MHz channels on 5 GHz and 6 GHz
Up to 8 SSIDs with VLAN tagging per SSID
Specifications :
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | WAX638E-111NAS |
| Product Type | WiFi 6E Tri-Band Access Point |
| WiFi Standard | IEEE 802.11ax (WiFi 6E) |
| Max Aggregate Throughput | 7.8 Gbps |
| Radio Breakdown | 2.4 GHz: 600 Mbps / 5 GHz: 4,800 Mbps / 6 GHz: 2,400 Mbps |
| Ethernet Interfaces | 1 × 2.5 GbE (LAN1 / PoE++) + 1 × 1.0 GbE |
| PoE Support | 802.3bt Type 3 (up to ~60 W) & 802.3at fallback |
| Operating Temperature | 0 °C to 40 °C |
| Dimensions (W × D × H) | 266.6 × 268.3 × 55.5 mm |
| Weight | ≈ 1,050 g |
| SSIDs Supported | 8 SSIDs (VLAN per SSID) |
