Detailed Specifications
Netgear WAX214-200NAS AX1800 Dual-Band PoE Access Point
Overview

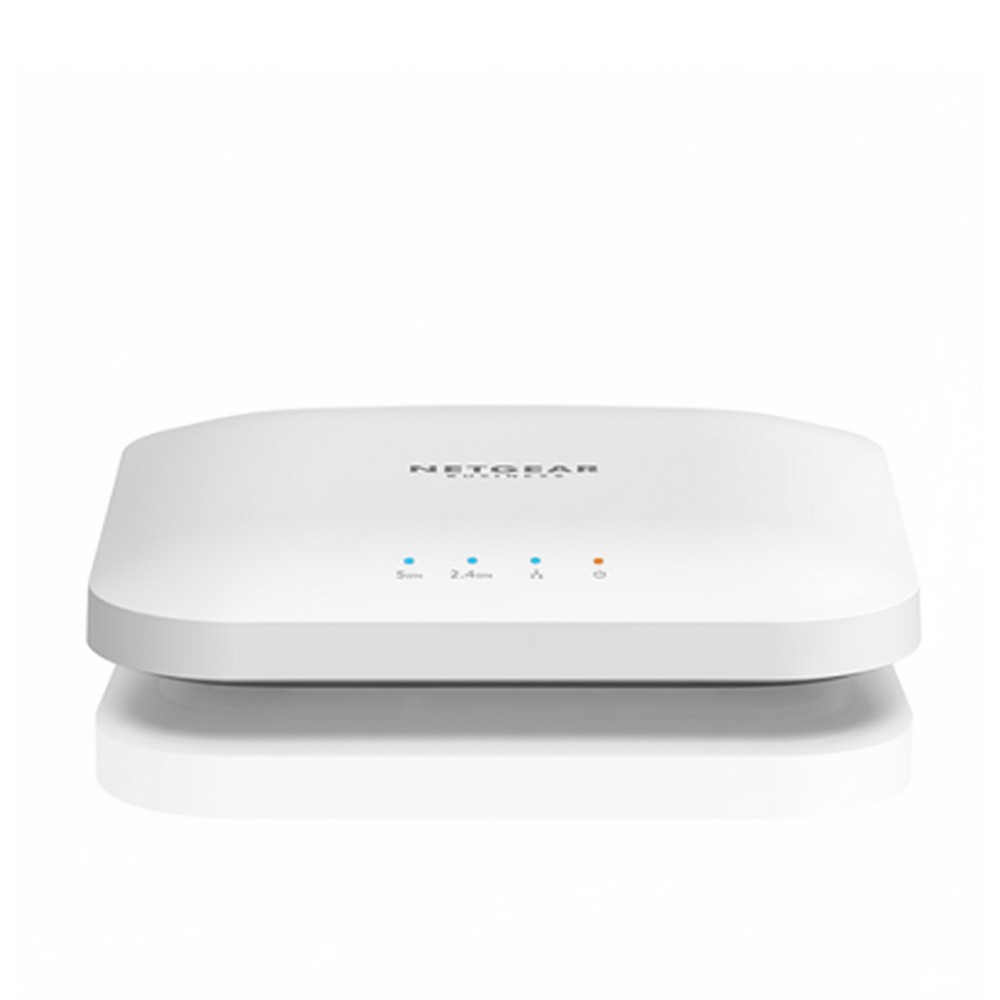

The Netgear WAX214-200NAS is a dual-band WiFi 6 (802.11ax) access point with PoE support, designed for small offices, retail shops, or branch deployments. It delivers up to 1.8 Gbps aggregate throughput (600 Mbps at 2.4 GHz + 1,200 Mbps at 5 GHz) in concurrent operation. It fits ceiling or wall locations to serve client areas, especially where clean wireless coverage is needed. Management is via its local web UI; no external controller is required.
Key Features
1.8 Gbps (AX1800) dual-band wireless throughput
Single Gigabit PoE (802.3at) port for power and data
Supports WPA3/WPA2, MAC ACLs, 4 SSIDs
Ceiling/wall mountable, compact 160.9 × 160.9 × 33.3 mm
Technical Specifications
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | WAX214-200NAS |
| Product Type | Dual-band WiFi 6 PoE Access Point |
| Wireless Standard | IEEE 802.11ax / ac / n / a / b / g |
| Maximum Throughput | 1,800 Mbps (600 Mbps + 1,200 Mbps) |
| Ethernet Interface | 1 × 10/100/1000 Mbps RJ-45 (PoE) |
| Power Options | PoE+ (802.3at) or 12 V DC / 1.5 A |
| Antennas | Integrated: 3 dBi (2.4 GHz), 4 dBi (5 GHz) |
| Mounting | Ceiling or wall mount |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Max Clients | 128 |
| Security | WPA, WPA2, WPA3, MAC address filtering |
| Warranty | 3-year limited hardware warranty |
