Detailed Specifications

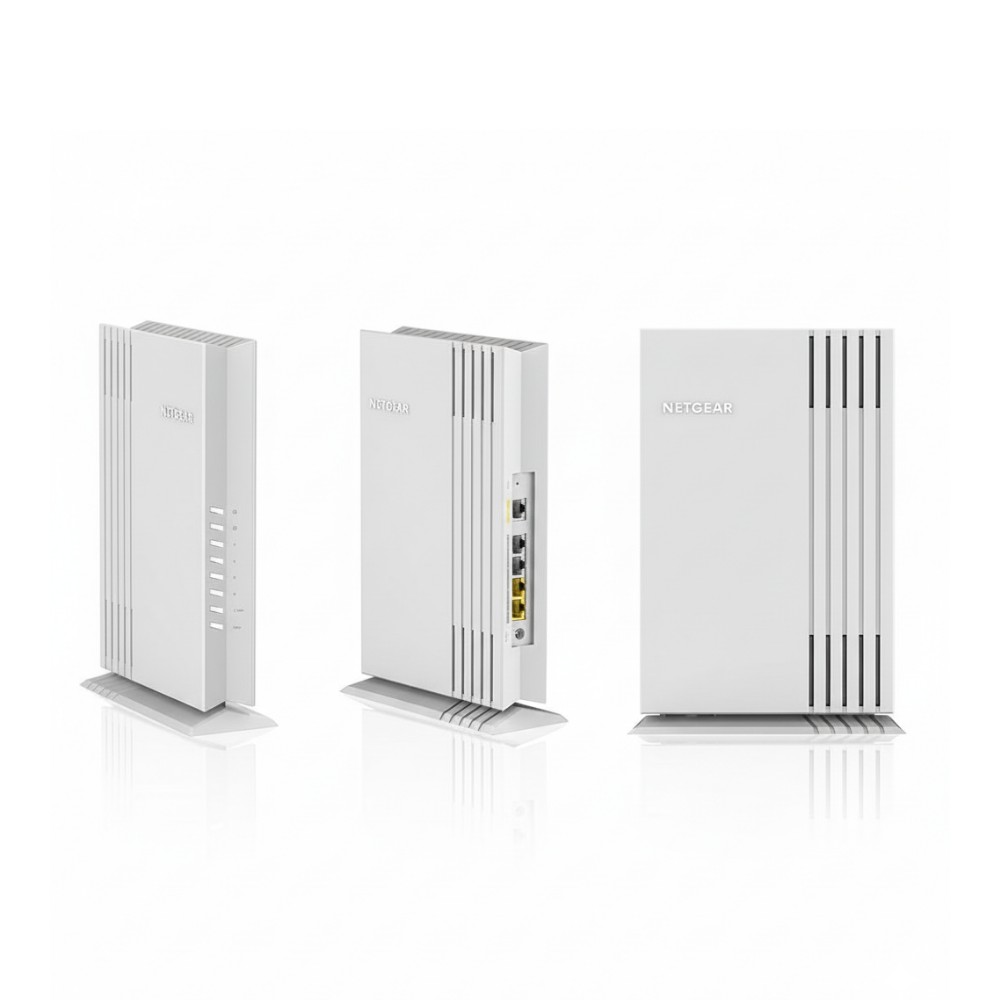

Netgear WAX206-100NAS AX3200 Dual-Band Access Point
Overview :
The Netgear WAX206-100NAS is a dual-band WiFi 6 (802.11ax) access point for small offices, branch sites, and dense home deployments. It delivers up to 3.2 Gbps combined throughput (800 Mbps @ 2.4 GHz + 2,400 Mbps @ 5 GHz). It installs indoors on desktops or walls and is used to extend wireless coverage in client areas. It supports standalone mode via a local web GUI and does not require a controller.
Key Features :
AX3200 throughput: 800 + 2,400 Mbps
One 2.5 G uplink + four 1 G LAN ports
Supports WPA3, WPA2, WPA & MAC ACL
Up to 128 concurrent client associations
Technical Specifications :
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | WAX206-100NAS |
| Product Type | Dual-Band WiFi 6 Access Point |
| Wireless Standard | IEEE 802.11ax (WiFi 6) |
| Max Throughput | 3,200 Mbps (800 + 2,400) |
| Frequency Bands | 2.4 GHz + 5 GHz simultaneous |
| Ethernet Ports | 1 × 2.5 G + 4 × 1 G RJ-45 |
| Power Supply | 12 V DC, 2.5 A (30 W) |
| Dimensions (W × H × D) | 170 × 63 × 242 mm |
| Weight | 504 g |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10 % to 90 % non-condensing |
| Max Clients | 128 |
| Security | WPA, WPA2, WPA3, MAC ACL |
| Mounting | Desktop or wall mount |
