Detailed Specifications

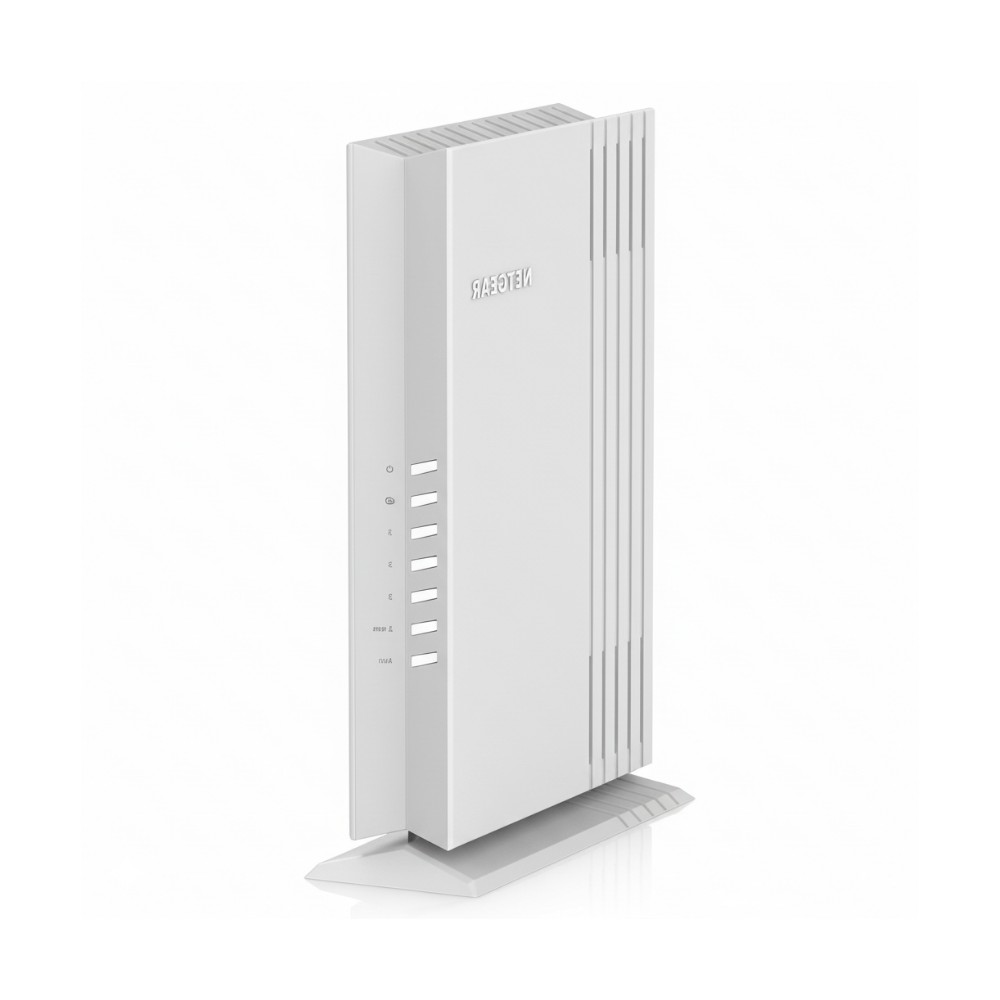

Netgear WAX202B-100NAS AX1800 Dual-Band AP
Overview :
The Netgear WAX202B-100NAS is a dual-band WiFi 6 access point for small offices and branch sites. It supports concurrent 2.4 GHz and 5 GHz operation with combined throughput of 1.8 Gbps. It is deployed in indoor spaces to provide client coverage and network extension. It operates in standalone mode via local web GUI, without requiring a controller.
Key Features :
Dual-band IEEE 802.11ax with 1.8 Gbps aggregate rate
Four Gigabit Ethernet ports with auto-uplink
Supports WPA3, WPA2, and MAC ACL security
Up to 128 client associations supported
Technical Specifications :
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | WAX202B-100NAS |
| Product Type | Dual-Band WiFi 6 Access Point |
| WiFi Standard | IEEE 802.11ax / ac / n / a / b / g |
| Maximum Throughput | 1,800 Mbps (600 Mbps @ 2.4 GHz + 1,200 Mbps @ 5 GHz) |
| Ethernet Ports | 4 × 10/100/1000 Mbps (RJ-45), Auto Uplink |
| Power Supply | 12 V DC, 1.5 A (18 W) |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -20 °C to 70 °C |
| Operating Humidity | 10 % to 90 % non-condensing |
| Maximum Clients | 128 |
| Security | WPA, WPA2, WPA3, MAC ACL |
| Antenna Gain (Peak) | 2.4 GHz: 1.5 dBi; 5 GHz: 3.5 dBi |
| Warranty | 3 years limited |
