Detailed Specifications

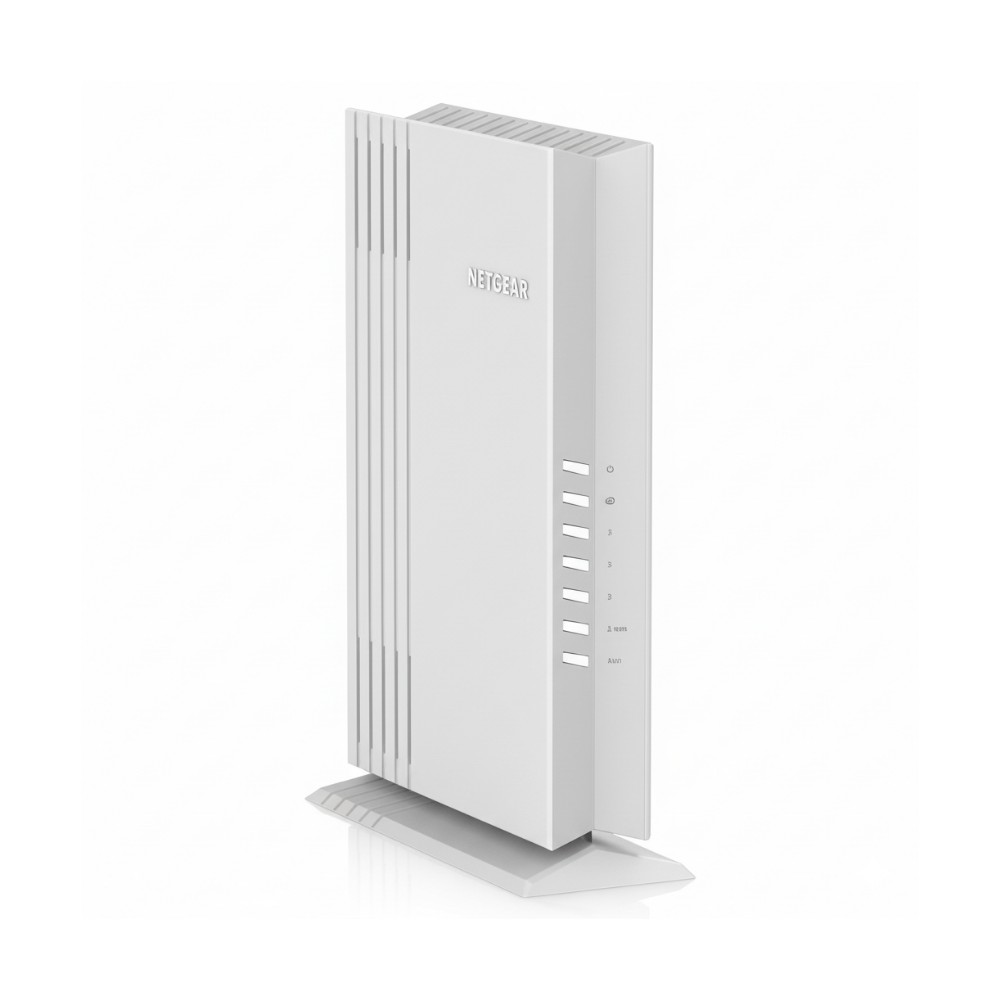

Netgear WAX202-100NAS AX1800 Dual-Band Access Point
Overview :
The Netgear WAX202-100NAS is a dual-band WiFi 6 access point designed for small office, retail, and branch environments. It offers a combined throughput of 1.8 Gbps (600 Mbps @ 2.4 GHz + 1,200 Mbps @ 5 GHz) to serve modern wireless clients. It's typically deployed in ceilings, walls, or compact spaces to extend or densify wireless coverage. It supports standalone management via a local GUI, without requiring an external controller.
Key Features :
Dual-band 802.11ax with 1.8 Gbps aggregate throughput
Four 1 Gbps Ethernet ports with Auto Uplink
Supports WPA3, WPA2, and MAC filtering
Up to 128 client associations
Technical Specifications :
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | WAX202-100NAS |
| Product Type | Dual-Band WiFi 6 Access Point |
| Wireless Standard | IEEE 802.11ax / ac / n / a / b / g |
| Maximum Throughput | 1,800 Mbps (600 + 1,200) |
| Ethernet Ports | Four 10/100/1000 Mbps RJ-45 (Auto Uplink) |
| Power Supply | 12 V DC, 1.5 A (18 W) |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -20 °C to 70 °C |
| Operating Humidity | 10 % to 90 % non-condensing |
| Number of Clients | Up to 128 |
| Security Protocols | WPA, WPA2, WPA3, MAC ACLs |
| Antenna Gain (Peak) | 2.4 GHz: ~1.5 dBi; 5 GHz: ~3.5 dBi |
