Detailed Specifications

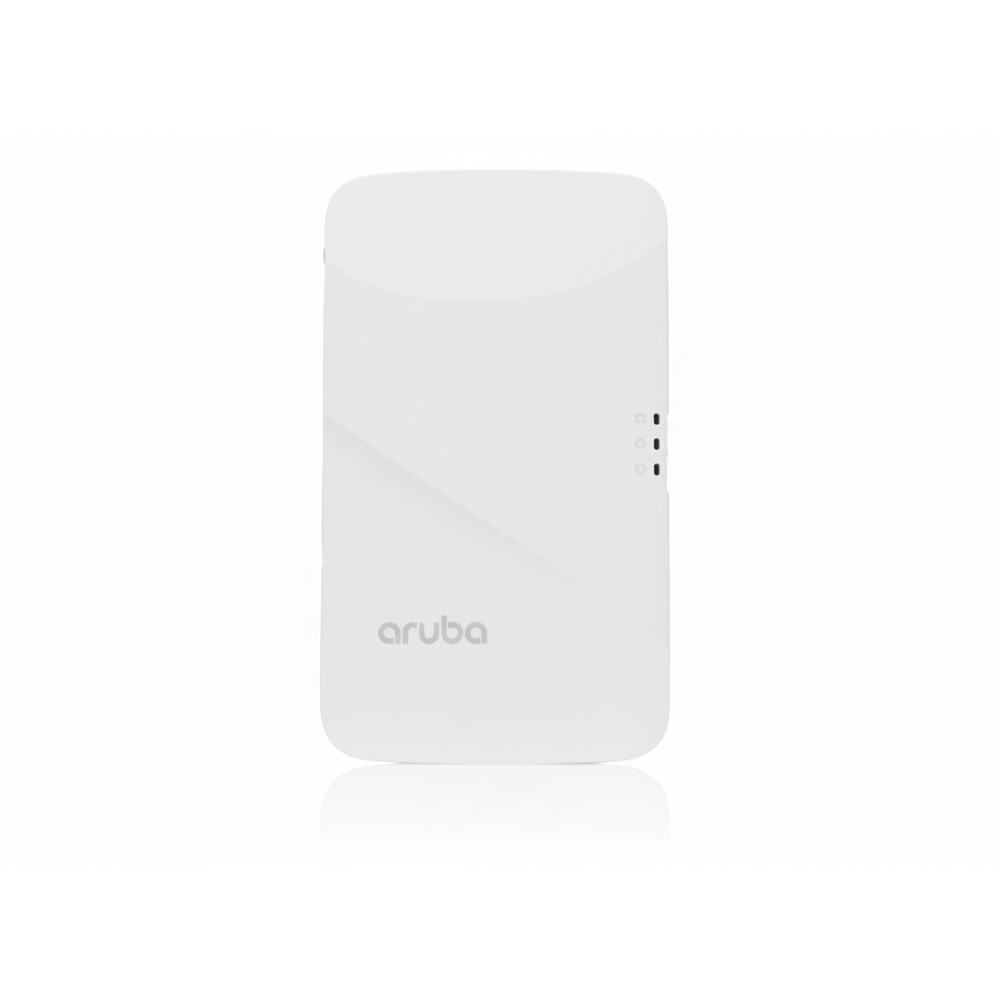

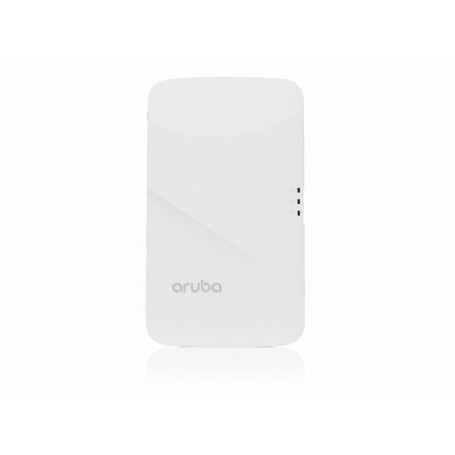

HPE JY680A - Aruba AP-303H Dual-Radio 2×2:2 Access Point
Overview
The HPE JY680A corresponds to the Aruba AP-303H, a dual-radio 802.11ac (WiFi 5) access point designed for hospitality, branch office or guest-room deployments. It employs a 2×2:2 spatial-stream radio configuration and supports maximum throughput of up to 867 Mbps on the 5 GHz band (and roughly 400 Mbps on 2.4 GHz) under ideal conditions.With internal antennas, multiple wired ports, USB support, and mounting options for rooms or desks, it's tailored for guest-services, dorms or branch user zones. However, note that the official product documentation entries indicate the 303H series is now listed as obsolete.
Key Features
Dual-radio 802.11ac Wave 2 support with 2×2:2 MU-MIMO×enables modern WiFi clients and supports higher density than basic APs.
Uplink plus local wired ports: includes one Gigabit RJ-45 uplink and additional Gigabit RJ-45 ports for local/daisy-chained wired devices.
USB port interface (Type A) for guest/IoT use or device profiling.
Internal antennas with moderate gain (e.g., ~5.6 dBi in 2.4 GHz band) simplify installation and make it suitable for room or wall/ceiling mounting.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE (Aruba Networking) |
| Part Number | JY680A |
| Product Type | Dual-Radio Access Point - 802.11ac Wave 2 |
| Key Specification | Spatial Streams: 2×2:2 |
| Key Specification | Max Throughput: Up to 867 Mbps (5 GHz) + ~400 Mbps (2.4 GHz) |
| Key Specification | Ports: 1× Gigabit RJ-45 uplink + 2× Gigabit RJ-45 local + 1× USB Type A |
| Management | ArubaOS controller or Instant/Cloud mode |
| Status | Series listed as obsolete in vendor documentation |
