Detailed Specifications
HPE JX967A - Aruba AP-365 Outdoor Dual-Radio 2×2:2 Access Point
Overview

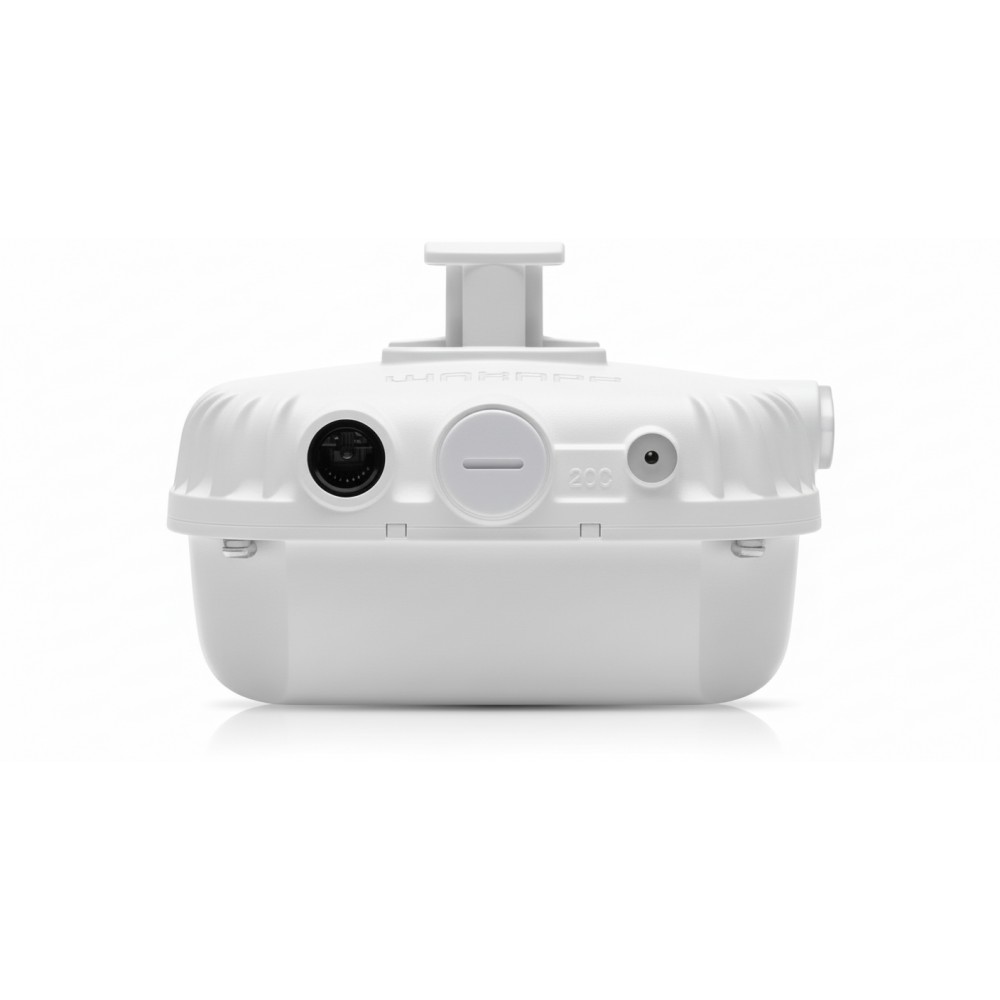

The HPE JX967A (also referenced as the Aruba AP-365) is an outdoor-rated access point designed for enterprise deployments where coverage must extend outdoors × for example patios, open-air corridors, or retail exteriors. It uses 802.11ac Wave 2 ("WiFi 5") dual-radio capability with a 2×2:2 spatial stream design. It provides about 866 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band for an aggregate of ~1.27 Gbps throughput. The AP is listed as part of the Aruba 360 series outdoor access points. This model suits deployment scenarios such as outdoor seating areas, building exterior overhangs or campus walkways where you need weather-rated gear but your device density and throughput demands are moderate.
Key Features
Dual-radio 2×2:2 MU-MIMO supports both 2.4 GHz and 5 GHz bands for flexible client coverage.
Outdoor-rated housing (part of the Aruba 360 series) that tolerates harsh environment conditions including exposure to dust, moisture and temperature extremes.
Integrated internal antennas (omnidirectional) simplify mounting and deployment without external antenna configurations.
Up to ~1.27 Gbps aggregate throughput under ideal conditions×sufficient for many outdoor WiFi zones but not the highest-capacity tier.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE (Aruba Networking) |
| Part Number | JX967A |
| Product Type | Outdoor Dual-Radio Access Point (802.11ac Wave 2) |
| Key Specification | Spatial Streams: 2×2:2 |
| Key Specification | Max Aggregate Throughput: ~1.27 Gbps |
| Key Specification | Frequency Bands: 2.4 GHz & 5 GHz |
| Management | ArubaOS Controller / Instant / Cloud |
| Power Requirements | PoE+ (802.3at) (verify specific variant) |
| Outdoor Rating | Outdoor mounting capability (Aruba 360 series) |
| Warranty | End-of-Life / check region (EOL |
