Detailed Specifications
HPE Aruba AP-535 (JZ347A) - Dual-Radio 802.11ax Indoor Access Point
Overview

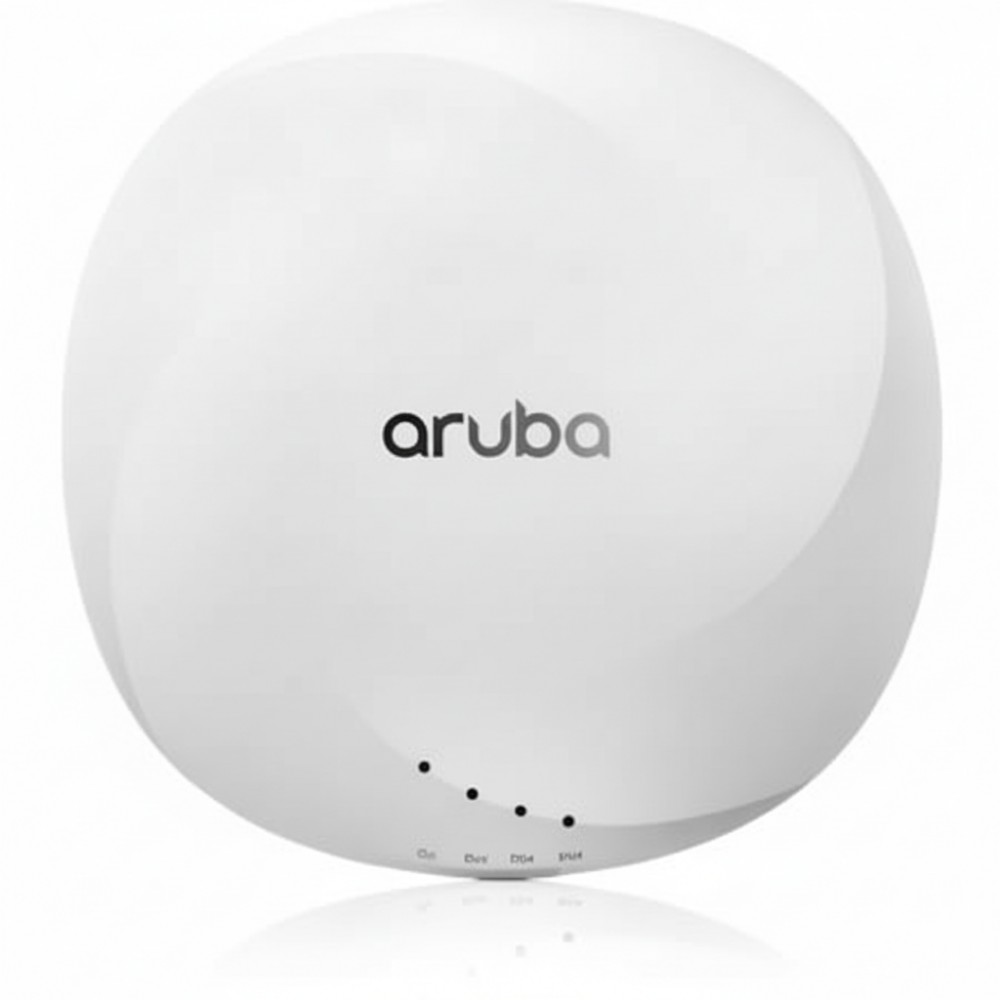

The HPE Aruba AP-535 (model JZ347A) is a dual-radio 802.11ax (Wi-Fi 6) indoor access point built for high-density enterprise campus, branch or educational deployments. It supports 4×4:4 MIMO on both 2.4 GHz and 5 GHz bands and delivers up to approximately 3.55 Gbps aggregate throughput. It mounts easily in ceiling or wall locations and fits into the Aruba unified wired-wireless ecosystem for campus and branch networks.
Key Features
Dual-radio 4×4:4 Wi-Fi 6 with up to ~3.55 Gbps throughput supports heavy client loads in classrooms, auditoriums or open-plan offices.
Two SmartRate Ethernet ports (100/1000/2500/5000 Mb) with PoE support deliver flexible uplink and power options for future-proof installs.
Embedded Bluetooth 5 and Zigbee/802.15.4 radios and USB host port enable IoT and location-services use-cases without separate gateways.
TAA-compliant model (US designation) ensures eligibility for government procurement and secure enterprise environments.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE (Aruba Networking) |
| Part Number | JZ347A |
| Product Type | Indoor Campus Wi-Fi 6 Access Point |
| 1. Radio Configuration | Dual-radio, 4×4:4 MIMO on 2.4 GHz + 5 GHz bands |
| 2. Maximum Throughput | Up to ~3.55 Gbps aggregate across both radios |
| 3. Ethernet/Uplink Ports | 2 × SmartRate RJ-45 ports supporting 100/1000/2500/5000 Mb, PoE-PD capable |
| Management | Aruba Central (cloud) or on-premises controller / Instant mode |
| Power Requirements | 802.3at/at+ PoE (or class-4 PoE) supported; DC option may apply |
| Dimensions & Weight | Approx. 240 × 240 × 57 mm; ~1.27 kg |
| Warranty | Limited lifetime hardware warranty (per Aruba policy) |
