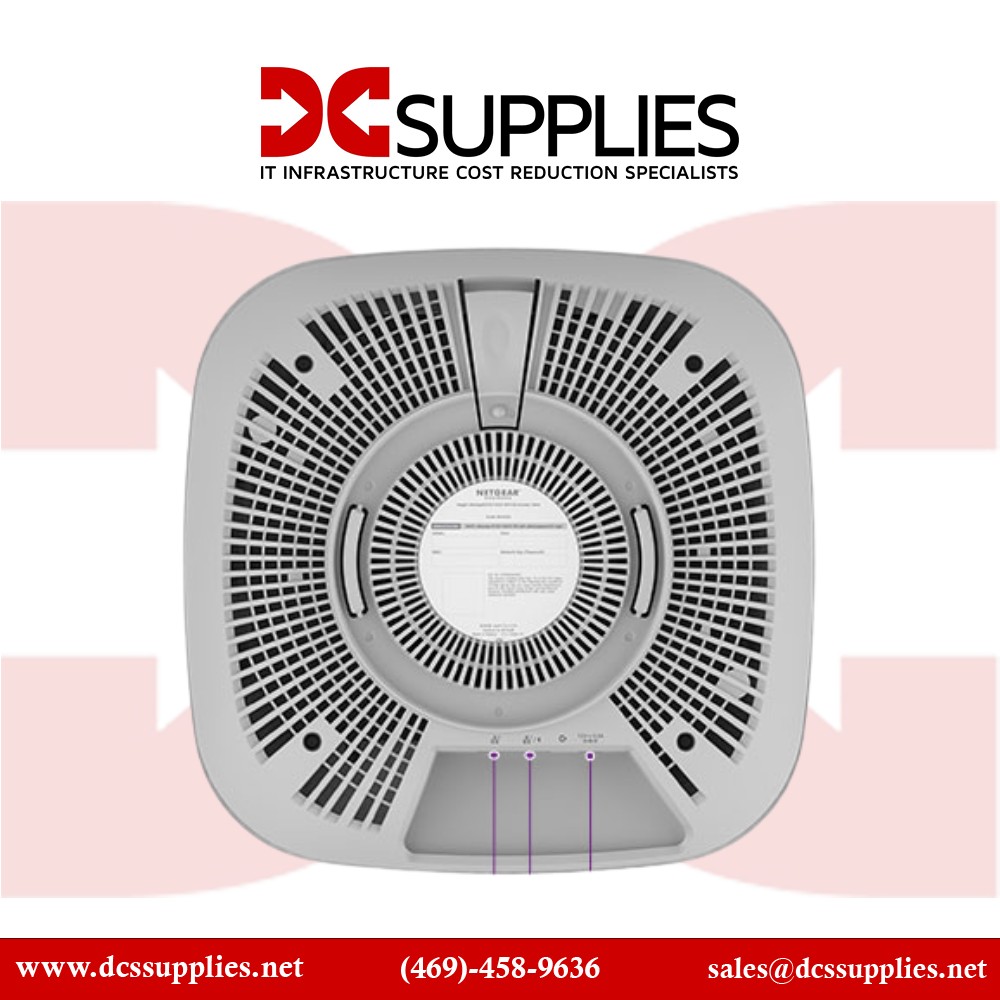

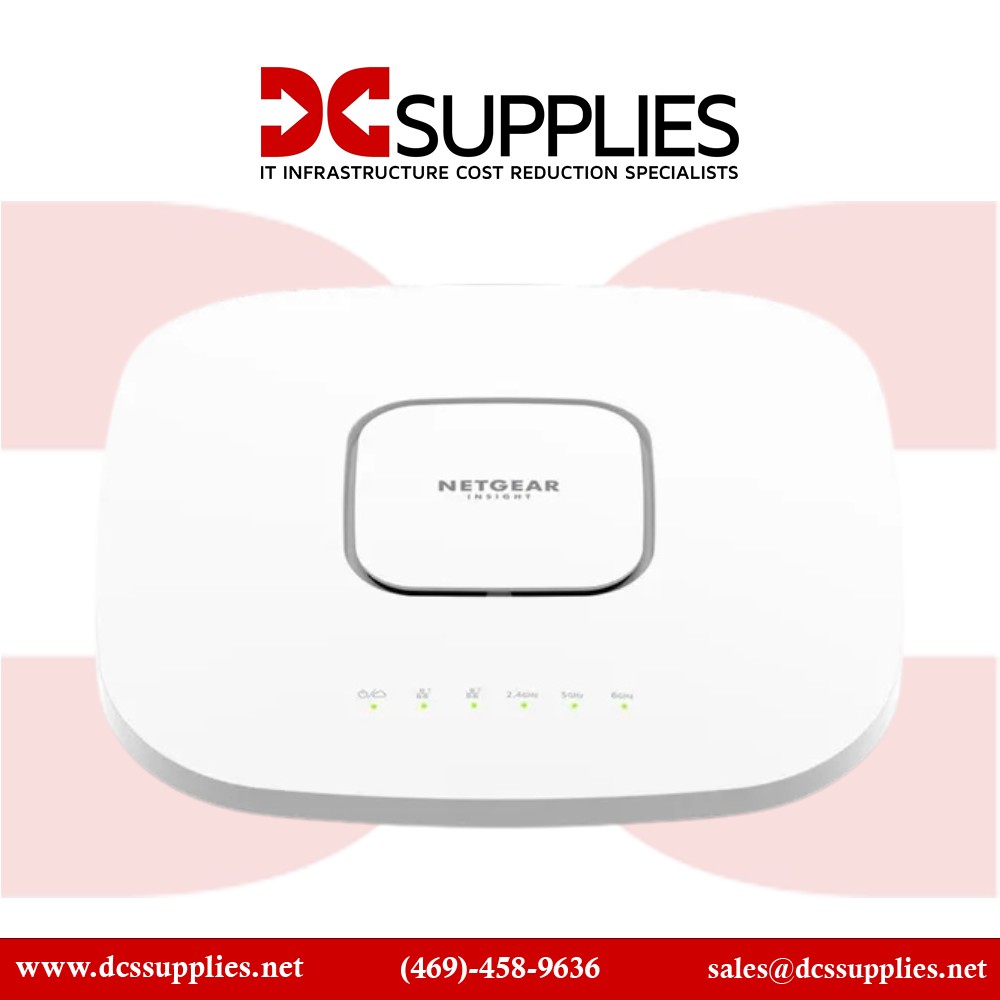

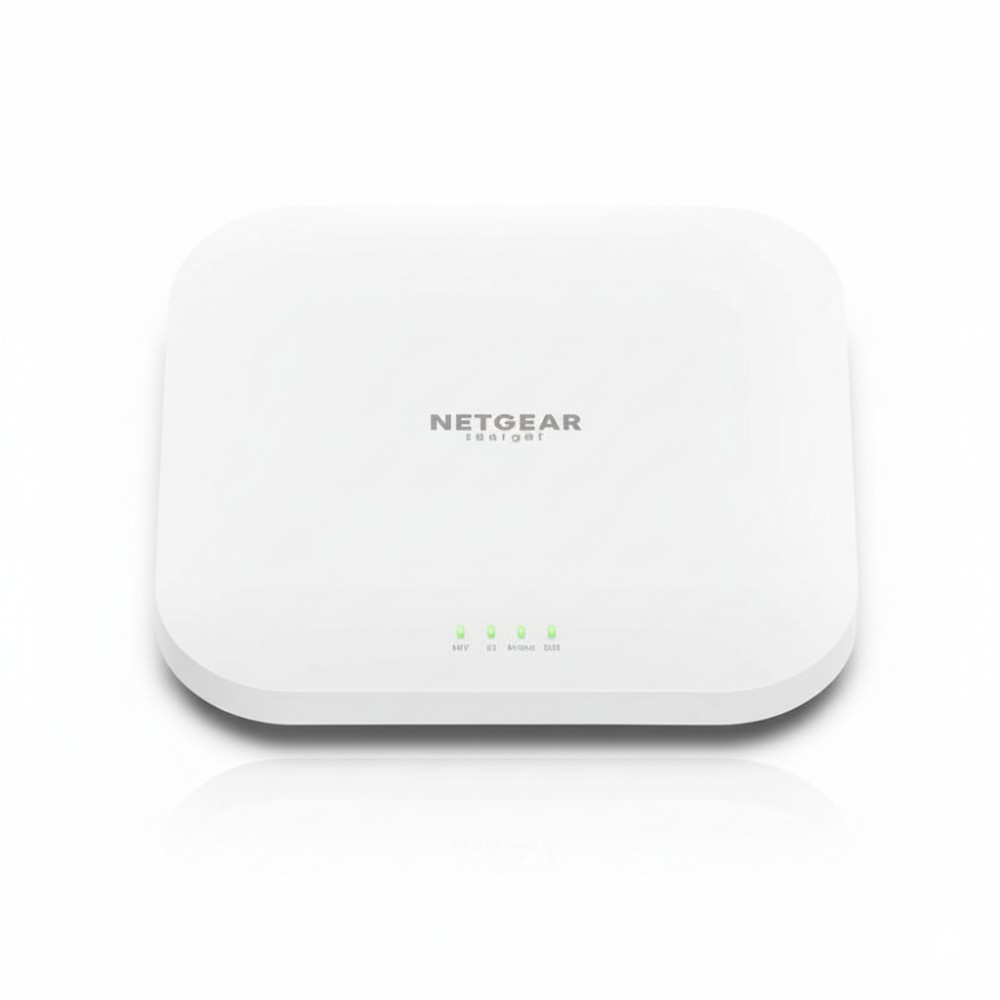

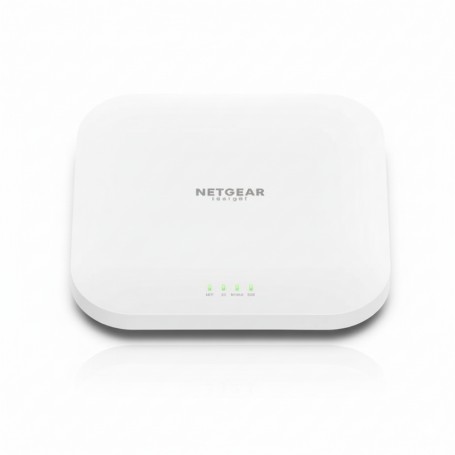

NETGEAR WAX630EP-100NAS Cloud Wireless Access Point

New

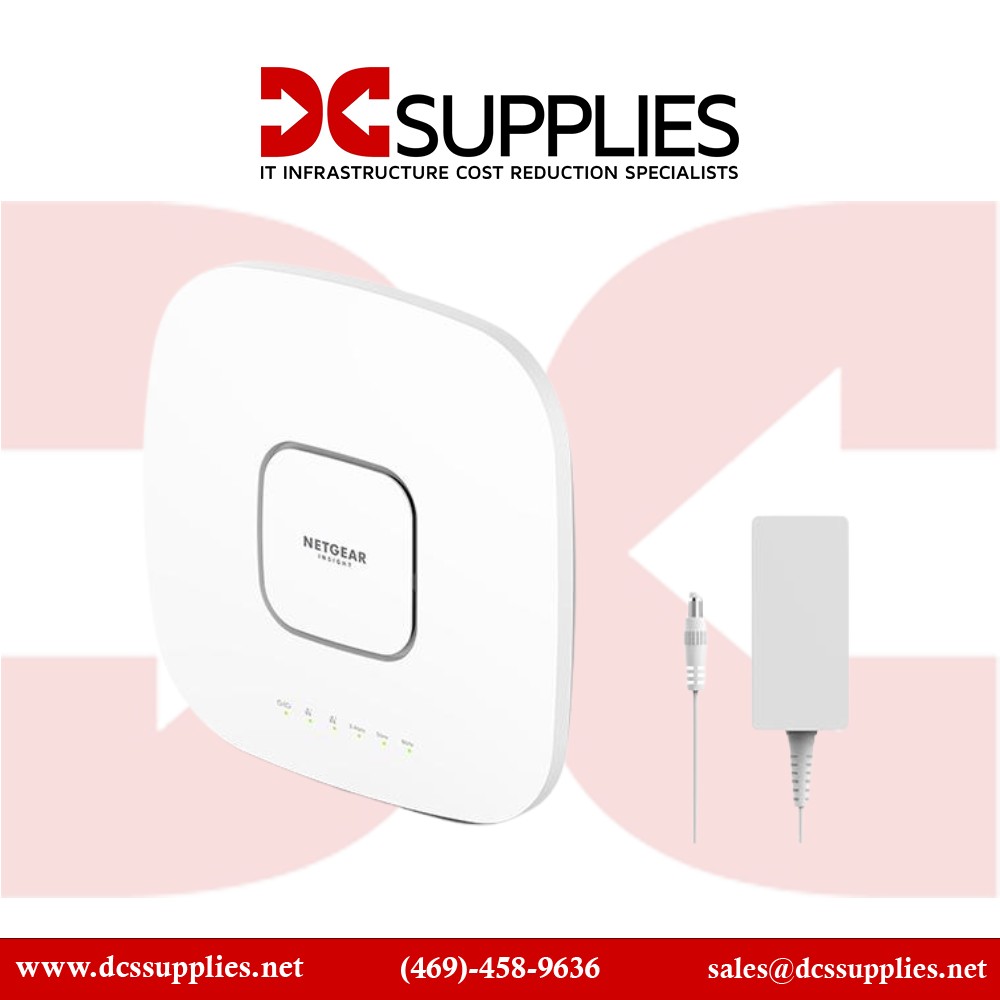

Netgear WAX630EP AXE7800 Tri-Band Multi-Gig Wi-Fi 6E Access Point with Power Adapter
×




  • New

Detailed Specifications

NETGEAR WAX630EP-100NAS

Cloud‑Managed Tri‑Band Wi‑Fi 6E Access Point (AXE7800)

The NETGEAR WAX630EP‑100NAS is a cutting-edge tri-band Wi‑Fi 6E access point tailored for SMBs, classrooms, and high-density environments. With blazing-fast speeds, enterprise-level security, Insight cloud management, and 6 GHz support, it elevates wireless networking to the next level.

Features

With AXE7800 tri-band architecture, the WAX630EP delivers seamless connections across 2.4 GHz (600 Mbps), 5 GHz (4800 Mbps), and the new 6 GHz band (2400 Mbps), significantly increasing spectrum capacity and reducing interference . The onboard 2.5 GbE PoE++ port ensures high-speed backhaul without requiring power adapters, while the secondary Gigabit port supports flexible uplink or device connectivity.

Advanced Options

Enterprise-grade security includes support for multiple SSIDs and VLANs, WPA3 encryption, and guest/IoT network segregation. NSXInsight™ cloud management enables remote deployment, monitoring, and configuration—plus local web interface option for standalone setups .

Product Key Features

  •  Tri‑band Wi‑Fi 6E (AXE7800) with combined throughput up to 7.8 Gbps (600 + 4800 + 2400 Mbps)

  • New 6 GHz band adds capacity and low-latency performance in high-density environments

  •  2.5 GbE PoE++ + 1 GbE port provides high-speed backhaul and flexible deployment

  •  Enterprise-grade security: 8 SSIDs, VLAN tagging, WPA3/WPA2-Enterprise, guest network segmentation

  •  Cloud-managed via Netgear Insight, with 1-year subscription included—local web interface also available

  •  Ceiling/wall mounts included, ideal for offices, classrooms, or high-traffic spaces

Reliability & Performance

Industry reviewers confirm the WAX630EP is a solid tri-band AP with outstanding 6 GHz performance—ideal in high-density indoor spaces . Real-world testing highlights stable throughput and extensive configurability via Insight or local GUI. Reddit users note “range has been the best I have experienced … no failures for over 6 months” . Improvements have been made through firmware updates to address occasional speed issues.

Key Features :

    • Tri‑band AXE7800 Wi‑Fi 6E (600 + 4800 + 2400 Mbps)

    • 2.5 GbE PoE++ + 1 GbE pass-through

    • 8 SSIDs with VLAN support, WPA3/WPA2-Enterprise

    • Cloud-managed via Insight with 1-year subscription

    • Local web UI option

    • Ceiling or wall mount kit included

SpecificationDetail
Model Number WAX630EP‑100NAS
Product Type Tri‑Band Wi‑Fi 6E Access Point (AXE7800)
Wi‑Fi Standard IEEE 802.11ax (Wi‑Fi 6E)
Total Throughput Up to 7.8 Gbps (600 + 4,800 + 2,400 Mbps)
Bands 2.4 GHz, 5 GHz, 6 GHz
Streams 4×4 MU‑MIMO across bands
Ethernet Ports 1 × 2.5 GbE PoE++; 1 × 1 GbE LAN
PoE Support 802.3bt Type 3 (60 W), also 802.3at/af compatible
SSIDs / VLANs Up to 8 SSIDs; VLAN tagging supported
Security WPA3/WPA2-Enterprise, guest network isolation
Management Netgear Insight (cloud) + local web UI
Mounting Kit Ceiling + wall included
Dimensions (L×W×H) 268.3 × 266.6 × 55.5 mm (10.6 × 10.5 × 2.2 in)
Weight 1.05 kg (2.31 lb)
