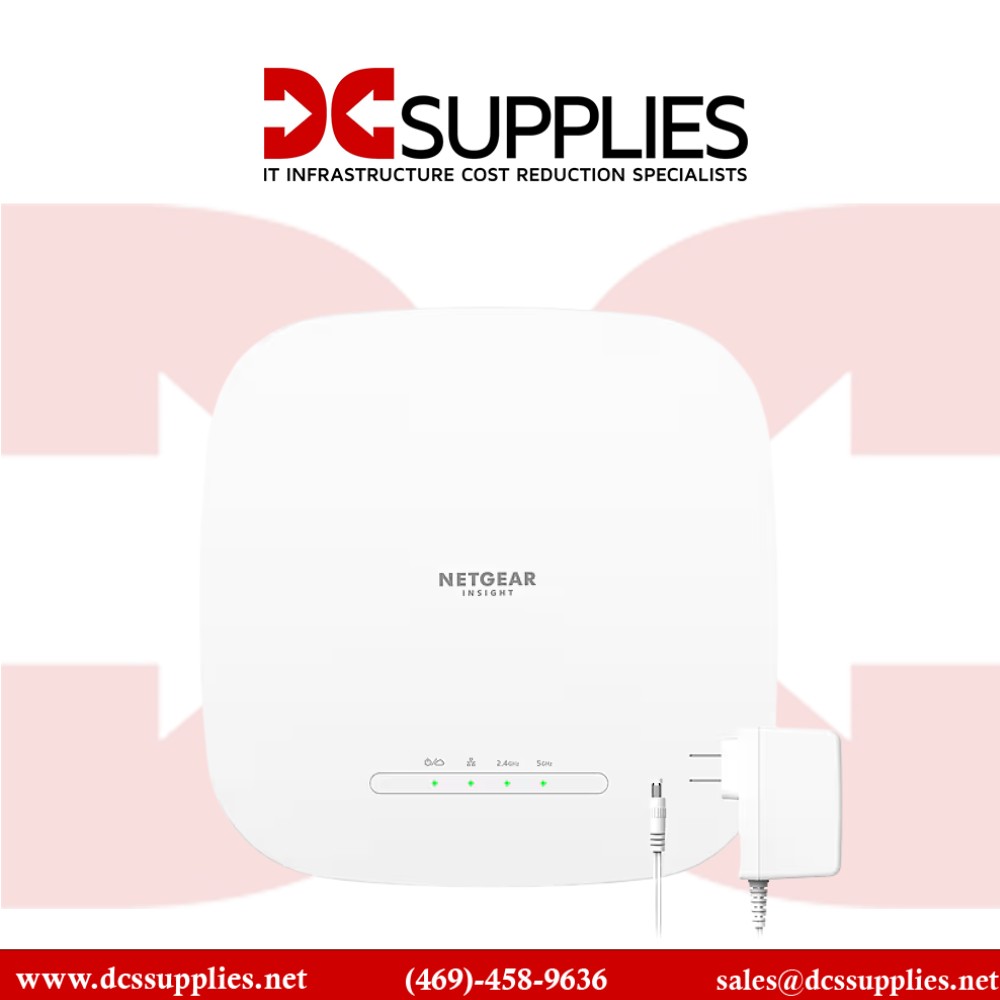

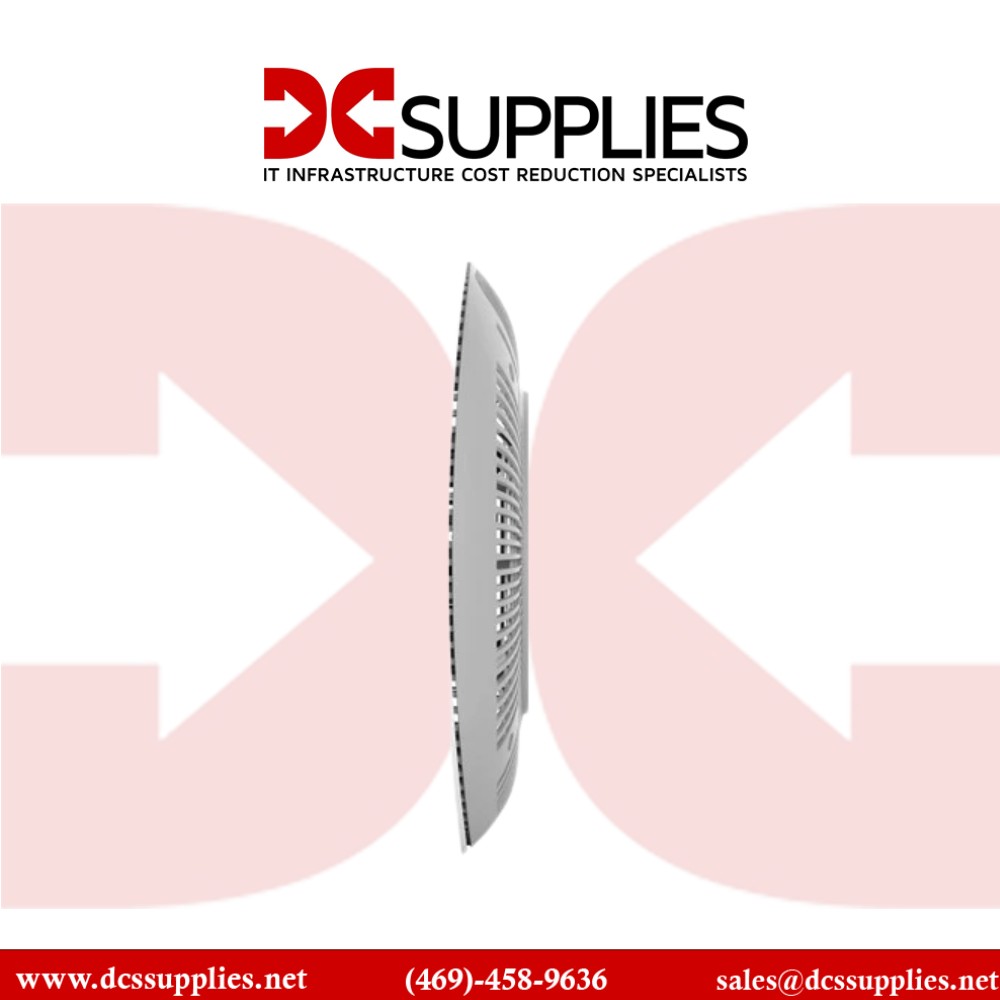

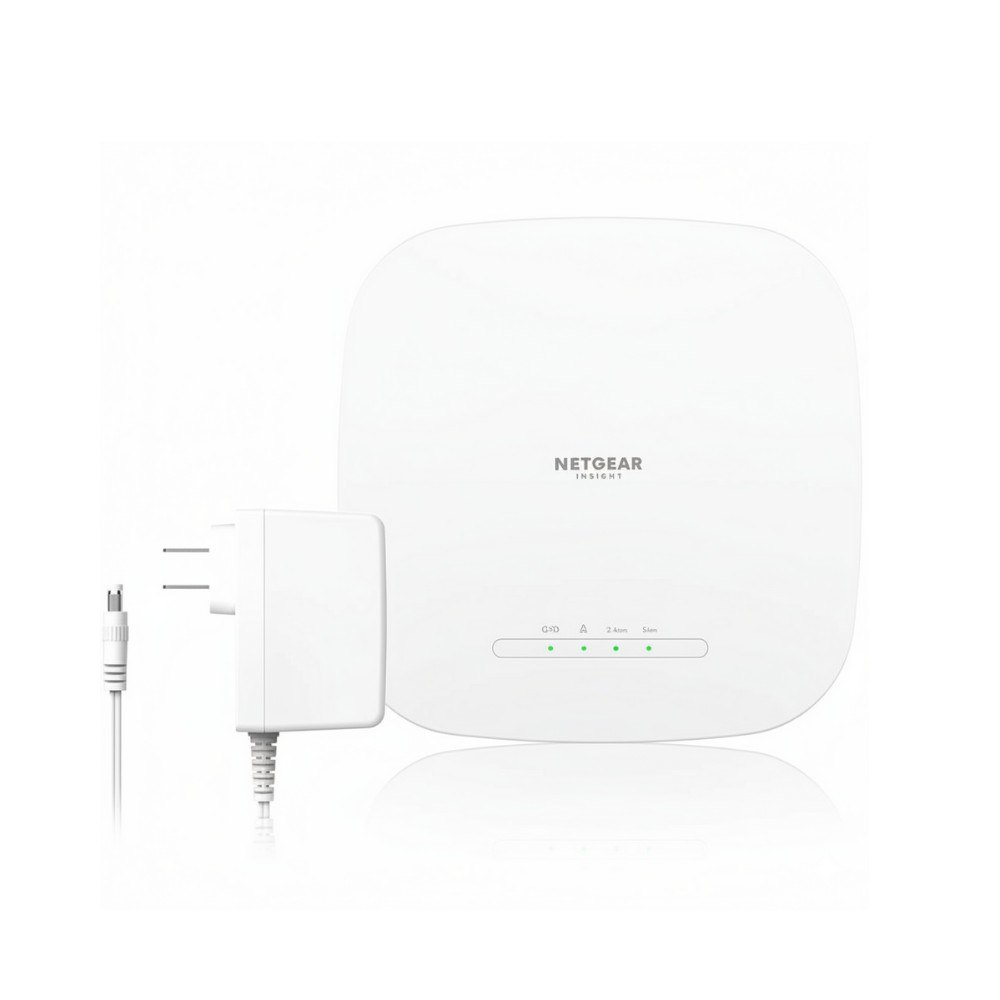

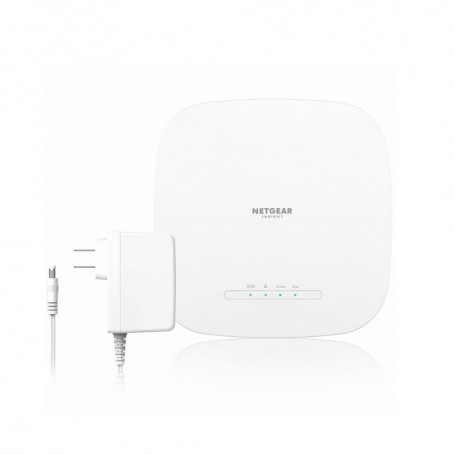

NETGEAR WAX615PA-100NAS Cloud Managed Wireless Access Point

New

In Stock

NETGEAR WAX615PA-100NAS Cloud Managed Wireless...

×




$99.99

  • New

Detailed Specifications

NETGEAR WAX615PA-100NAS

Cloud Managed Wireless Access Point

The NETGEAR WAX615PA‑100NAS is a powerful, business-class dual-band WiFi 6 AP delivering AX3000 speeds, ideal for schools, offices, small hotels, and event venues. It combines multi-gigabit uplink, robust security, and simplified Insight-based cloud management for smart, scalable deployment.

Features

Built on WiFi 6 Release 2, this 2×2 dual-band AP achieves up to 3 Gbps aggregate throughput by doubling the 5 GHz channel width to 160 MHz, significantly improving client capacity and speed over legacy WiFi 6 R1 models . It includes both PoE+ and optional AC power, and supports wall or ceiling installations with built-in mounting hardware.

Advanced Options

Managed via the NETGEAR Insight cloud platform (1‑yr included) or a local web GUI, this AP offers remote provisioning, monitoring, and firmware control. It integrates seamlessly with Insight-managed switches and other APs (WAC510, WAX610/620/630), enabling scalable and mesh-capable WiFi networks.

Product Key Features

  •  AX3000 Dual‑Band WiFi 6 – Up to 3 Gbps (2×2 on 2.4 GHz + 5 GHz), exploiting 160 MHz channels

  •  2.5 GbE PoE+ Uplink – Multi‑gig backhaul and power over a single cable

  •  Insight Cloud Management – Includes 1‑year subscription with optional local GUI

  •  High‑Density Support – Serves up to 256 users and ~60 concurrent clients

  •  Instant Mesh Capable – Works wirelessly with Insight APs like WAX610/620/630

  •  Enterprise‑Grade Security – WPA3, 8 SSIDs with VLANs, MU‑MIMO, OFDMA, Beamforming+, BSS Coloring, TWT

Reliability & Performance

Equipped to handle the demands of high-density environments, the WAX615PA supports up to 256 total users and 60 active clients, delivering stable connectivity under load . Its WiFi 6 optimizations—MU‑MIMO, OFDMA, Beamforming, BSS Coloring, and TWT—boost performance, reduce interference, and prolong client battery life The durable, fanless design ensures quiet operation—ideal for noise-sensitive spaces.

Key Features (Bullet List)

  • AX3000 dual-band WiFi 6 (2×2 @ 2.4/5 GHz, 160 MHz)

  • 2.5 GbE PoE+ uplink; optional AC power

  • Cloud and local management (NETGEAR Insight, 1‑yr included)

  • Supports up to 256 users and ~60 concurrent clients

  • Instant mesh with Insight APs

  • 8 SSIDs with VLAN support, WPA3 encryption

  • WiFi 6 advanced features: MU‑MIMO, OFDMA, Beamforming+, BSS Coloring, TWT

  • Wall/ceiling mountable; fanless design

SpecificationDetails
Model Number WAX615PA‑100NAS
Product Type Dual-Band WiFi 6 Access Point (AX3000)
WiFi Standard IEEE 802.11ax (WiFi 6 / Release 2)
Max Speed 2.4 GHz: 600 Mbps; 5 GHz: 2400 Mbps (Total 3000 Mbps)
Radios Dual 2×2 (2.4 GHz & 5 GHz with 160 MHz)
Ethernet Port 1× 2.5 GbE PoE+
PoE Support 802.3at/af PoE+ (30 W)
Client Capacity Up to 256 users, ~60 concurrent devices
SSIDs & VLANs 8 SSIDs with VLAN tagging
Security WPA3/WPA2/WPA, WPA3-Enterprise, guest isolation, rogue AP suppression
Mounting Ceiling/wall mount hardware included
Dimensions 241.5 × 241.5 × 40.2 mm (9.5″ × 9.5″ × 1.6″)
Weight ~727 g (1.6 lb)
Management Options NETGEAR Insight Cloud (1-yr subscription), local web GUI
