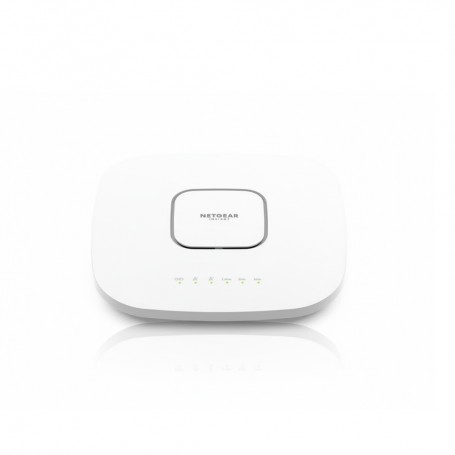

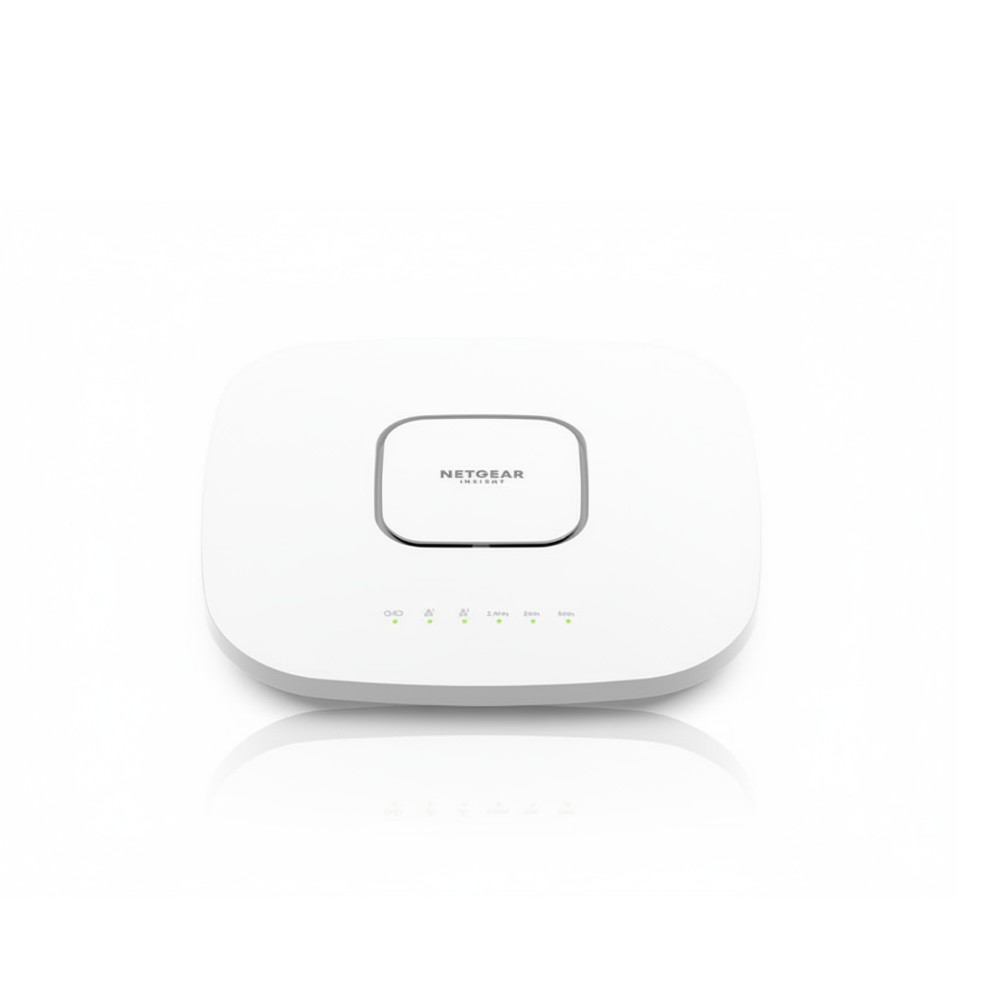

NETGEAR WAX630E-100NAS Cloud Managed Wireless Access Point

New

Netgear WAX630E AXE7800 Tri-Band Multi-Gig Wi-Fi 6E Access Point
×




  • New

Detailed Specifications

NETGEAR WAX630E-100NAS

Insight‑Managed WiFi 6E Tri‑Band Access Point – AXE7800, 2.5 GbE PoE+

The NETGEAR WAX630E-100NAS is a powerful, tri-band WiFi 6E access point tailored for small-to-medium businesses requiring ultra-fast wireless access and easy centralized management. With cloud-based Insight control and robust security, it’s perfect for offices, hotels, campuses, and event venues.

Features

Equipped with WiFi 6 Release 2 (802.11ax), the WAX630E uses a 4×4 setup on each band, delivering up to 7.8 Gbps total throughput—600 Mbps on 2.4 GHz, 4.8 Gbps on 5 GHz, and 2.4 Gbps on 6 GHz—providing broad capacity and minimal congestion with 160 MHz channel support . The integrated 2.5 GbE PoE++ port simplifies deployment, requiring only one cable for power and high-speed backhaul, while the secondary 1 GbE port enables wired device connections.

Advanced Options

The WAX630E supports mesh with other Insight access points like WAX610/WAC540/WAX620—ideal for expanding coverage without needing Ethernet backhaul . Managed via NETGEAR Insight, administrators gain remote control over provisioning, monitoring, and settings through web or mobile, using the included subscription,

Product Key Features

  •  AXE7800 Tri‑Band WiFi 6E: Delivers up to 7.8 Gbps combined across 2.4 GHz, 5 GHz, and 6 GHz ✨ ⚙️ 2.5 GbE PoE++ Uplink + 1 GbE LAN: Single-cable deployment with high-speed wired connectivity

  •  Cloud & Local Management: Includes 1-year Insight subscription with easy deployment and monitoring

  •  High-Density Support: Supports up to 600 clients and 8 SSIDs with VLANs

  •  Mesh-Capable: Automatically forms wireless backhaul mesh with other Insight-managed APs

Reliability & Performance

Designed for high-density environments, WAX630E supports up to 600 clients, ideal for crowded venues. WiFi 6 features like MU‑MIMO, OFDMA, Beamforming, BSS Coloring, and Target Wake Time maximize efficiency and minimize interference Security includes WPA3, rogue AP detection, and VLAN segmentation across 8 SSIDs. The fanless metal housing ensures silent, durable operation with easy ceiling or wall mounting.

Key Features :

  • AXE7800 tri-band WiFi 6E (4×4×4)

  • 2.5 GbE PoE++ uplink + 1 GbE LAN port

  • Insight-managed (Cloud & local GUI, 1-year subscription)

  • Supports up to 600 clients; 8 SSIDs with VLAN

  • Mesh-capable with Insight APs

  • WPA3, rogue AP detection, BSS Coloring, MU‑MIMO, OFDMA, TWT

  • Fanless, ceiling/wall mountable

SpecificationDetails
Model Number WAX630E‑100NAS
Product Type Tri‑Band WiFi 6E Access Point (Insight-managed)
WiFi Standard IEEE 802.11ax (WiFi 6E, Release 2)
Aggregate Speed Up to 7.8 Gbps (600 + 4800 + 2400 Mbps)
Ethernet Ports 1× 2.5 GbE PoE++; 1× 1 GbE LAN
Power Method PoE++ (802.3bt); optional 12 V DC adapter
Client Capacity Up to 600 users
SSIDs & VLANs 8 SSIDs with VLAN tagging
Security Features WPA3, rogue AP detection, WPA2 Enterprise
Mesh Support Yes (with WAX610, WAX620, WAX630, WAC540, WAC564)
WiFi Enhancements MU‑MIMO, OFDMA, Beamforming, BSS Coloring, TWT
Dimensions 266.6 × 268.3 × 55.5 mm (10.49 × 10.56 × 2.18 in)
Weight 2.31 lb (1,050 g)
