Detailed Specifications

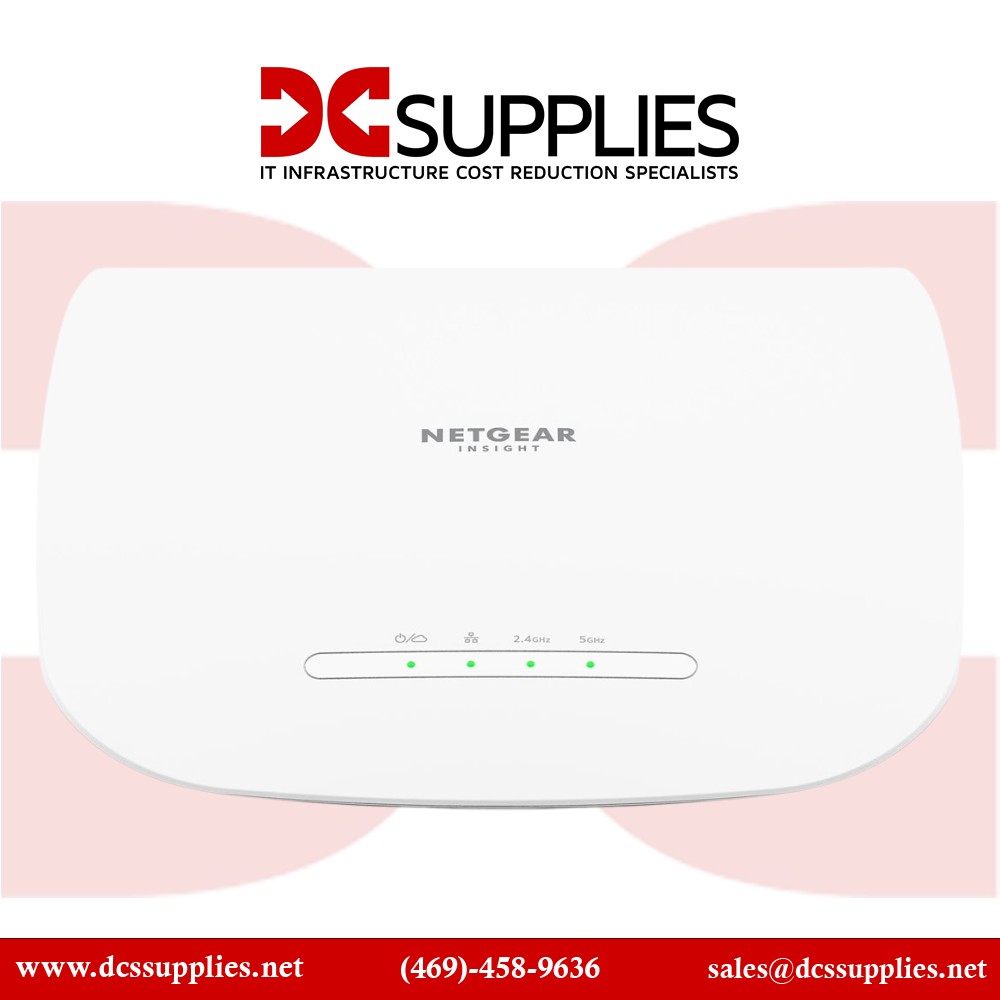

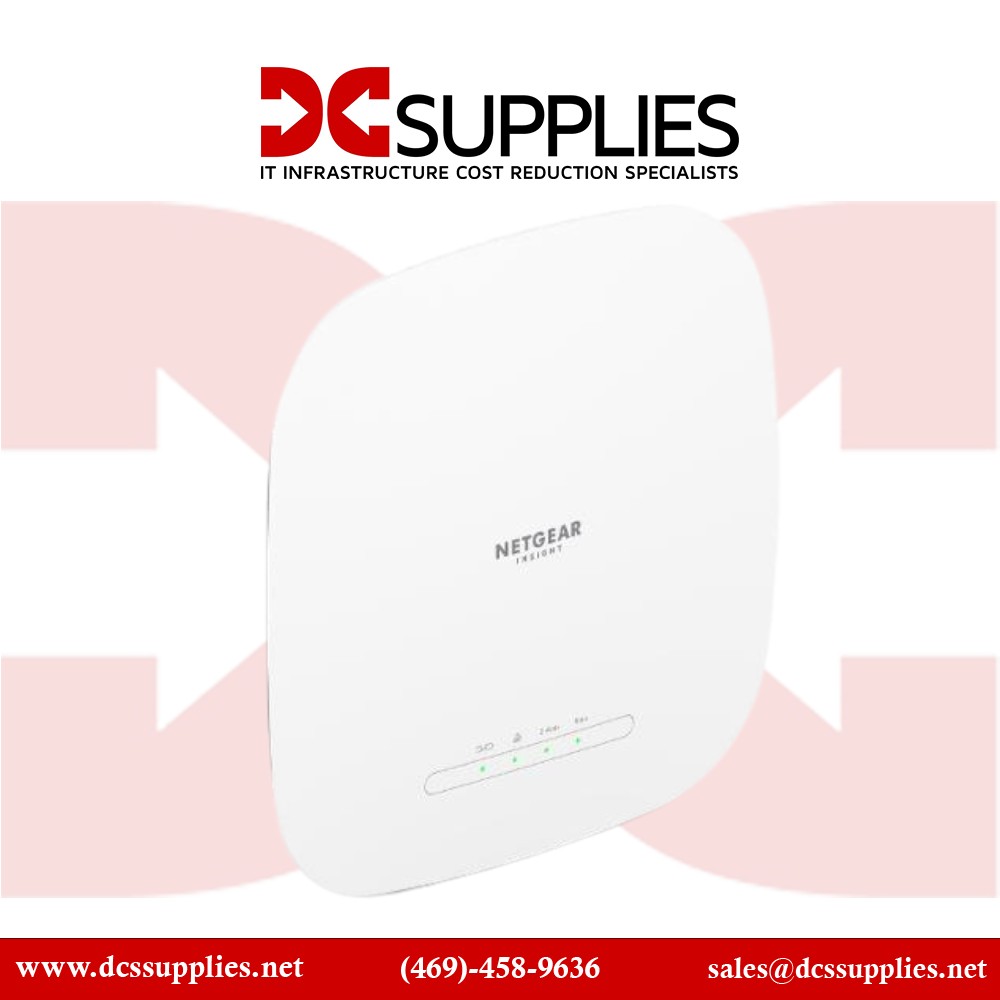

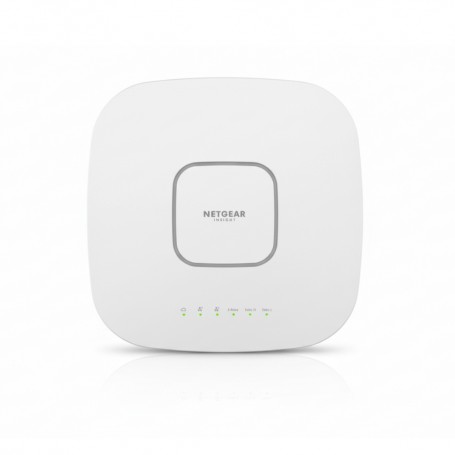

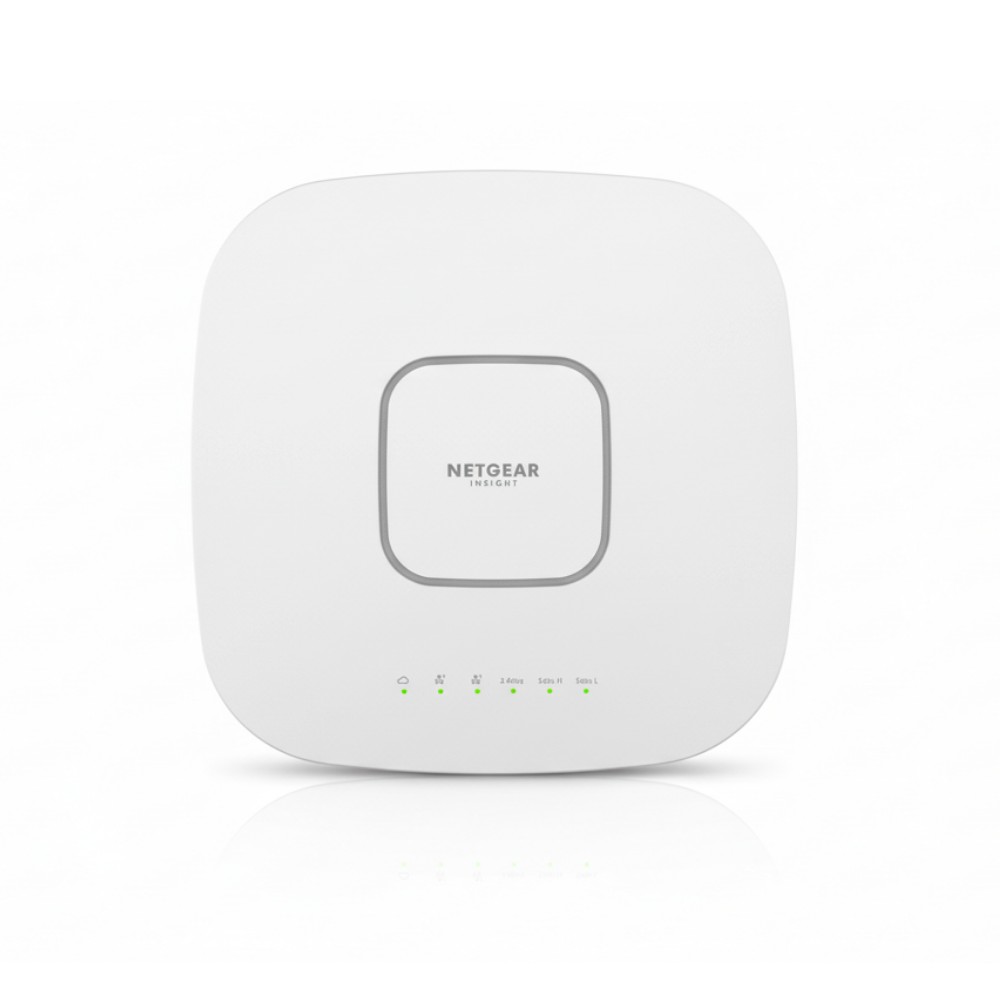

Netgear WAX630-100NAS - AX6000 Tri-Band PoE WiFi 6 Access Point
Overview :
The Netgear WAX630-100NAS is a tri-band WiFi 6 access point designed for small to medium-sized businesses requiring high-density wireless coverage. It supports up to 600 client devices and offers an aggregate throughput of 6 Gbps across three radios. The device features a 2.5G Ethernet port with PoE++ and a 1G passthrough port, facilitating flexible deployment options. Ideal for environments like offices, hotels, and conference centers, it supports seamless mesh networking and is managed via Netgear Insight.
Key Features
Tri-band WiFi 6 (AX6000) with 12 streams
2.5G PoE++ and 1G passthrough Ethernet ports
Supports up to 600 client devices
Managed via Netgear Insight with 1-year subscription
Specifications :
| Specification | Details |
|---|
| Brand | Netgear |
| Part Number | WAX630-100NAS |
| Product Type | Tri-Band WiFi 6 Access Point |
| WiFi Standard | IEEE 802.11ax (WiFi 6) |
| Frequency Bands | 2.4 GHz, 5 GHz (Low), 5 GHz (High) |
| Radio Configuration | 4x4 per band (12 streams total) |
| Maximum Throughput | 6 Gbps (2.4 GHz: 1.2 Gbps; 5 GHz ×2: 2.4 Gbps each) |
| Ethernet Ports | 1× 2.5G PoE++ (802.3bt), 1× 1G LAN passthrough |
| PoE Power | PoE++ (High-power PoE) |
| Client Capacity | Up to 600 devices |
| SSIDs/VLANs | 8 SSIDs with VLAN tagging |
| Security Features | WPA3, rogue AP detection, BSS Coloring |
| Wireless Enhancements | MU-MIMO, OFDMA, Beamforming, TWT |

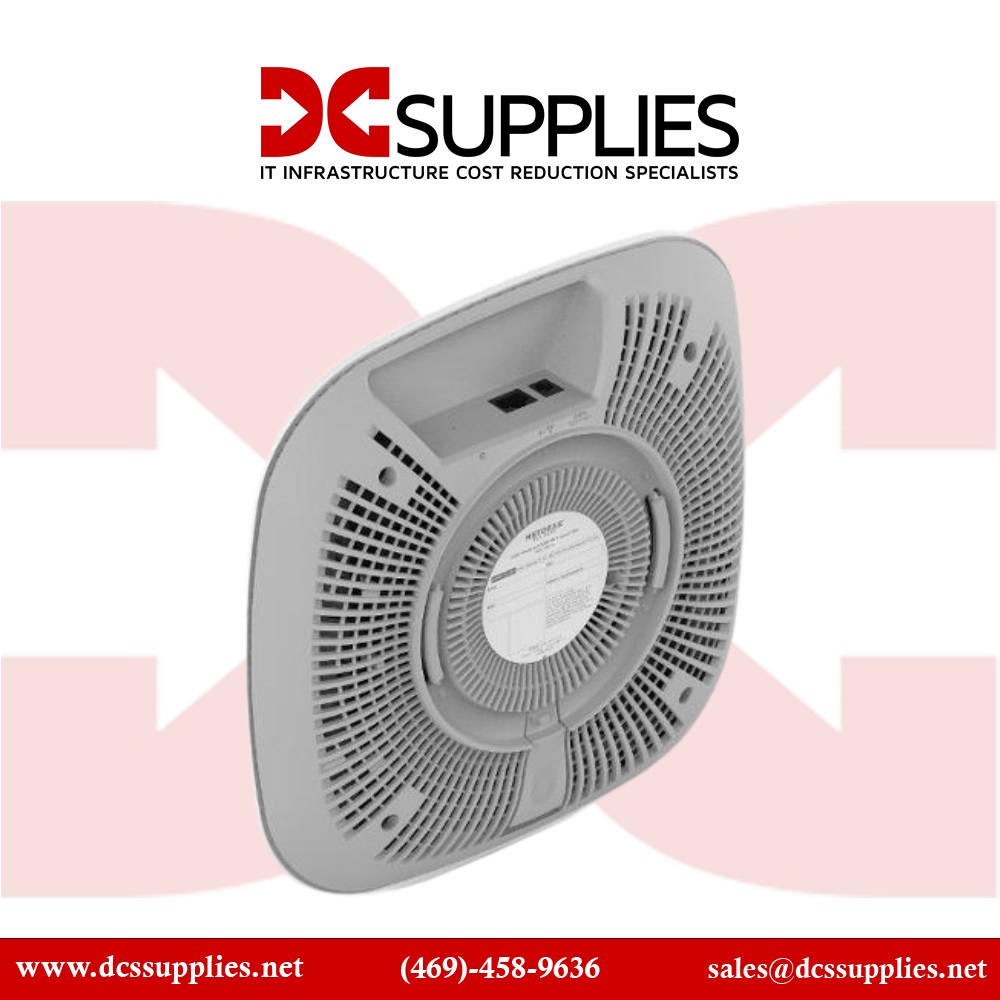

| Mounting Options | Ceiling/wall mountable; silent fanless metal housing |
| Dimensions | ~267 × 268 × 56 mm (10.5″ × 10.6″ × 2.2″) |
| Weight | ~956 g (2.11 lb) |
