Detailed Specifications

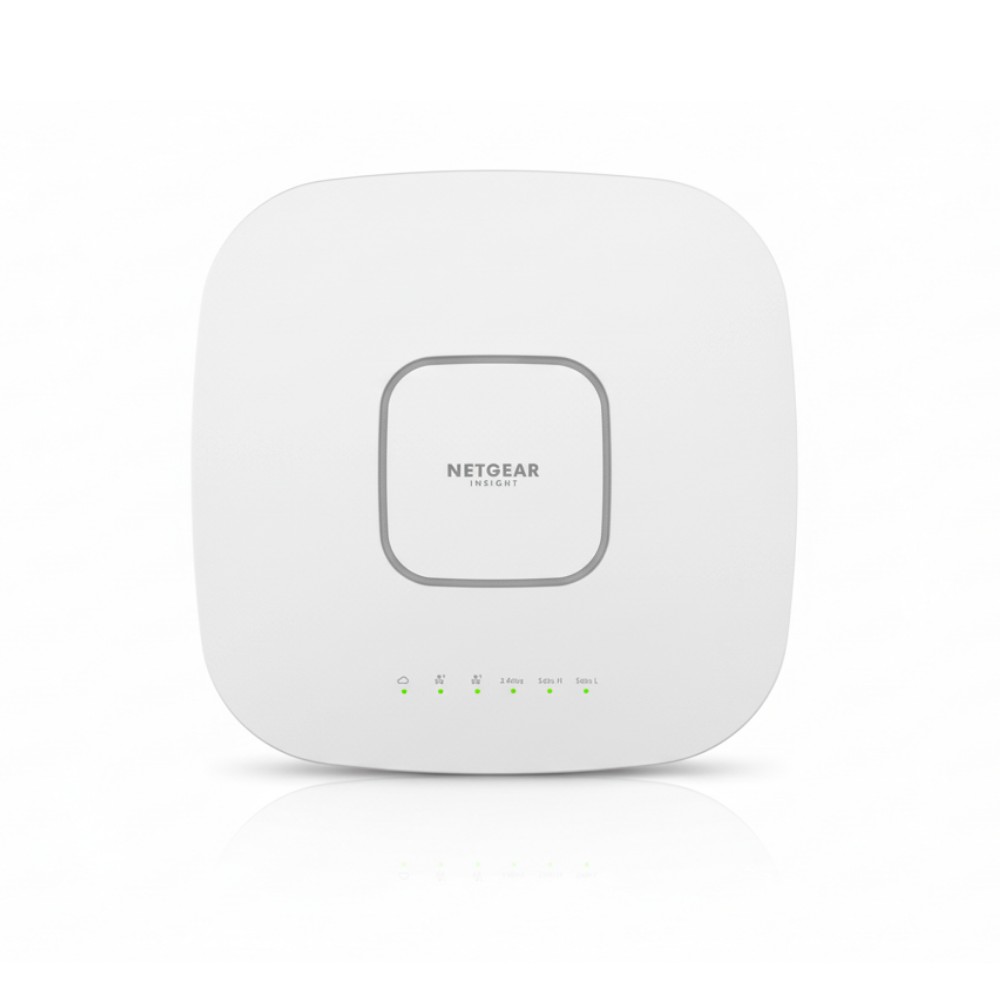

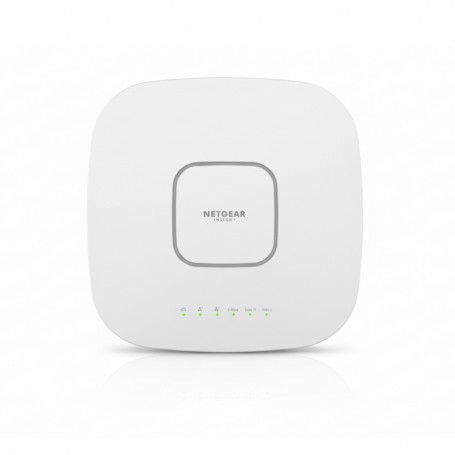

Netgear WAX630PA-100NAS - Tri-Band WiFi 6 Access Point
Overview
The Netgear WAX630PA-100NAS is a high-performance, tri-band WiFi 6 access point designed for small to medium-sized businesses. It delivers up to 6 Gbps aggregate throughput, supporting high-density environments such as schools, hotels, and conference centers. Equipped with a 2.5 Gbps Ethernet port and PoE++ support, it offers flexible and efficient deployment options. Managed via the Netgear Insight cloud platform, it provides centralized control without the need for additional hardware.
Key Features
Tri-band 4x4 WiFi 6 design with 12 spatial streams
2.5 Gbps Ethernet port with PoE++ support
Supports up to 8 SSIDs and VLANs for network segmentation
Includes 1-year Netgear Insight subscription for cloud management
Technical Specifications
| Specification | Details |
|---|
| Brand | Netgear |
| Part Number | WAX630PA-100NAS |
| Product Type | Tri-Band WiFi 6 Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax |
| Frequency Bands | 2.4 GHz, 5 GHz (2 bands) |
| MIMO Technology | 4x4 MU-MIMO |
| Total Throughput | Up to 6 Gbps |
| Ethernet Ports | 1 x 2.5 Gbps, 1 x 1 Gbps |
| PoE Support | Yes (PoE++ for 2.5 Gbps port) |
| Mounting Options | Wall or ceiling mountable |
| Security Protocols | WPA3, WPA2-Enterprise, WPA3-Enterprise |
| Management Platform | Netgear Insight |
| Included Subscription | 1-year Netgear Insight subscription |
