Detailed Specifications

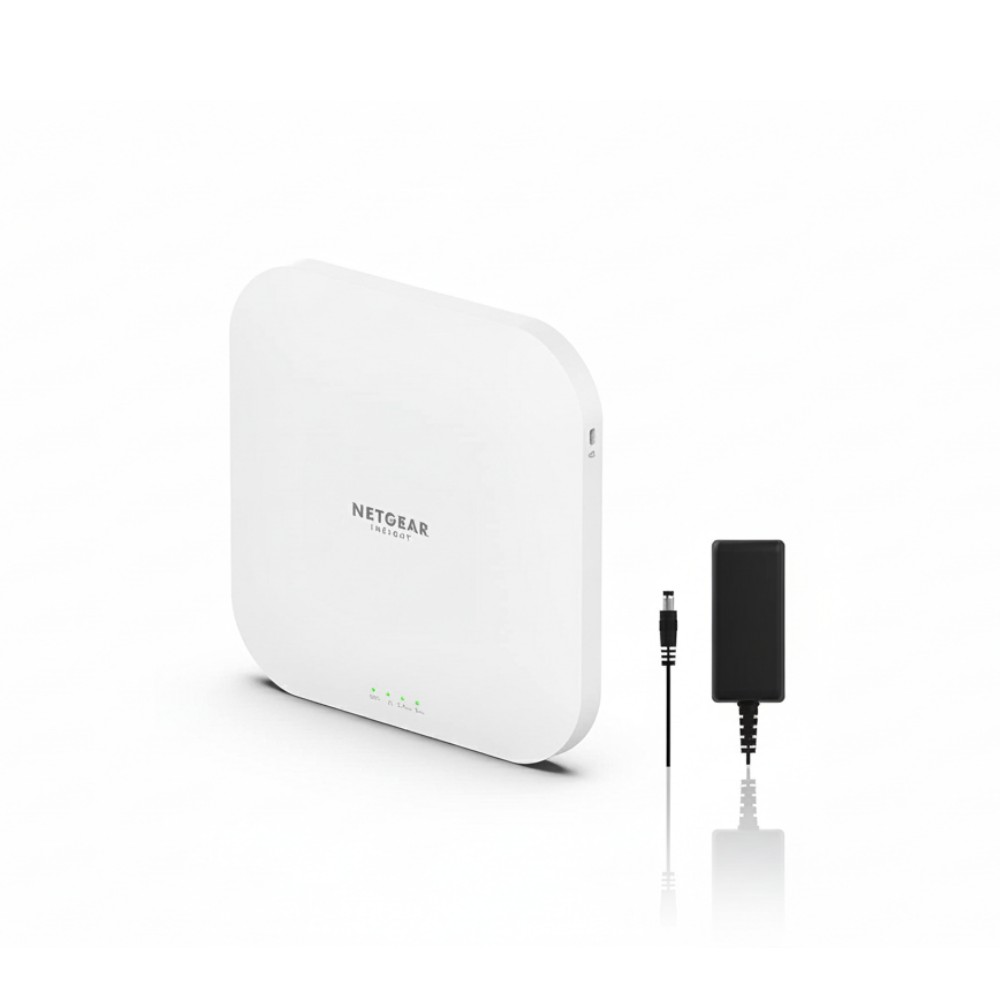

NETGEAR WAX620PA-100NAS AX3600 Dual-Band WiFi 6 Access Point
Overview
The NETGEAR WAX620PA-100NAS is a high-performance dual-band WiFi 6 access point designed for small to medium-sized businesses. It delivers up to 3.6 Gbps total WiFi throughput, utilizing a 2.5Gbps Ethernet port with Power over Ethernet (PoE+) support. The device features a 4x4 antenna configuration for both 2.4GHz and 5GHz bands, ensuring optimal coverage and capacity. Ideal for high-density environments, the WAX620PA supports up to 256 client devices simultaneously. It is managed via the NETGEAR Insight cloud platform, offering centralized control and monitoring.
Key Features
Dual-band 4x4 design with 8 streams
Up to 3.6 Gbps total WiFi throughput
2.5Gbps Ethernet port with PoE+ support
Supports up to 256 client devices
Managed via NETGEAR Insight cloud platform
Technical Specifications
| Specification | Value |
|---|
| Brand | NETGEAR |
| Part Number | WAX620PA-100NAS |
| Product Type | Dual-Band WiFi 6 Access Point |
| WiFi Standard | 802.11ax (WiFi 6) |
| Frequency Bands | 2.4 GHz, 5 GHz |
| Max Throughput | 1.2 Gbps (2.4 GHz), 2.4 Gbps (5 GHz) |
| Antenna Configuration | 4x4 (4 transmit, 4 receive) |
| Ethernet Ports | 1 × 2.5G Ethernet (PoE+) |
| Power Input | IEEE 802.3at/af PoE+ |
| Mounting Options | Ceiling or wall mount |
| Operating Temperature | 0°C to 40°C |
| Management Interface | NETGEAR Insight cloud platform |
| Security Protocols | WPA3, WPA2, WPA3-Enterprise |
| Max SSIDs Supported | 8 |
| Max Clients Supported | 256 |
