Detailed Specifications

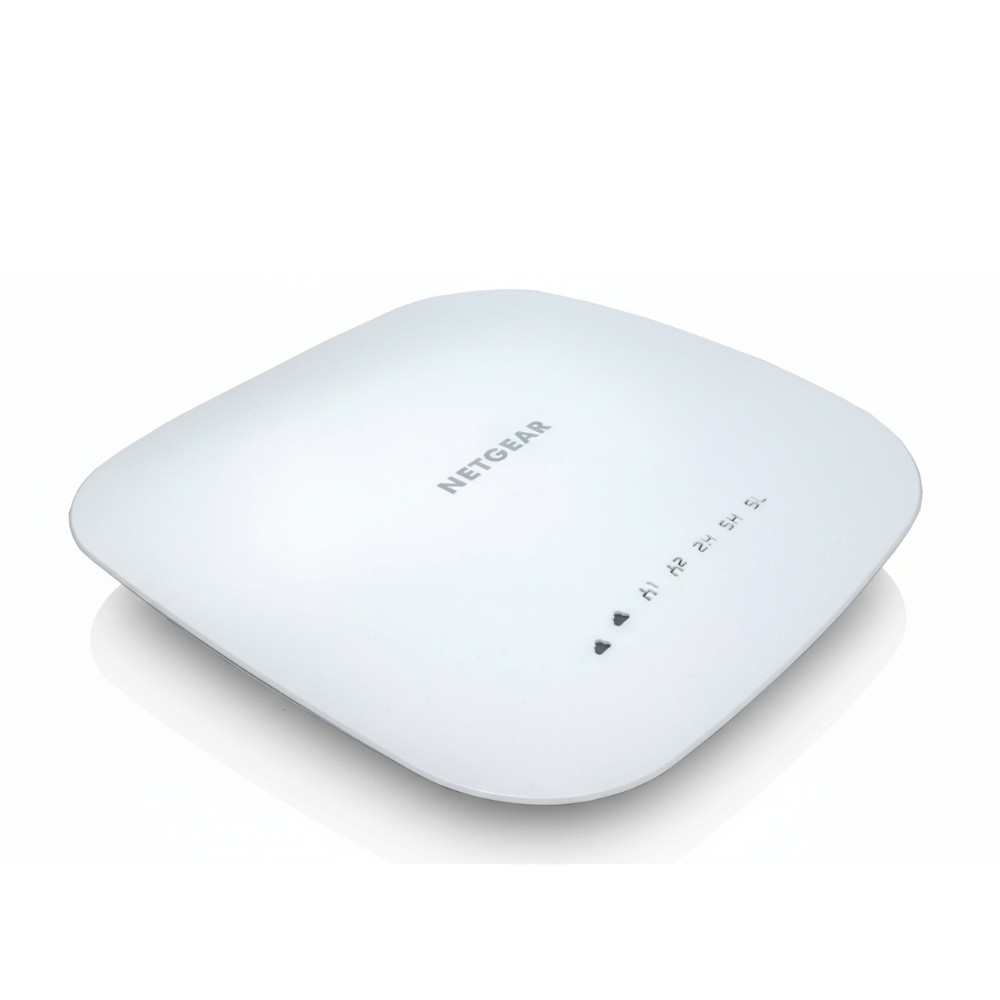

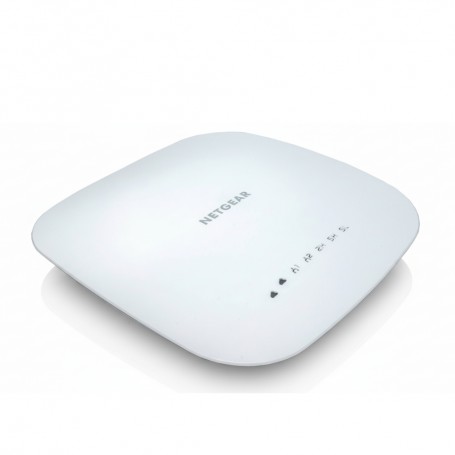

NETGEAR WAC540-100NAS - Tri-band AC3000 Insight Access Point
Overview
The NETGEAR WAC540-100NAS is a tri-radio wireless access point managed via NETGEAR Insight, intended for businesses needing dense WiFi coverage and centralized control. It supports simultaneous 2.4 GHz and two 5 GHz radios, delivering combined throughput up to ~2.93 Gbps. It fits in enterprise branch offices, campuses, and hospitality deployments requiring strong wireless backhaul and high client density. It integrates seamlessly with other NETGEAR Insight-managed devices for cloud visibility and unified management.
Key Features
Tri-band WiFi: 4×4 + 2×2 + 2×2 radios
Up to 2.93 Gbps aggregate throughput
PoE+ or DC power support
Managed via NETGEAR Insight cloud
Technical Specifications
| Specification | Details |
|---|
| Brand | NETGEAR |
| Part Number | WAC540-100NAS |
| Product Type | Insight Managed Tri-band Access Point |
| WiFi Standard | IEEE 802.11ac Wave 2 |
| Radios & Spatial Streams | Radio1: 4×4 (5 GHz), Radio2: 2×2 (5 GHz), Radio3: 2×2 (2.4 GHz) |
| Max Aggregate Throughput | ~2.93 Gbps |
| Ethernet Ports | 2 × Gigabit RJ-45 |
| Power Options | PoE+ (802.3at), or DC adapter |
| Maximum Power Consumption | 25.5 W |
| Client Support | Up to 600 concurrent clients |
| Link Aggregation | Yes (dual Ethernet) |
| Management | NETGEAR Insight (cloud/web) |
| Dimensions | 9.51" × 9.51" × 1.58" |
| Weight | 1.66 lb |
