Detailed Specifications
HPE JZ173A - AP-375 Outdoor WiFi 5 Dual-Band Access Point
Overview

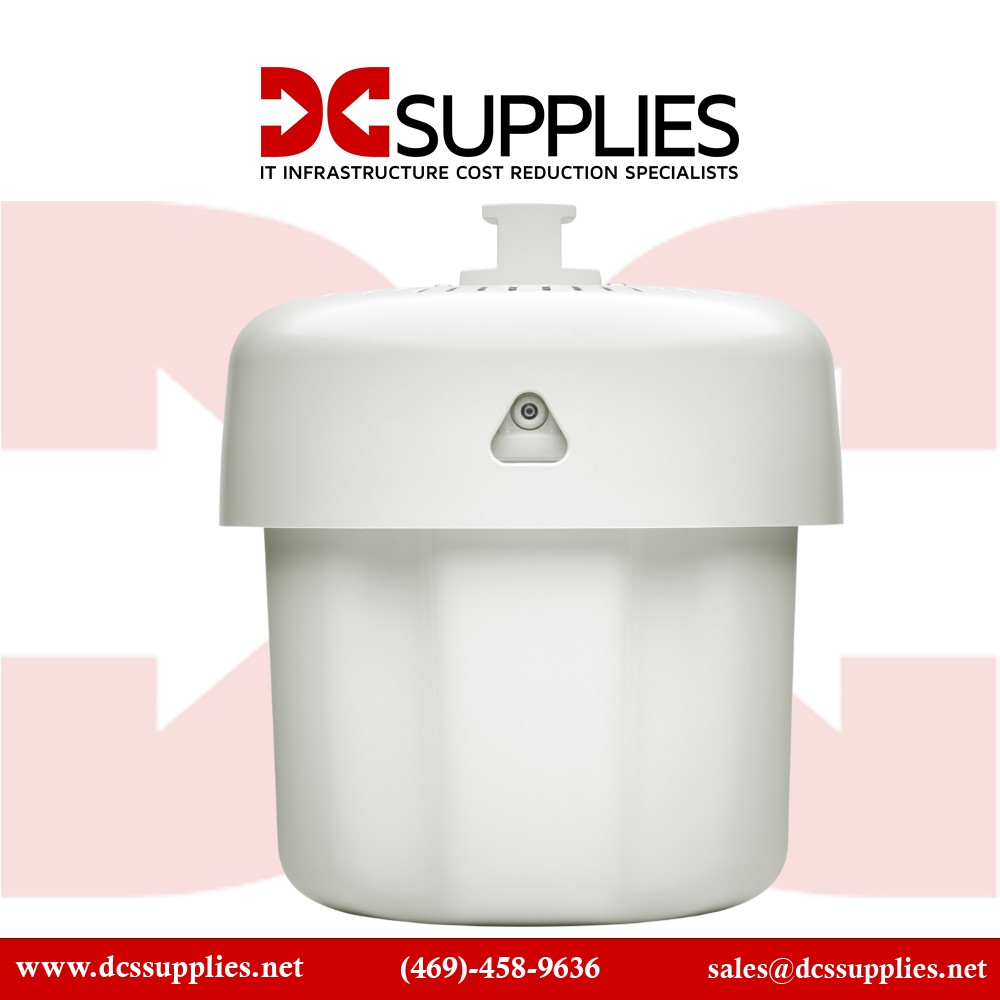

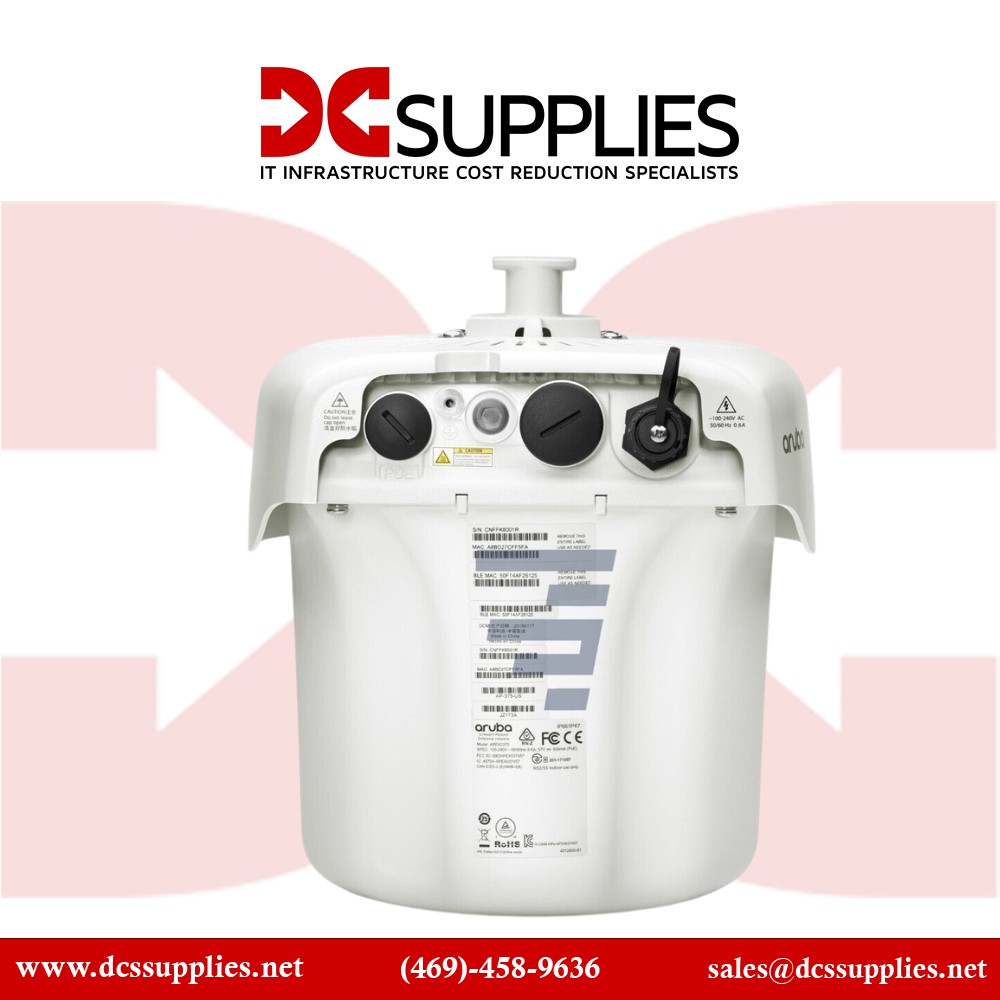

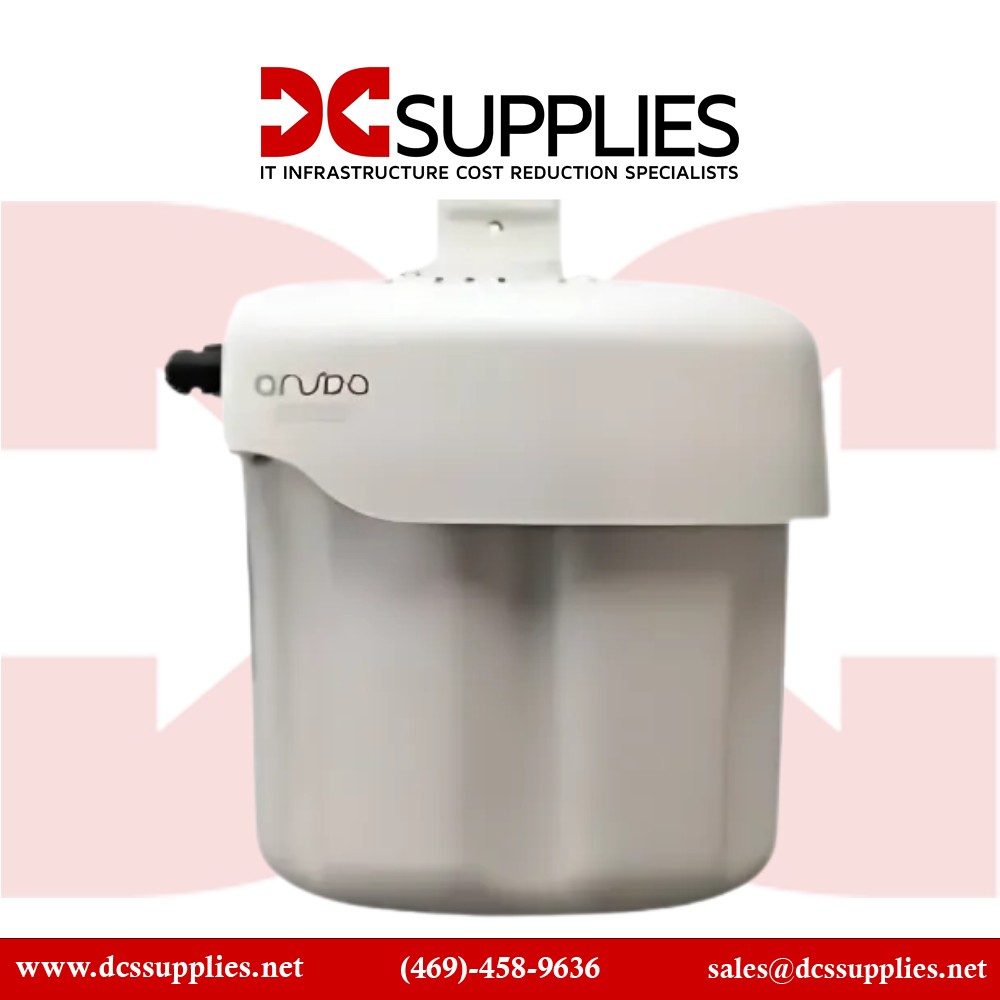

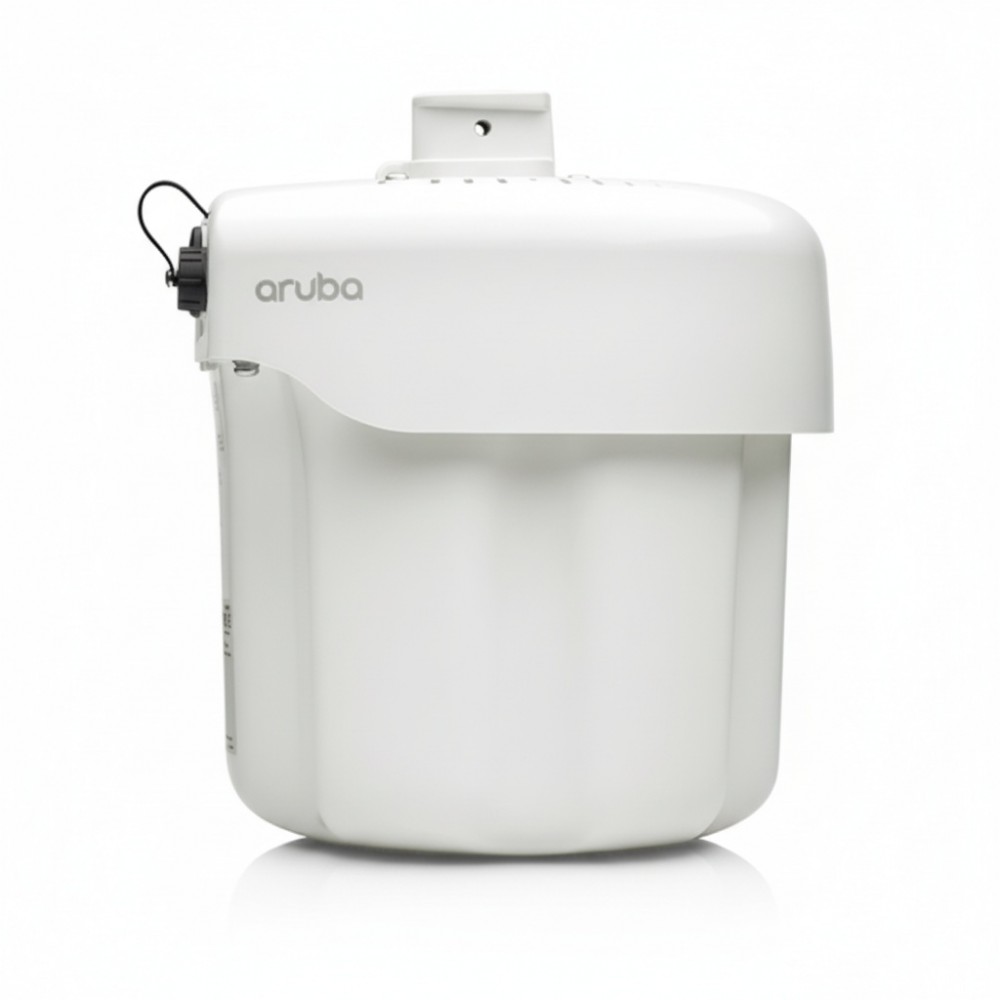

The HPE JZ173A (AP-375) is an outdoor-rated dual-band access point built for enterprises needing robust WiFi coverage outside buildings×courtyards, campuses, stadium perimeter, large outdoor venues. It delivers up to approximately 1.7 Gbps or more aggregate throughput (5 GHz + 2.4 GHz) with MU-MIMO support and integrated omni-directional external antennas for wide coverage. The rugged housing supports harsh environmental conditions and outdoor mounting. It fits in scenarios where you must support many mobile devices outdoors (video streaming, BYOD, guest access) and integrate into an existing enterprise wireless architecture such as the Aruba ecosystem. Firmware, management and advanced features align with the Aruba 370 series.
Key Features
Dual-radio 2.4 GHz + 5 GHz with 4×4:4 (5 GHz) spatial streams enabling high-density client support and improved throughput in outdoor deployments.
Rugged outdoor design: integrated omni antennas, industrial-grade environmental tolerance (wide temperature range, weather/sealing) for exterior mounting.
Supports enterprise management via the Aruba wireless ecosystem (ArubaOS/InstantOS), enabling segmentation, role-based access and unified policy.
PoE-powered (802.3at/PoE+ or external AC) enabling flexible outdoor installation without dedicated AC outlet next to unit
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE (Hewlett Packard Enterprise) |
| Part Number | JZ173A |
| Product Type | Outdoor Access Point - Dual-band WiFi 5 (802.11ac Wave2) |
| Key Specification | Wireless Standard: IEEE 802.11ac Wave2 (WiFi 5) |
| Key Specification | Maximum Aggregate Throughput: up to ~1.7-2.0 Gbps |
| Key Specification | Spatial Streams: 4×4:4 on 5 GHz |
| Management | ArubaOS / InstantOS, managed via controller or cloud |
| Power Requirements | PoE+ (802.3at) or AC 100-240 V (for outdoor installation) |
| Dimensions & Weight | Approx 9.1″ × 9.4″ × 10.6″ (≈ 231 × 239 × 269 mm) |
| Warranty | Standard HPE enterprise warranty (check local region) |
