Overview

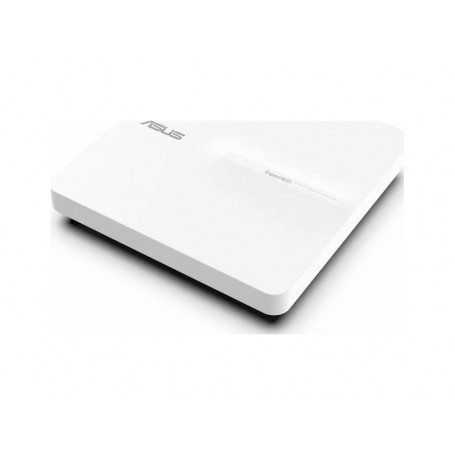

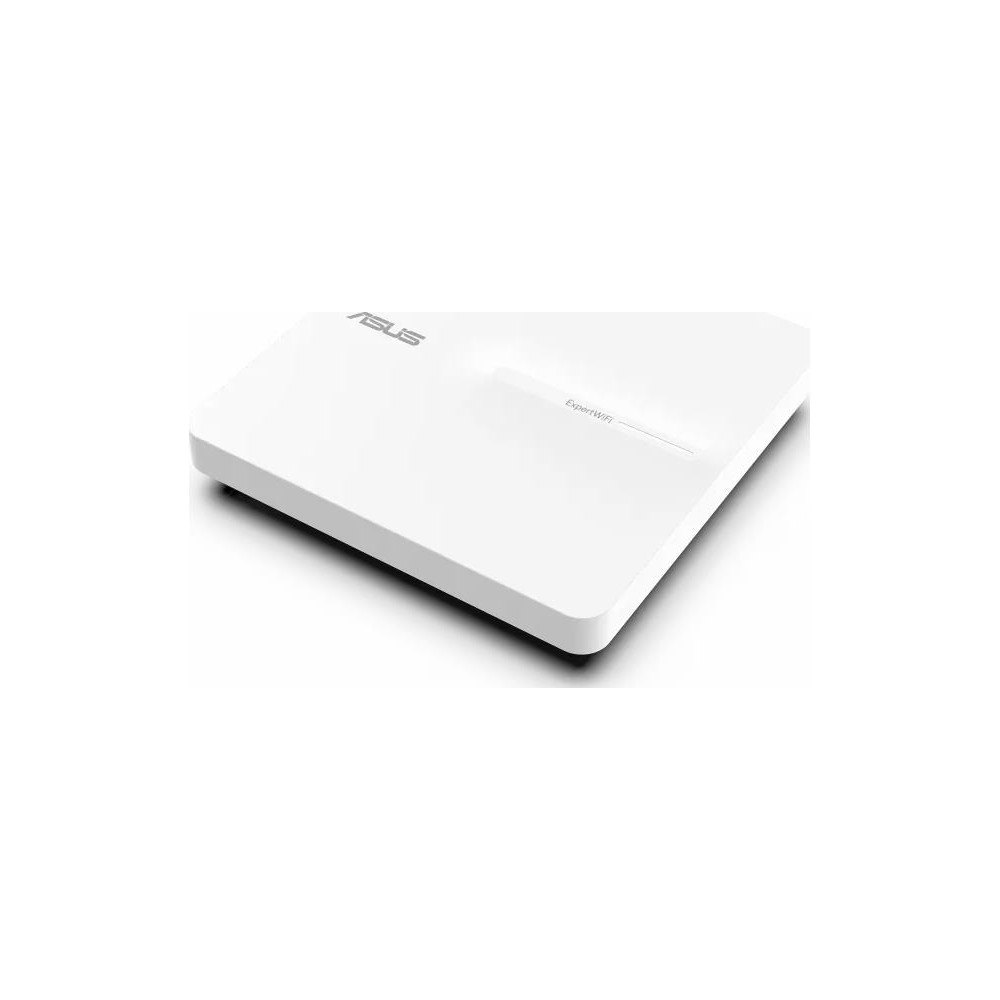

The ASUS ExpertWiFi EBA63 is an AX3000 dual-band Wi-Fi 6 access point designed for business wireless networking. It operates on 2.4 GHz and 5 GHz bands, providing wireless data rates of up to 574 Mbps and 2402 Mbps, respectively. Its compact design supports wall or ceiling mounting for flexible network deployment.
Wireless Performance and Network Management
The EBA63 uses Wi-Fi 6 (802.11ax) technology, OFDMA, beamforming, and 1024-QAM to support wireless communication across compatible devices. ASUS ExpertWiFi management features include Self-Defined Networks, VLAN support, wireless scheduling, traffic monitoring, and device access controls.
Compatibility and Deployment
The access point supports IEEE 802.11a/b/g/n/ac/ax wireless standards and IPv4 and IPv6 networking. It provides one Gigabit Ethernet port with Power over Ethernet support and can also operate using a 12 V DC power adapter. Supported operating modes include Access Point and AiMesh Node.
VLAN functionality and available software features depend on the connected router and its capabilities. The 160 MHz channel width may be unavailable in the 5 GHz band in certain regions due to regulatory restrictions.
Key Features
- AX3000 dual-band Wi-Fi 6 with up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
- One 10/100/1000 Mbps Gigabit Ethernet port with PoE support.
- OFDMA, beamforming, and 1024-QAM wireless technologies.
- Business network management features, including Self-Defined Networks and VLAN support.
- Wall and ceiling mounting with Access Point and AiMesh Node operating modes.
Applications
The EBA63 can be deployed in offices, retail premises, meeting areas, and other business environments requiring managed wireless access. Its network segmentation features can help separate guest, employee, and other device groups when supported by the network configuration.
DC Supplies Product Note
Before deployment, confirm whether the existing network equipment provides compatible PoE power or plan to use the included DC power adapter. Also verify router compatibility if you intend to use AiMesh or VLAN-related features.
Specifications
| Brand | ASUS |
|---|
| Part Number / MPN | EBA63 |
|---|
| Product Type | Wireless Access Point |
|---|
| Product Series | ExpertWiFi |
|---|
| Wireless Standard | Wi-Fi 6 (IEEE 802.11ax) |
|---|
| Wireless Performance Class | AX3000 |
|---|
| Frequency Bands | 2.4 GHz and 5 GHz |
|---|
| Maximum 2.4 GHz Data Rate | 574 Mbps |
|---|
| Maximum 5 GHz Data Rate | 2402 Mbps |
|---|
| Other Supported Standards | IEEE 802.11a/b/g/n/ac |
|---|
| Network Protocols | IPv4, IPv6 |
|---|
| Antennas | 4 internal antennas |
|---|
| Transmit / Receive Configuration | 2.4 GHz: 2x2; 5 GHz: 2x2 |
|---|
| Processor | 1.7 GHz quad-core |
|---|
| Flash Memory | 256 MB |
|---|
| RAM | 512 MB |
|---|
| Ethernet Interface | 1 x 10/100/1000 Mbps Gigabit Ethernet |
|---|
| Power over Ethernet | IEEE 802.3af PoE |
|---|
| Alternative Power Input | 12 V DC, maximum 1.5 A |
|---|
| Maximum Listed Power Consumption | 10 W (US specification) |
|---|
| Operating Modes | Access Point, AiMesh Node |
|---|
| Mounting | Wall mount, ceiling mount |
|---|
| Dimensions (W x D x H) | 160 x 160 x 42 mm |
|---|
| Product Weight | 426 g |
|---|
Frequently Asked Questions
Does the ASUS EBA63 support Wi-Fi 6?
Yes. It supports Wi-Fi 6 (802.11ax) on both the 2.4 GHz and 5 GHz bands.
Can the EBA63 be powered through Ethernet?
Yes. It supports IEEE 802.3af Power over Ethernet. A compatible PoE source is required when using this power method.
Can this access point be mounted on a wall or ceiling?
Yes. The EBA63 supports both wall and ceiling mounting.
Does it support VLAN configuration?
Yes, VLAN functionality is supported, but its availability depends on the capabilities of the connected router and network configuration.
Can it operate as an AiMesh node?
Yes. AiMesh Node is a supported operating mode. Available features depend on compatibility with the primary router.
