Overview

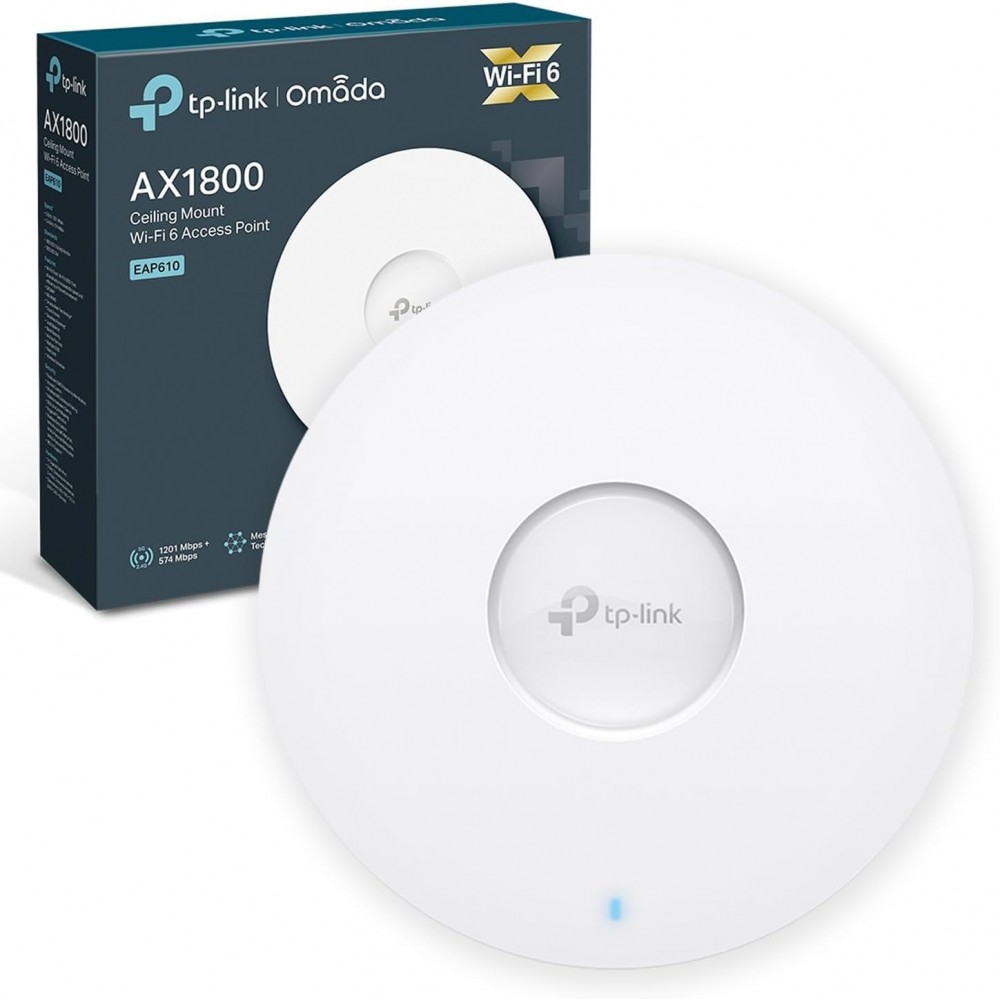

The TP-Link EAP610 is an AX1800 dual-band WiFi 6 ceiling-mount access point designed for business wireless networks. It provides up to 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz, with centralized management through the Omada platform and support for PoE-based deployment.
Wireless Connectivity
The EAP610 operates on both 2.4 GHz and 5 GHz bands using IEEE 802.11ax/ac/n/g/b/a. WiFi 6 technologies including OFDMA, MU-MIMO, 1024-QAM, beamforming, band steering, airtime fairness, and load balancing support efficient wireless operation across business environments.
Network and Power
The access point provides one Gigabit Ethernet RJ-45 port for wired network connectivity and supports Power over Ethernet for installation without a separate power connection at the access-point location. Depending on the hardware revision, TP-Link specifies 802.3at PoE and DC power options, with later revisions also supporting 48 V passive PoE.
Omada Management
The EAP610 can be managed through the TP-Link Omada ecosystem for centralized wireless configuration and monitoring. Supported functions include multiple SSIDs, captive portal authentication, seamless roaming, Omada Mesh, transmit-power control, automatic channel assignment, and wireless scheduling.
Key Features
- AX1800 WiFi 6 with up to 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz
- One Gigabit Ethernet RJ-45 port with PoE support
- 2×2 internal omnidirectional antennas on both wireless bands
- OFDMA, MU-MIMO, beamforming, band steering, and airtime fairness
- Omada Mesh and seamless roaming support
Applications
- Business wireless LAN deployments
- Office and commercial WiFi coverage
- Ceiling-mounted access-point installations
- Multi-access-point Omada networks
- Wireless networks requiring centralized management and PoE deployment
DC Supplies Product Note
Verify the hardware revision before deployment because EAP610 revisions have different power-input specifications. TP-Link lists the physical dimensions as 6.3 × 6.3 × 1.3 inches for V2 and later revisions, while the earlier V1 design is 9.6 × 9.6 × 2.5 inches.
Specifications
| Specification | Details |
|---|
| Brand | TP-Link |
| Part Number / MPN | EAP610 |
| Product Type | Ceiling Mount Wireless Access Point |
| Wireless Standard | WiFi 6 / IEEE 802.11ax/ac/n/g/b/a |
| Wireless Class | AX1800 |
| 2.4 GHz Speed | Up to 574 Mbps |
| 5 GHz Speed | Up to 1201 Mbps |
| Frequency Bands | 2.4 GHz and 5 GHz |
| Ethernet Interface | 1 × Gigabit Ethernet RJ-45 |
| Antenna Type | Internal omnidirectional |
| 2.4 GHz Antennas | 2 × 4 dBi |
| 5 GHz Antennas | 2 × 5 dBi |
| Wireless Technologies | OFDMA, MU-MIMO, 1024-QAM, beamforming |
| SSID Support | Up to 16 SSIDs, 8 per band |
| Mesh Support | Omada Mesh |
| Roaming | Seamless roaming |
| Management | Omada platform, web interface, Omada app |
| Mounting | Ceiling / wall mounting; junction box mounting on supported revisions |
| PoE | 802.3at PoE; passive PoE support varies by revision |
| Dimensions | 6.3 × 6.3 × 1.3 in for V2 and later revisions |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
FAQs
What wireless speeds does the TP-Link EAP610 support?
The EAP610 supports up to 574 Mbps on 2.4 GHz and up to 1201 Mbps on 5 GHz, for an AX1800-class combined wireless rate.
Does the EAP610 support PoE?
Yes. TP-Link specifies PoE support, with the exact PoE and DC power options depending on the EAP610 hardware revision.
Can the EAP610 be managed through Omada?
Yes. The EAP610 supports centralized management through the TP-Link Omada ecosystem, including configuration and monitoring functions.
Does the EAP610 support mesh networking?
Yes. Omada Mesh support allows compatible EAP610 deployments to use wireless connectivity between access points.
How many SSIDs can the EAP610 support?
TP-Link specifies support for up to 16 SSIDs, with up to 8 SSIDs on each wireless band.
