Overview

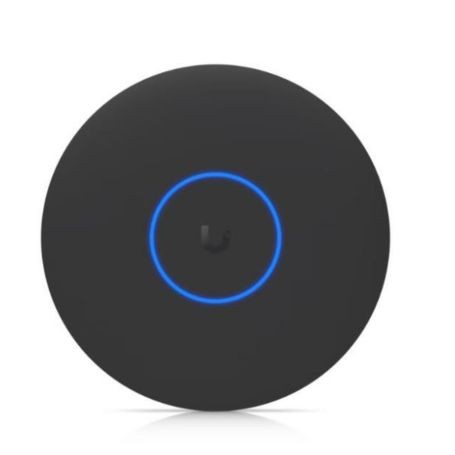

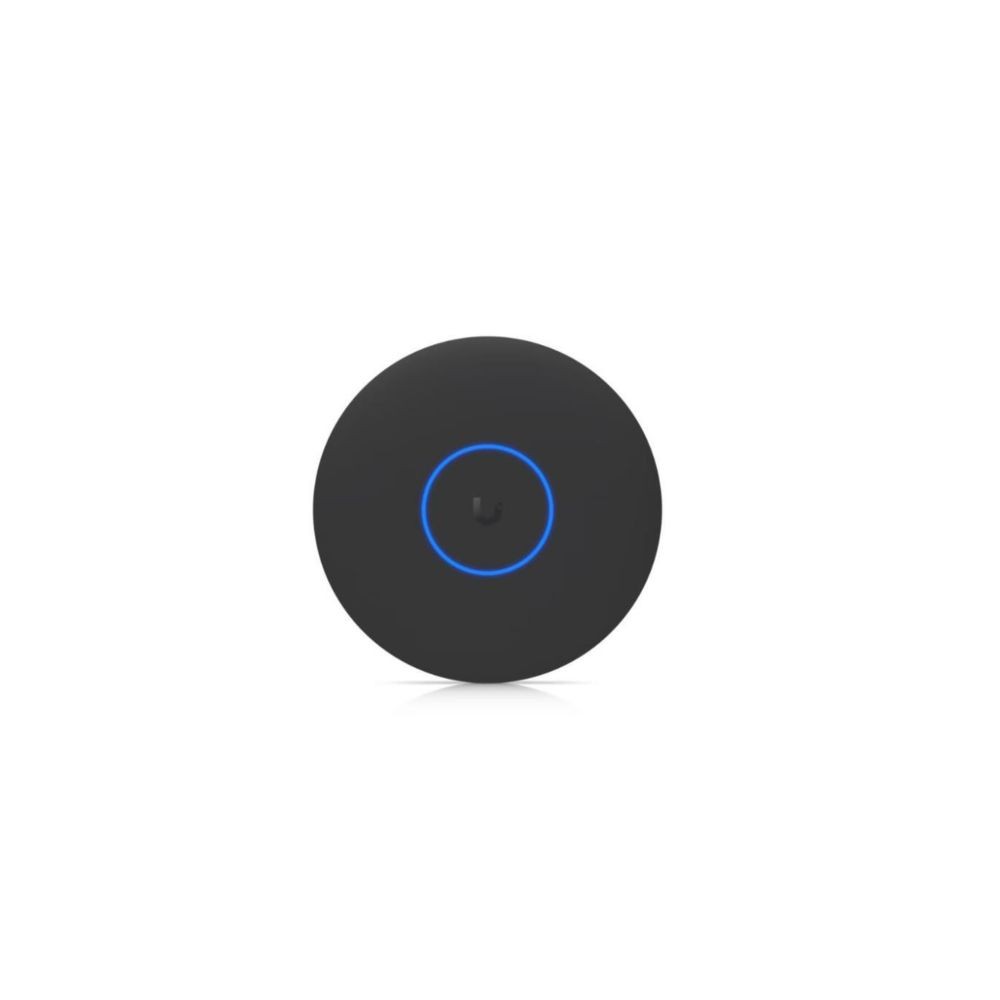

The Ubiquiti U7 Pro XGS is a ceiling-mounted eight-stream WiFi 7 access point designed for high-density UniFi wireless deployments. The U7-Pro-XGS-B-US is the black variant and combines tri-band 2.4 GHz, 5 GHz, and 6 GHz connectivity with a dedicated spectral scanning radio and 10 GbE Ethernet connectivity.
Wireless Performance
The U7 Pro XGS provides 2x2 MU-MIMO on 2.4 GHz, 4x4 MU-MIMO on 5 GHz, and 2x2 MU-MIMO on 6 GHz. Maximum specified data rates are 688 Mbps on 2.4 GHz, 8.6 Gbps on 5 GHz, and 5.8 Gbps on 6 GHz. The 6 GHz radio supports channel widths up to 320 MHz.
Spectral Analysis
A dedicated spectral scanning radio provides real-time spectral analysis and advanced radio management capabilities. This radio is separate from the three client-serving WiFi bands.
Connectivity and Deployment
The access point provides one 10 GbE RJ45 networking interface and uses PoE++ for power. It supports ceiling and wall mounting, with the Lite Mount included. Ubiquiti specifies coverage of up to 160 m² (1,750 ft²) and support for more than 500 clients.
Key Features
- Eight-stream tri-band WiFi 7
- Dedicated radio for real-time spectral analysis
- 10 GbE RJ45 uplink
- 4x4 MU-MIMO on the 5 GHz radio
- PoE++ power with ceiling or wall mounting support
Applications
The U7 Pro XGS is designed for high-density indoor wireless deployments where WiFi 7, high-capacity 5 GHz connectivity, 6 GHz operation, and dedicated spectrum analysis are required. Its 10 GbE uplink is suited to network infrastructure capable of supporting high-speed wireless traffic.
DC Supplies Product Note
The black U7-Pro-XGS-B-US requires PoE++ rather than PoE+. Ubiquiti specifies a maximum power consumption of 29 W, so the PoE infrastructure should be selected accordingly. The device also uses a 10 GbE RJ45 uplink, making compatible multi-gigabit network equipment necessary to use its full wired interface capability.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | U7-Pro-XGS-B-US |
| Product Type | WiFi 7 Access Point |
| Product Model | U7 Pro XGS |
| Color | Black |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 8 |
| Wireless Bands | 2.4 GHz / 5 GHz / 6 GHz |
| Coverage Area | 160 m² (1,750 ft²) |
| Maximum Client Count | 500+ |
| Uplink | 10 GbE |
| Networking Interface | 1 x 10 GbE RJ45 |
| Power Method | PoE++ |
| Maximum Power Consumption | 29 W |
| Supported Voltage Range | 42.5–57 V DC |
| 2.4 GHz MIMO | 2 x 2 DL/UL MU-MIMO |
| 5 GHz MIMO | 4 x 4 DL/UL MU-MIMO |
| 6 GHz MIMO | 2 x 2 DL/UL MU-MIMO |
| Maximum 2.4 GHz Data Rate | 688 Mbps |
| Maximum 5 GHz Data Rate | 8.6 Gbps |
| Maximum 6 GHz Data Rate | 5.8 Gbps |
| Antenna Gain | 4 dBi (2.4 GHz), 6 dBi (5 GHz), 6 dBi (6 GHz) |
| Maximum TX Power | 23 dBm (2.4 GHz), 29 dBm (5 GHz), 24 dBm (6 GHz) |
| Dimensions | Ø215 x 32.5 mm (Ø8.5 x 1.3 in) |
| Weight | 800 g (1.8 lb) |
| Mounting | Ceiling, Wall |
| Operating Temperature | -30 to 40 °C (-22 to 104 °F) |
| Operating Humidity | 5–95% noncondensing |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Max. BSSIDs | 8 per radio |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz |
| UniFi Network Requirement | Version 9.1.120 and later |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel |
FAQs
What is the difference between the U7 Pro XGS and standard U7 Pro XG?
The U7 Pro XGS is an eight-stream model with 4x4 MU-MIMO on 5 GHz and a dedicated spectral scanning radio. The U7 Pro XG has six spatial streams and does not provide the same dedicated spectral scanning radio.
Does the U7 Pro XGS support 6 GHz WiFi?
Yes. It has a dedicated 6 GHz radio with 2x2 MU-MIMO and a specified maximum data rate of 5.8 Gbps using 320 MHz bandwidth.
What Ethernet interface does the U7 Pro XGS provide?
The access point has one 10 GbE RJ45 networking interface.
What power source does the U7 Pro XGS require?
Ubiquiti specifies PoE++ as the power method, with maximum power consumption of 29 W.
Where can the U7 Pro XGS be mounted?
The access point supports ceiling and wall mounting, and Ubiquiti specifies that the Lite Mount is included.
