Overview

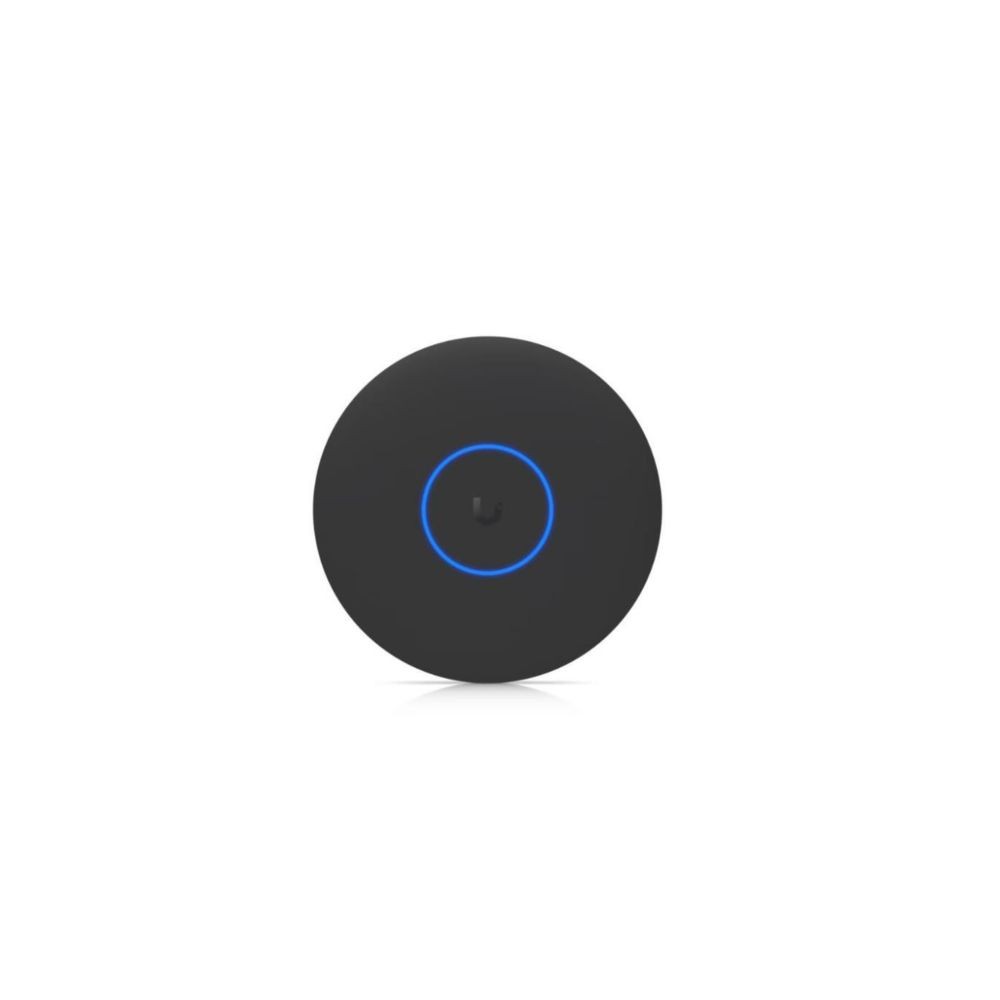

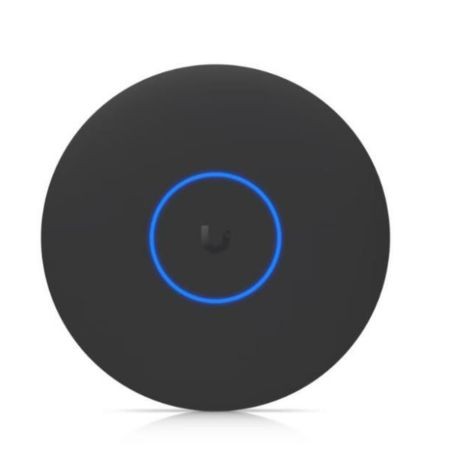

The Ubiquiti U7 Pro XG is a ceiling-mounted six-stream WiFi 7 access point for UniFi wireless deployments. The black U7-Pro-XG-B-US variant provides tri-band 2.4 GHz, 5 GHz, and 6 GHz wireless connectivity and a 10 GbE RJ45 uplink.
Wireless Connectivity
The access point uses 2x2 MU-MIMO on each of its three wireless radios. Ubiquiti specifies maximum data rates of 688 Mbps on 2.4 GHz, 4.3 Gbps on 5 GHz, and 5.8 Gbps on 6 GHz. The 6 GHz radio supports EHT channel widths up to 320 MHz.
Network Features
UniFi wireless capabilities include wireless meshing, band steering, fast roaming, radio resource management, Passpoint, captive portal support, guest network isolation, private pre-shared keys, client isolation, WiFi scheduling, RADIUS over TLS, and dynamic RADIUS-assigned VLANs.
Deployment
The U7 Pro XG supports ceiling or wall mounting and has a 10 GbE RJ45 networking interface. It is powered through PoE+ and has a maximum power consumption of 22 W. Ubiquiti specifies coverage of up to 140 m² (1,500 ft²) and support for more than 300 clients.
Key Features
- Tri-band WiFi 7 across 2.4 GHz, 5 GHz, and 6 GHz
- Six spatial streams with 2x2 MU-MIMO per radio
- 10 GbE RJ45 uplink
- Up to 5.8 Gbps specified maximum 6 GHz data rate with 320 MHz bandwidth
- Ceiling or wall mounting support
Applications
The U7 Pro XG is designed for indoor UniFi wireless networks requiring WiFi 7, 6 GHz connectivity, and a high-speed wired uplink. Its tri-radio architecture supports deployments with multiple wireless client devices across three frequency bands.
DC Supplies Product Note
The U7-Pro-XG-B-US is the black U7 Pro XG variant. Ubiquiti specifies UniFi Network version 9.1.120 or later for the black model. The access point requires PoE+ power and uses a 10 GbE RJ45 uplink, so the upstream network infrastructure should support the required Ethernet and power capabilities.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | U7-Pro-XG-B-US |
| Product Type | WiFi 7 Access Point |
| Product Model | U7 Pro XG |
| Color | Black |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Wireless Bands | 2.4 GHz / 5 GHz / 6 GHz |
| Coverage Area | 140 m² (1,500 ft²) |
| Maximum Client Count | 300+ |
| Uplink | 10 GbE |
| Networking Interface | 1 x 10 GbE RJ45 |
| Mounting | Ceiling, Wall |
| Power Method | PoE+ |
| Maximum Power Consumption | 22 W |
| Supported Voltage Range | 42.5–57 V DC |
| 2.4 GHz MIMO | 2 x 2 DL/UL MU-MIMO |
| 5 GHz MIMO | 2 x 2 DL/UL MU-MIMO |
| 6 GHz MIMO | 2 x 2 DL/UL MU-MIMO |
| Maximum 2.4 GHz Data Rate | 688 Mbps |
| Maximum 5 GHz Data Rate | 4.3 Gbps |
| Maximum 6 GHz Data Rate | 5.8 Gbps |
| Antenna Gain | 4 dBi (2.4 GHz), 5 dBi (5 GHz), 6 dBi (6 GHz) |
| Maximum TX Power | 23 dBm (2.4 GHz), 26 dBm (5 GHz), 24 dBm (6 GHz) |
| Dimensions | Ø206 x 32.5 mm (Ø8.1 x 1.3 in) |
| Weight | 750 g (1.7 lb) |
| Operating Temperature | -30 to 40 °C (-22 to 104 °F) |
| Operating Humidity | 5–95% noncondensing |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Certifications | CE, FCC, IC, Anatel |
| NDAA Compliant | Yes |
| UniFi Network Requirement | Version 9.1.120 and later |
FAQs
What is the exact model represented by U7-Pro-XG-B-US?
It is the black U7 Pro XG six-stream WiFi 7 access point. Ubiquiti's current product page identifies the black model as U7-Pro-XG-B.
Does this model support 6 GHz WiFi?
Yes. The U7 Pro XG has dedicated 2.4 GHz, 5 GHz, and 6 GHz radios, with a specified maximum 6 GHz data rate of 5.8 Gbps.
What Ethernet uplink does it provide?
The access point has one 10 GbE RJ45 networking interface.
How is the U7 Pro XG powered?
It uses PoE+ and has a specified maximum power consumption of 22 W.
Where can the access point be mounted?
Ubiquiti specifies ceiling and wall mounting for the U7 Pro XG.
