Overview

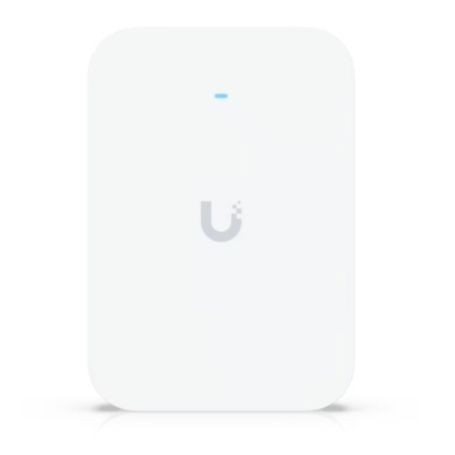

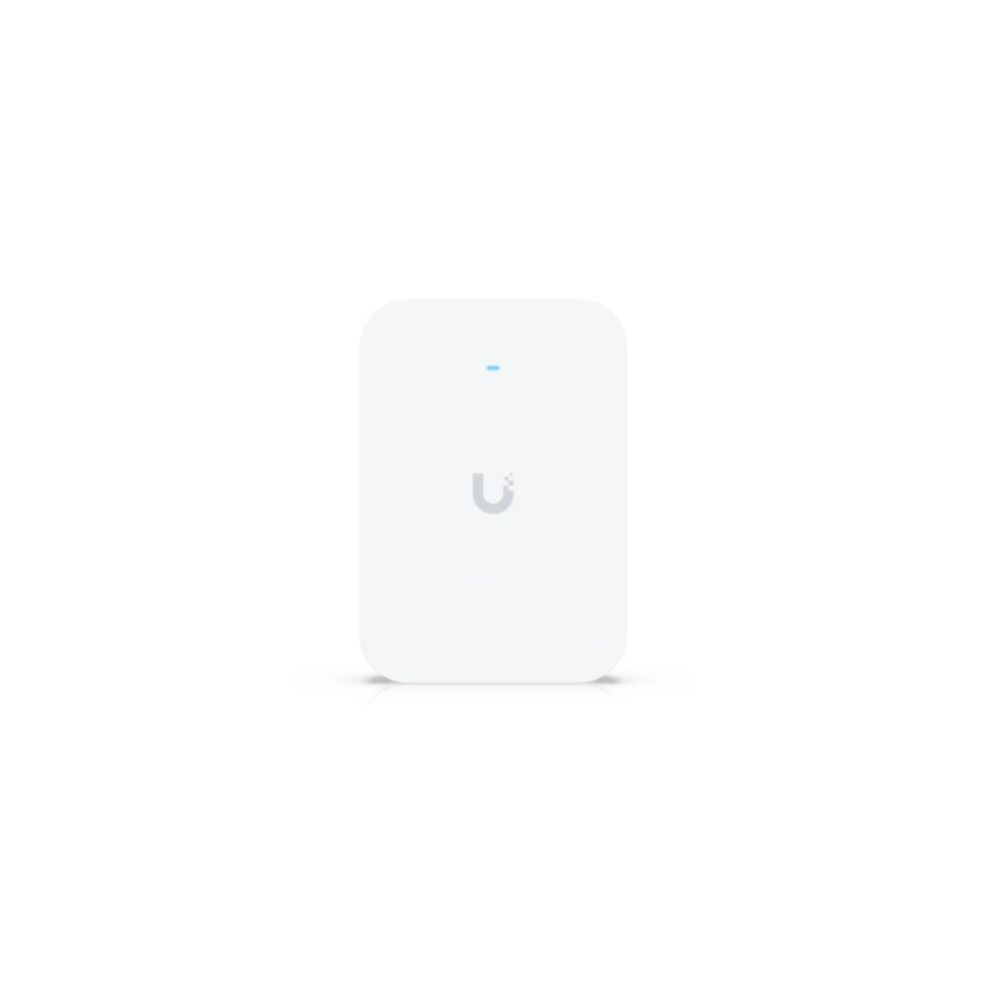

The Ubiquiti U7 Pro XG Wall is a wall-mounted WiFi 7 access point designed for high-speed wireless networking in indoor deployments. It provides six spatial streams across the 2.4 GHz, 5 GHz, and 6 GHz bands, with a 10 GbE RJ45 uplink and PoE+ power.
Wireless Performance
The access point supports WiFi 7 (802.11be), as well as WiFi 6, WiFi 5, and WiFi 4 standards. Its three radios use 2x2 MU-MIMO, with maximum data rates of 688 Mbps on 2.4 GHz, 4.3 Gbps on 5 GHz, and 5.8 Gbps on 6 GHz when using the specified channel bandwidths.
Connectivity and Deployment
The U7 Pro XG Wall provides one 10 GbE RJ45 networking interface and is powered using PoE+. The manufacturer specifies wall mounting and a coverage area of up to 140 m² (1,500 ft²), with support for more than 300 clients.
Network Features
- WiFi 7 with six spatial streams
- 6 GHz, 5 GHz, and 2.4 GHz wireless radios
- 10 GbE RJ45 uplink
- Wireless meshing, band steering, fast roaming, and radio resource management
- Guest network isolation, client device isolation, PPSK, VLAN assignment, and WiFi scheduling support
Applications
The wall-mounted form factor is suited to indoor wireless deployments where an access point is positioned directly on a wall. Supported management and network features allow the device to be integrated into UniFi-managed wireless networks, including deployments using guest access, VLAN assignment, authentication, and wireless roaming features.
DC Supplies Product Note
The U7 Pro XG Wall uses a 10 GbE RJ45 uplink and PoE+ power method. Deployment planning should therefore account for suitable Ethernet infrastructure and PoE+ power availability. The manufacturer lists UniFi Network version 10.0 or later as the application requirement.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | U7-PRO-XG-WALL-US |
| Product Type | Wall-mounted WiFi 7 Access Point |
| Product Model | U7 Pro XG Wall |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Maximum Client Count | 300+ |
| Uplink | 10 GbE |
| Networking Interface | 1 x 10 GbE RJ45 |
| Mounting | Wall |
| Power Method | PoE+ |
| Maximum Power Consumption | 22 W |
| Supported Voltage Range | 42.5–57 V DC |
| 2.4 GHz MIMO | 2 x 2 DL/UL MU-MIMO |
| 5 GHz MIMO | 2 x 2 DL/UL MU-MIMO |
| 6 GHz MIMO | 2 x 2 DL/UL MU-MIMO |
| Maximum 2.4 GHz Data Rate | 688 Mbps |
| Maximum 5 GHz Data Rate | 4.3 Gbps |
| Maximum 6 GHz Data Rate | 5.8 Gbps |
| Dimensions | 155 x 108 x 33.5 mm (6.1 x 4.3 x 1.3 in) |
| Weight | 505 g (1.1 lb) |
| Operating Temperature | -30 to 40 °C (-22 to 104 °F) |
| Operating Humidity | 5–95% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| UniFi Network Requirement | Version 10.0 and later |
FAQs
What wireless standard does the U7 Pro XG Wall support?
It supports WiFi 7 (802.11be), along with WiFi 6, WiFi 5, and WiFi 4 compatibility.
Does the U7 Pro XG Wall support 6 GHz WiFi?
Yes. The access point includes a dedicated 6 GHz radio with 2x2 MU-MIMO and a maximum specified data rate of 5.8 Gbps.
What Ethernet connection does it use?
The device has one 10 GbE RJ45 networking interface for its uplink.
How is the access point powered?
The manufacturer specifies PoE+ as the power method, with a supported voltage range of 42.5–57 V DC.
Is the U7 Pro XG Wall designed for wall mounting?
Yes. The manufacturer specifies wall mounting for this model.
What software is required?
Ubiquiti specifies UniFi Network version 10.0 or later for the U7 Pro XG Wall.
