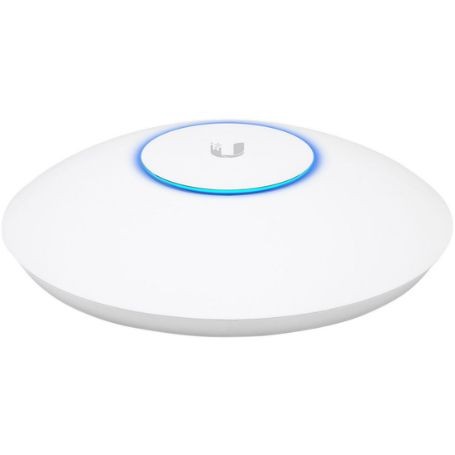

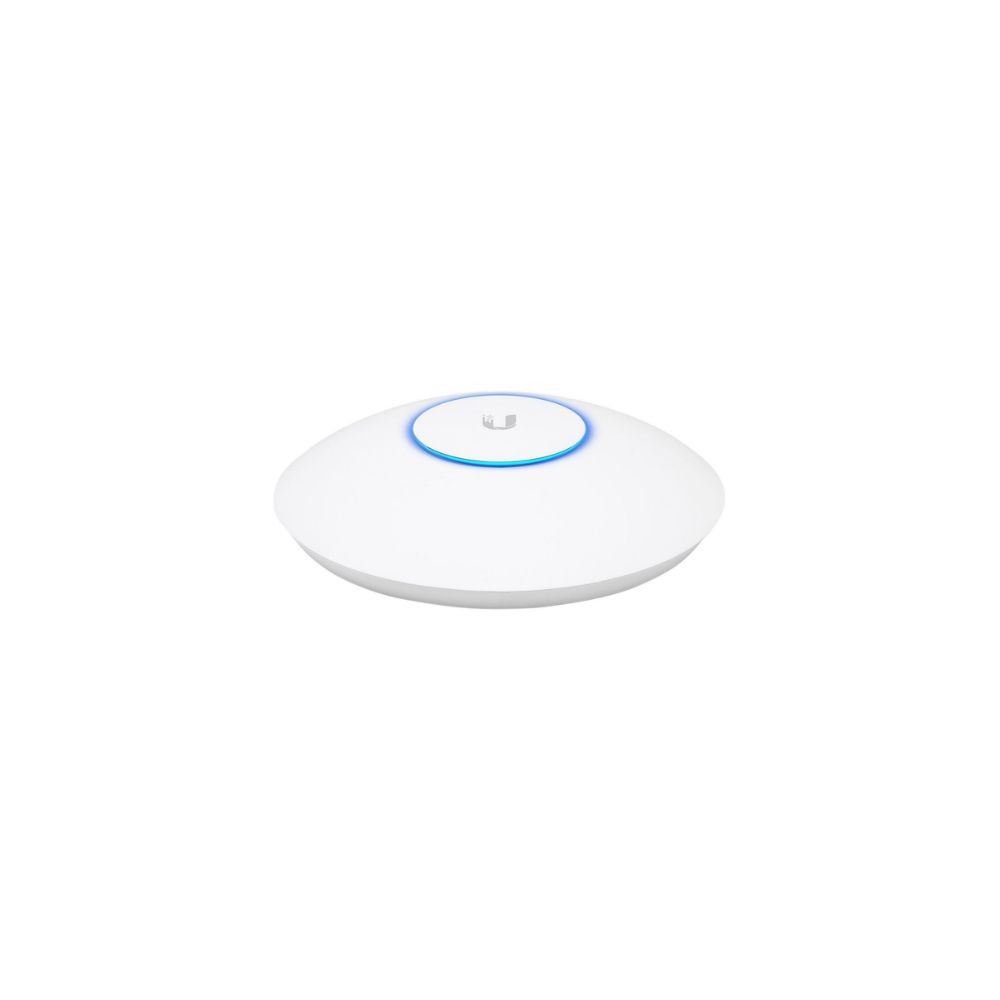

Ubiquiti UAP-XG UniFi XG WiFi 5 Access Point
Overview
The Ubiquiti UAP-XG is a UniFi XG access point built around WiFi 5 (802.11ac Wave 2) technology. It uses 4x4 MIMO on both the 2.4 GHz and 5 GHz bands, providing eight spatial streams in total.
The UAP-XG provides a maximum data rate of 450 Mbps on 2.4 GHz and 1.733 Gbps on 5 GHz. It also includes a dedicated security radio and a 1/10 GbE ICM Ethernet interface for high-speed wired connectivity.
Wireless Performance
The access point supports 4x4 MIMO on both operating bands. Ubiquiti specifies up to 1.733 Gbps on the 5 GHz radio and up to 450 Mbps on the 2.4 GHz radio, with maximum transmit power of 25 dBm on each band.
The integrated antennas provide 6 dBi gain on 2.4 GHz and 8 dBi gain on 5 GHz. The UAP-XG supports up to eight BSSIDs per radio.
Networking Interfaces
The UAP-XG has one Gigabit RJ45 Ethernet port and one 1/10 GbE ICM Ethernet port. The 10 GbE interface can be used for high-speed network connectivity, while the Gigabit port provides an additional Ethernet connection.
For 10 GbE operation, Ubiquiti specifies connecting the device to an 802.3bt PoE switch and enabling flow control on the upstream switch port for maximum performance.
Security and Management
The UAP-XG includes a dedicated security radio and supports wireless security features including WPA-PSK and WPA-Enterprise with WPA/WPA2 and TKIP/AES. UniFi Network is used for device management.
Installation
The UAP-XG supports ceiling, wall, and junction-box mounting. The device measures 228 × 228 × 50 mm and is designed for indoor installation or protected outdoor placement under an eave or other covered location. Ubiquiti states that it should not be installed in an open outdoor environment.
Power
The UAP-XG supports 802.3bt PoE and accepts a supported voltage range of 44–57V DC. Ubiquiti specifies maximum power consumption of 31W. A 50V DC, 1.2A Gigabit PoE adapter is listed for powering the device.
Key Features
- WiFi 5 (802.11ac Wave 2) with eight spatial streams
- 4x4 MIMO on both 2.4 GHz and 5 GHz radios
- Up to 1.733 Gbps on 5 GHz and 450 Mbps on 2.4 GHz
- 1/10 GbE ICM Ethernet interface for high-speed connectivity
- Dedicated security radio for wireless security functions
Applications
- High-density UniFi wireless networks
- Enterprise and business WiFi deployments
- High-throughput wireless access with 10 GbE uplink capability
- Indoor ceiling and wall-mounted wireless installations
- Protected outdoor installations under suitable cover
DC Supplies Product Note
The UAP-XG supports 802.3bt PoE for its higher-performance configuration, while Ubiquiti also documents operation with a 50V DC, 1.2A Gigabit PoE adapter. For 10 GbE operation, use an appropriate 802.3bt PoE switch and configure upstream flow control as specified by Ubiquiti.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UAP-XG |
| Product Type | Wireless Access Point |
| Product Family | UniFi XG |
| WiFi Standard | WiFi 5 / 802.11ac Wave 2 |
| Spatial Streams | 8 |
| 2.4 GHz MIMO | 4 × 4 |
| 5 GHz MIMO | 4 × 4 |
| 2.4 GHz Maximum Data Rate | 450 Mbps |
| 5 GHz Maximum Data Rate | 1.733 Gbps |
| 2.4 GHz Antenna Gain | 6 dBi |
| 5 GHz Antenna Gain | 8 dBi |
| 2.4 GHz Maximum TX Power | 25 dBm |
| 5 GHz Maximum TX Power | 25 dBm |
| Maximum BSSIDs | Up to 8 per radio |
| Networking Interfaces | 1 × GbE RJ45; 1 × 1/10 GbE ICM Ethernet |
| Power Method | 802.3bt PoE |
| Supported Voltage Range | 44–57V DC |
| Power Supply | 50V DC, 1.2A Gigabit PoE adapter |
| Maximum Power Consumption | 31W |
| Coverage Area | 140 m² / 1,500 ft² |
| Mounting | Ceiling, Wall |
| Dimensions | 228 × 228 × 50 mm |
| Weight Without Mount | 1.2 kg |
| Weight With Mount | 1.4 kg |
| Operating Temperature | -10°C to 60°C |
| Operating Humidity | 5–95% non-condensing |
| Management | UniFi Network |
| UniFi Network Requirement | Version 6.0.45 or later |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel |
FAQs
What is the Ubiquiti UAP-XG?
The UAP-XG is a UniFi XG WiFi 5 access point with 4x4 MIMO on both 2.4 GHz and 5 GHz and eight spatial streams.
What wireless speeds does the UAP-XG support?
Ubiquiti specifies a maximum data rate of 450 Mbps on 2.4 GHz and 1.733 Gbps on 5 GHz.
Does the UAP-XG have a 10 GbE port?
Yes. It includes one 1/10 GbE ICM Ethernet port in addition to one Gigabit RJ45 Ethernet port.
What PoE standard does the UAP-XG use?
The UAP-XG supports 802.3bt PoE and a 44–57V DC operating range. Ubiquiti also specifies a 50V DC, 1.2A Gigabit PoE adapter.
Can the UAP-XG be installed outdoors?
It is not designed for open outdoor installation. Ubiquiti permits protected placement under an eave or similar covered location with the required installation precautions.
What mounting options are supported?
The UAP-XG supports ceiling and wall mounting, with mounting hardware included for supported installation configurations.
