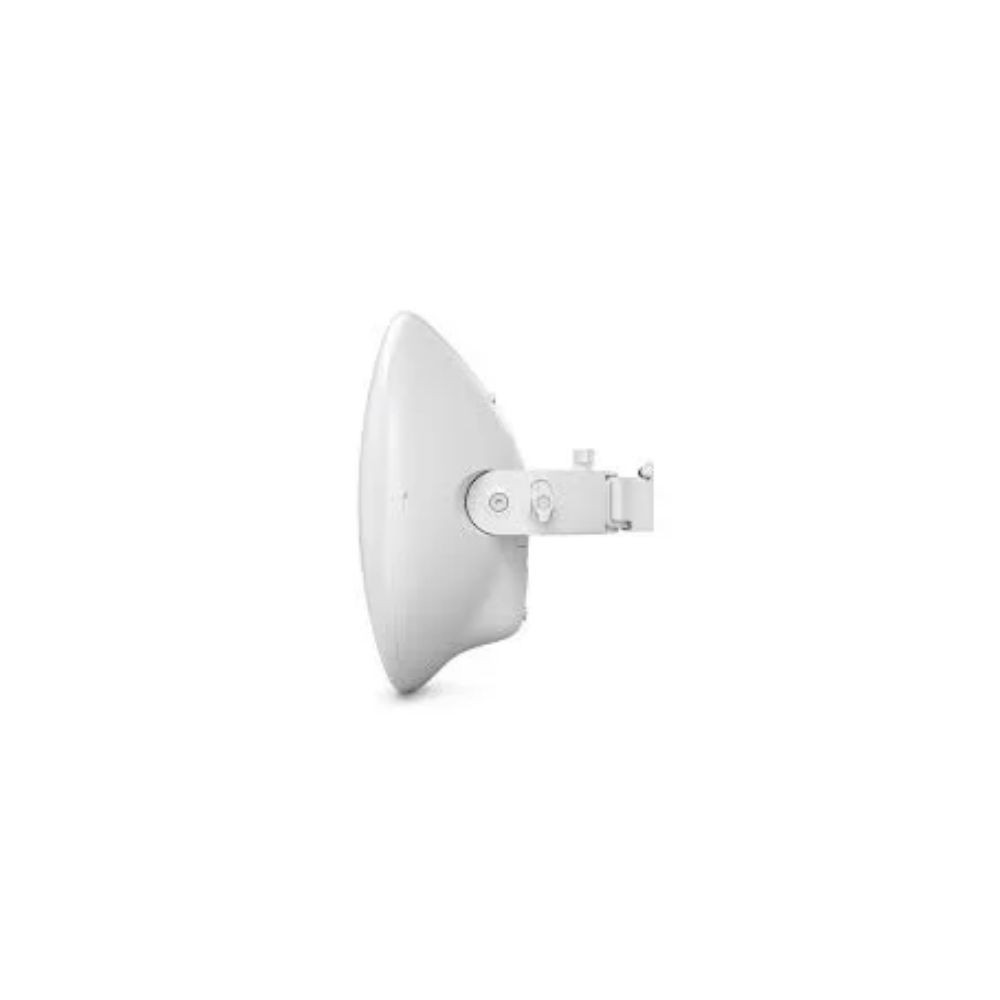

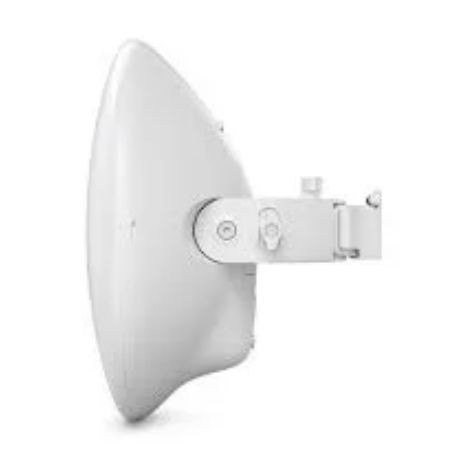

Ubiquiti WAVE-NANO UISP Wave Nano 60 GHz PtMP Station
Overview
The Ubiquiti WAVE-NANO is a UISP Wave 60 GHz point-to-multipoint station designed to connect as a client to compatible Wave access points. It combines a high-capacity 60 GHz radio with a 5 GHz Wi-Fi 6 backup radio and supports a total throughput of up to 2 Gbps.
The Wave Nano supports PtMP station operation and can be managed through UISP. Its integrated GPS, Bluetooth management, antenna alignment tools, and outdoor-rated enclosure support deployment in fixed wireless networking environments.
Wireless Technology
The primary radio operates across the 57–71 GHz range, depending on regulatory region, with 2160, 1080, and 540 MHz channel bandwidth options. The 60 GHz radio uses 16QAM and QPSK modulation and provides 41 dBi antenna gain.
A 5 GHz 802.11ax Wi-Fi 6 radio provides backup connectivity. The backup radio supports 20, 40, and 80 MHz channel bandwidths and provides 19 dBi antenna gain.
Performance
The WAVE-NANO provides up to 2 Gbps total throughput, with Ubiquiti specifying a maximum range of more than 5 km. Actual wireless performance and range depend on deployment conditions, regulatory requirements, alignment, environmental factors, and the paired Wave equipment.
Networking and Management
The station provides one Gigabit Ethernet RJ45 interface and supports bridge/router networking modes. UISP provides device management, monitoring, configuration, and network tools. Bluetooth management is available for setup through the UISP application.
Installation
The WAVE-NANO uses pole mounting and supports poles with an outer diameter from 25 to 63.5 mm. The enclosure is rated IPX6 for weather resistance and is designed for outdoor fixed wireless installations. The unit operates from -40°C to 60°C with 5–95% non-condensing humidity.
Key Features
- 60 GHz Wave Technology for PtMP connectivity
- Up to 2 Gbps total throughput
- 41 dBi integrated 60 GHz antenna gain
- 5 GHz Wi-Fi 6 backup radio with 19 dBi antenna gain
- UISP management with integrated GPS and Bluetooth setup
Applications
- Fixed wireless broadband client connections
- 60 GHz point-to-multipoint network deployments
- Outdoor wireless links from compatible Wave access points
- High-capacity network connectivity for remote locations
DC Supplies Product Note
The WAVE-NANO uses passive PoE and supports a 44–54V DC range for its current specification. The current Ubiquiti technical specification lists a 48V DC, 0.65A Gigabit PoE adapter as the included power supply.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | WAVE-NANO |
| Product Type | 60 GHz PtMP Station |
| Wireless Technology | Wave Technology |
| Primary Radio Frequency | 57–71 GHz |
| Primary Channel Bandwidth | 2160, 1080, 540 MHz |
| Primary Modulation | 16QAM, QPSK |
| Primary Antenna Gain | 41 dBi |
| Primary Polarization | Vertically-Linear |
| Primary Beamwidth | 1.4° azimuth / 1.4° elevation |
| Backup Radio Standard | 802.11ax (Wi-Fi 6) |
| Backup Radio Frequency | 5150–5875 MHz, region dependent |
| Backup Channel Bandwidth | 20, 40, 80 MHz |
| Backup Antenna Gain | 19 dBi |
| Total Throughput | 2 Gbps |
| Maximum Range | 5+ km |
| Networking Interface | 1 × Gigabit Ethernet RJ45 |
| Operating Modes | PtP, PtMP Station |
| Network Mode | Bridge / Router |
| Management | UISP |
| GPS | Integrated |
| Power Method | Passive PoE |
| Supported Voltage | 44–54V DC / 22–27V DC |
| Maximum Power Consumption | 20W |
| Power Supply | 48V DC, 0.65A Gigabit PoE adapter |
| Weatherproofing | IPX6 |
| Mounting | Pole Mount |
| Supported Pole Diameter | 25–63.5 mm |
| Dimensions | Ø256.5 × 113.5 mm |
| Weight Without Mount | 932 g |
| Weight With Mount | 1.2 kg |
| Operating Temperature | -40°C to 60°C |
| Operating Humidity | 5–95% non-condensing |
| Encryption | WPA2-PSK (AES) |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
FAQs
What is the Ubiquiti WAVE-NANO?
The WAVE-NANO is a 60 GHz point-to-multipoint station from Ubiquiti's UISP Wave product line.
What throughput does the WAVE-NANO support?
Ubiquiti specifies a total throughput of up to 2 Gbps.
What is the maximum range of the WAVE-NANO?
Ubiquiti specifies a maximum range of more than 5 km, subject to deployment conditions and compatibility with the connected Wave equipment.
Does the WAVE-NANO have a backup radio?
Yes. It includes a 5 GHz 802.11ax Wi-Fi 6 backup radio with 19 dBi antenna gain.
How is the WAVE-NANO managed?
The device is managed through UISP and supports Bluetooth management for setup through the UISP application.
How is the WAVE-NANO powered?
The WAVE-NANO uses passive PoE and supports a 44–54V DC range under its current technical specification. Ubiquiti lists a 48V DC, 0.65A Gigabit PoE adapter as included.
