Overview

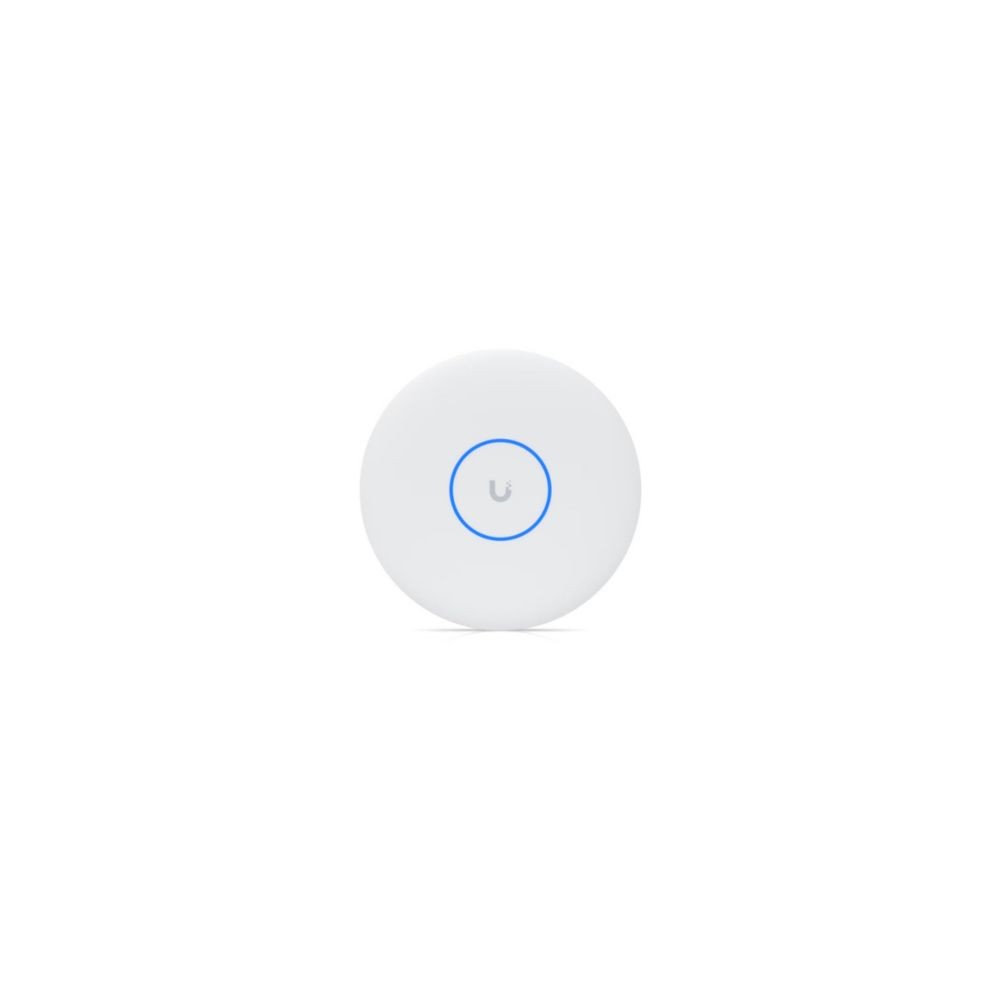

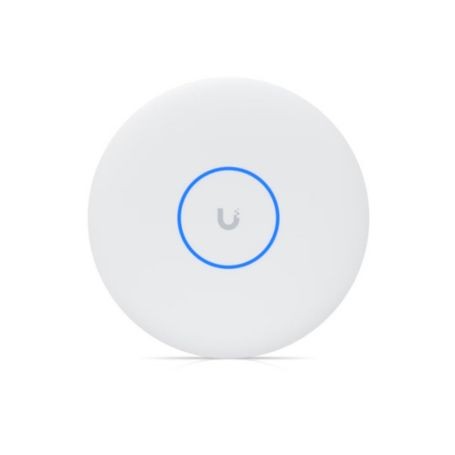

The Ubiquiti U7-Pro-XGS UniFi Pro XGS is a high-capacity WiFi 7 access point designed for demanding wireless networks requiring multi-gigabit wired connectivity. It provides 8 spatial streams across the 2.4GHz, 5GHz, and 6GHz bands, with a 10GbE RJ45 uplink and PoE++ power.
The access point supports up to 500+ clients and covers up to 160 m² (1,750 ft²). Its 5GHz radio uses 4x4 MU-MIMO, while the 2.4GHz and 6GHz radios each use 2x2 MU-MIMO.
WiFi 7 Performance
The U7-Pro-XGS supports 802.11be WiFi 7 and 320MHz channel bandwidth on the 6GHz radio. Ubiquiti specifies maximum PHY data rates of 5.8Gbps on 6GHz, 8.6Gbps on 5GHz, and 688Mbps on 2.4GHz. Actual throughput depends on client capability, channel conditions, configuration, and regulatory environment.
Tri-Band Wireless Design
The access point operates simultaneously across 2.4GHz, 5GHz, and 6GHz. The 5GHz radio provides 4x4 MU-MIMO, while both the 2.4GHz and 6GHz radios provide 2x2 MU-MIMO. Supported channel widths extend up to 240MHz on 5GHz and 320MHz on 6GHz.
10GbE Uplink
A 10GbE RJ45 network interface provides the wired uplink for high-capacity deployments. The access point uses PoE++ and accepts 42.5–57V DC, with a maximum power consumption of 29W.
Wireless Management and Features
The U7-Pro-XGS supports wireless meshing, band steering, fast roaming, radio resource management, zero-wait DFS, real-time spectral analysis, Passpoint, captive portal functions, guest network isolation, PPSK, WiFi speed limiting, client isolation, WiFi schedules, RADIUS over TLS, and dynamic RADIUS-assigned VLANs.
Key Features
- WiFi 7 with 8 spatial streams across 2.4GHz, 5GHz, and 6GHz
- 10GbE RJ45 uplink for high-speed wired connectivity
- Dedicated spectral scanning radio for wireless environment analysis
- Up to 8.6Gbps maximum 5GHz PHY rate and 5.8Gbps maximum 6GHz PHY rate
- Up to 500+ clients and 160 m² (1,750 ft²) coverage area
Applications
- High-density enterprise WiFi deployments
- Multi-gigabit office and campus wireless networks
- WiFi 7 deployments requiring 6GHz connectivity
- Networks using 10GbE access-layer uplinks
- Managed UniFi wireless environments requiring advanced radio monitoring
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | U7-Pro-XGS |
|---|
| Product Type | WiFi 7 Access Point |
|---|
| Product Family | UniFi U7 Pro XGS |
|---|
| WiFi Standard | WiFi 7 (802.11be) |
|---|
| Spatial Streams | 8 |
|---|
| Coverage Area | 160 m² (1,750 ft²) |
|---|
| Maximum Client Count | 500+ |
|---|
| Uplink | 10GbE |
|---|
| Networking Interface | 1x 10GbE RJ45 |
|---|
| Power Method | PoE++ |
|---|
| Maximum Power Consumption | 29W |
|---|
| Supported Voltage Range | 42.5–57V DC |
|---|
| 6GHz MIMO | 2x2 DL/UL MU-MIMO |
|---|
| 5GHz MIMO | 4x4 DL/UL MU-MIMO |
|---|
| 2.4GHz MIMO | 2x2 DL/UL MU-MIMO |
|---|
| 6GHz Maximum Data Rate | 5.8Gbps (BW320) |
|---|
| 5GHz Maximum Data Rate | 8.6Gbps (BW240) |
|---|
| 2.4GHz Maximum Data Rate | 688Mbps (BW40) |
|---|
| 6GHz Antenna Gain | 6dBi |
|---|
| 5GHz Antenna Gain | 6dBi |
|---|
| 2.4GHz Antenna Gain | 4dBi |
|---|
| 6GHz Maximum TX Power | 24dBm |
|---|
| 5GHz Maximum TX Power | 29dBm |
|---|
| 2.4GHz Maximum TX Power | 23dBm |
|---|
| Maximum BSSIDs | 8 per radio |
|---|
| Channel Bandwidth | 20/40/80/160/240/320MHz, depending on radio and standard |
|---|
| Wireless Meshing | Supported |
|---|
| Real-Time Spectral Analysis | Supported |
|---|
| Passpoint | Supported |
|---|
| RADIUS over TLS | Supported |
|---|
| Dimensions | Ø215 x 32.5mm (Ø8.5 x 1.3") |
|---|
| Weight | 800g (1.8lb) |
|---|
| Mounting | Ceiling, Wall |
|---|
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
|---|
| Mount Material | Stainless steel SUS304, galvanized steel SGCC |
|---|
| Operating Temperature | -30 to 40°C (-22 to 104°F) |
|---|
| Operating Humidity | 5–95% noncondensing |
|---|
| Management | Ethernet |
|---|
| NDAA Compliant | Yes |
|---|
| Certifications | CE, FCC, IC, Anatel |
|---|
FAQs
What type of access point is the U7-Pro-XGS?
It is a tri-band WiFi 7 access point with 8 spatial streams, a 10GbE RJ45 uplink, and PoE++ power.
What are the maximum wireless data rates?
Ubiquiti specifies up to 8.6Gbps on 5GHz, 5.8Gbps on 6GHz, and 688Mbps on 2.4GHz. These are maximum PHY rates rather than guaranteed application throughput.
Does the U7-Pro-XGS support 6GHz WiFi?
Yes. The access point includes a 2x2 6GHz radio and supports WiFi 7 channel bandwidths up to 320MHz. Actual 6GHz availability is subject to local regulatory approval.
What Ethernet connection does it use?
The U7-Pro-XGS has one 10GbE RJ45 network interface.
