Detailed Specifications

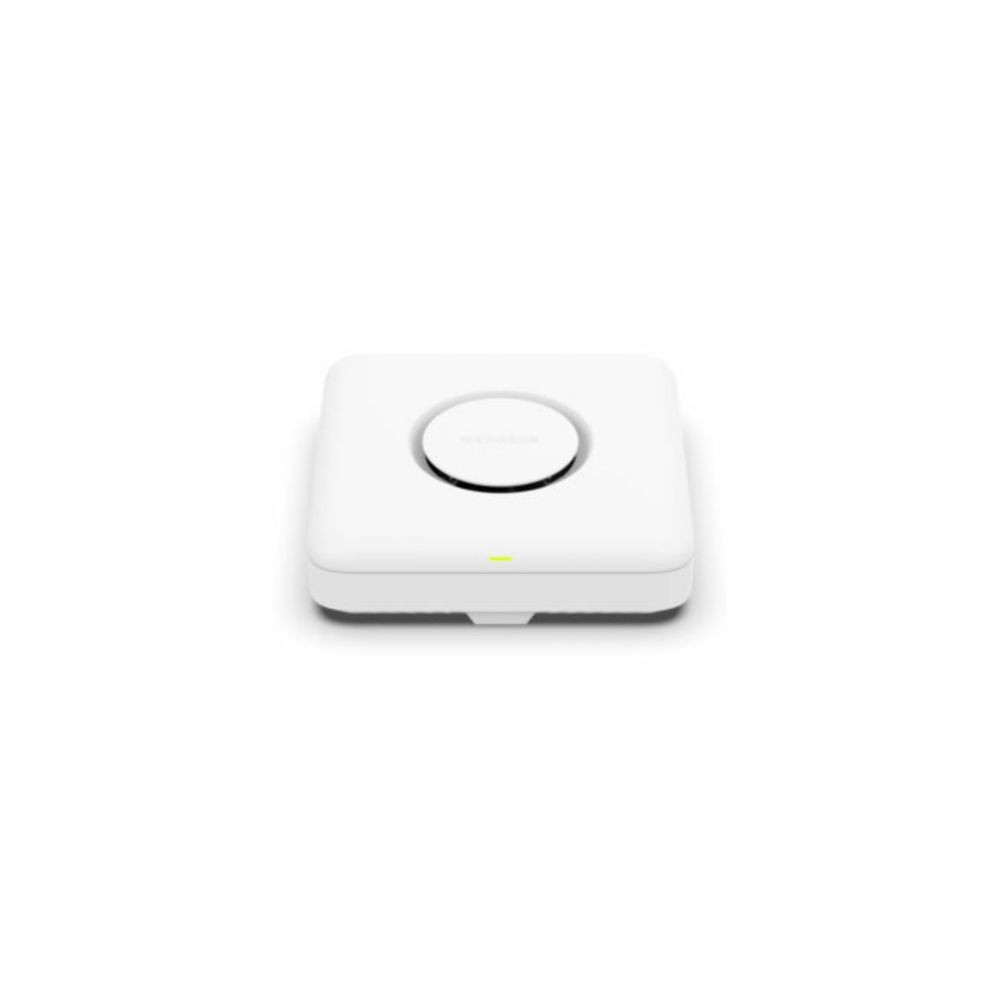

NETGEAR WBE750-100NAS Tri-Band WiFi 7 Access Point
Overview :
The NETGEAR WBE750-100NAS is an Insight-manageable tri-band WiFi 7 access point for business networks requiring high wireless capacity, low latency, and centralized management. It addresses high-density wireless deployments where WiFi 6/6E capacity is becoming a constraint.
It provides up to 18.4Gbps theoretical aggregate throughput across 2.4GHz, 5GHz, and 6GHz bands, with a single 10G/Multi-Gigabit Ethernet port for wired backhaul. The access point supports 4x4 operation on all three bands and 320MHz channels on 6GHz.
The WBE750 is designed for wall or ceiling deployment and uses PoE++ for single-cable power and data. NETGEAR specifies 39W PoE power consumption and Insight cloud management for centralized deployment and monitoring.
It supports WiFi 7 clients while maintaining compatibility with earlier WiFi generations. It is not a router and should not be selected where routing functionality is required; NETGEAR specifies no router mode.
Key Features :
- 18.4Gbps tri-band WiFi 7 theoretical throughput
- 10G/Multi-Gigabit Ethernet for high-speed backhaul
- 4x4 radios across 2.4GHz, 5GHz, and 6GHz bands
- 39W PoE++ power supports single-cable deployment
- NETGEAR Insight enables centralized cloud management
Specifications :
| Specification | Value |
|---|
| Brand | NETGEAR |
| Part Number | WBE750-100NAS |
| Product Type | Tri-Band WiFi 7 Access Point |
| WiFi Standard | IEEE 802.11a/b/g/n/ac/ax/be |
| Wireless Bands | 2.4GHz, 5GHz, 6GHz |
| Wireless Mode | 4x4 on 2.4GHz, 5GHz, and 6GHz |
| Maximum Theoretical Throughput | 18.4Gbps |
| 2.4GHz Throughput | 1,147Mbps |
| 5GHz Throughput | 5,765Mbps |
| 6GHz Throughput | 11,530Mbps |
| Ethernet Interface | 1 x 10G/Multi-Gigabit PoE++ |
| PoE | IEEE 802.3at / 802.3bt |
| PoE Power Consumption | 39W |
| Management | NETGEAR Insight Cloud; local network management |
| Mounting | Wall / ceiling mountable |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Security | WPA2-PSK, WPA3-PSK, WPA2-Enterprise, WPA3-Enterprise |
