Detailed Specifications

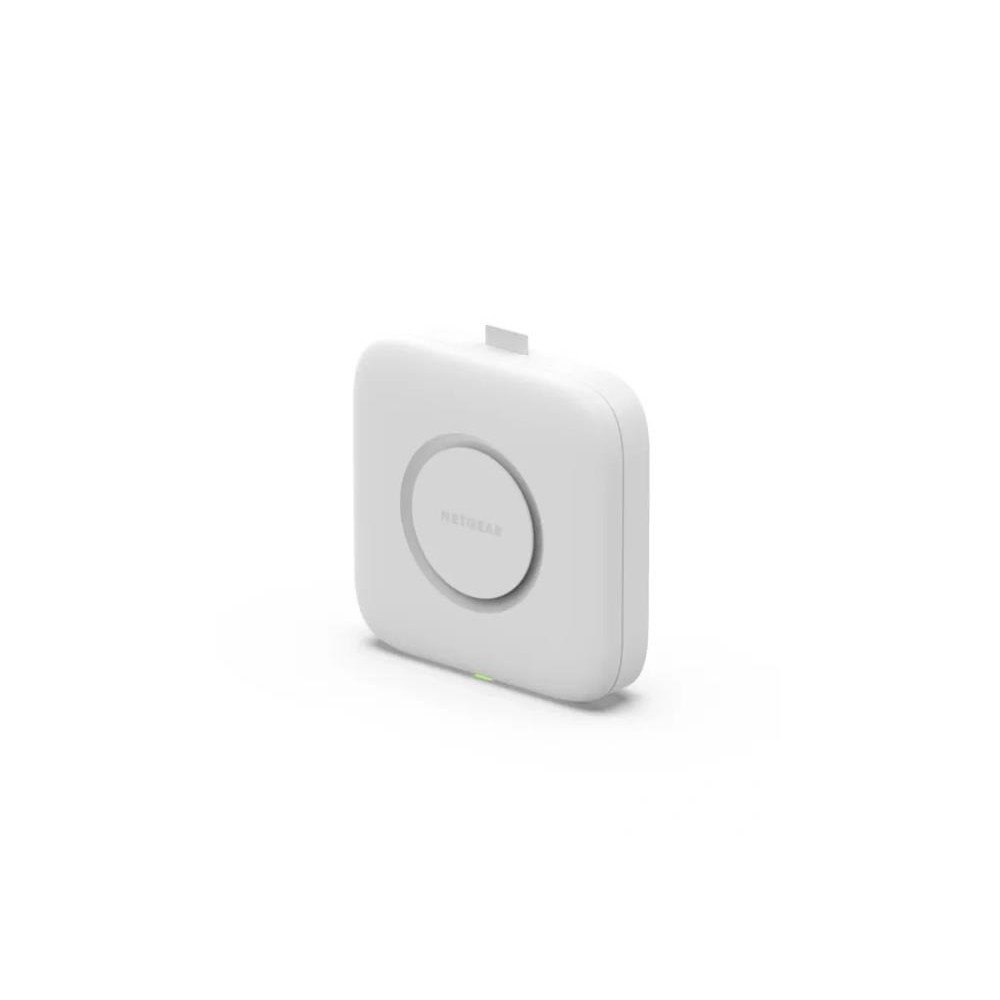

NETGEAR WBE718-111NAS - Wireless Access Point
Overview :
The NETGEAR WBE718-111NAS is a tri-band WiFi 7 (802.11be) cloud-managed wireless access point engineered for high-density small-to-medium enterprise environments.Network administrators, IT teams, and MSPs deploy this access point to eliminate wireless congestion and support high-bandwidth end devices across modern office buildings, educational facilities, healthcare spaces, and hospitality venues.
It operates concurrently across 2.4 GHz, 5 GHz, and 6 GHz bands, delivering an aggregate wireless theoretical throughput of up to 9.4 Gbps (5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz).Featuring a 2x2 MIMO architecture on each band with ultra-wide 320 MHz channel support on 6 GHz, it connects to wired backbones via a single 2.5G Multi-Gigabit Ethernet port powered by IEEE 802.3at PoE+ (25W max consumption).
Designed for discrete ceiling or wall mounting in branch offices, corporate campuses, and edge network locations.Remote central management, network monitoring, and configuration are driven via the NETGEAR Insight Cloud platform without requiring dedicated on-premise hardware controllers. Do not deploy in outdoor locations without proper surge protection enclosures or where local PoE+ (802.3at) power infrastructure is unavailable.
Key Features :
Tri-band WiFi 7 technology delivers up to 9.4 Gbps aggregate speed
2.5G PoE+ Ethernet port provides high-speed data and power input
320MHz channel support on 6GHz band doubles client throughput
Cloud management through NETGEAR Insight for multi-site control
WPA3 security and 8 SSIDs protect corporate network segments
Specifications :
| Parameter | Detail |
| Brand | NETGEAR |
| Part Number | WBE718-111NAS |
| Product Type | Wireless Access Point |
| Wi-Fi Standard | WiFi 7 (802.11be) Tri-Band |
| Maximum Throughput | 9.4 Gbps Aggregate (6GHz: 5765 Mbps, 5GHz: 2882 Mbps, 2.4GHz: 688 Mbps) |
| Physical Interfaces | 1 x 2.5G Multi-Gigabit Ethernet Port (RJ-45) |
| Power Option | IEEE 802.3at PoE+ (Power Consumption: 25W Max) |
| Wireless Configuration | 2x2 (2.4 GHz) + 2x2 (5 GHz) + 2x2 (6 GHz) |
| Channel Width | 6GHz: Up to 320MHz / 5GHz: Up to 160MHz / 2.4GHz: Up to 40MHz |
| Max SSIDs | Up to 8 Wireless Networks |
| Management System | NETGEAR Insight Cloud Management |
| Security Protocols | WPA2, WPA3-Personal, WPA3-Enterprise, OWE, 802.1x RADIUS |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
