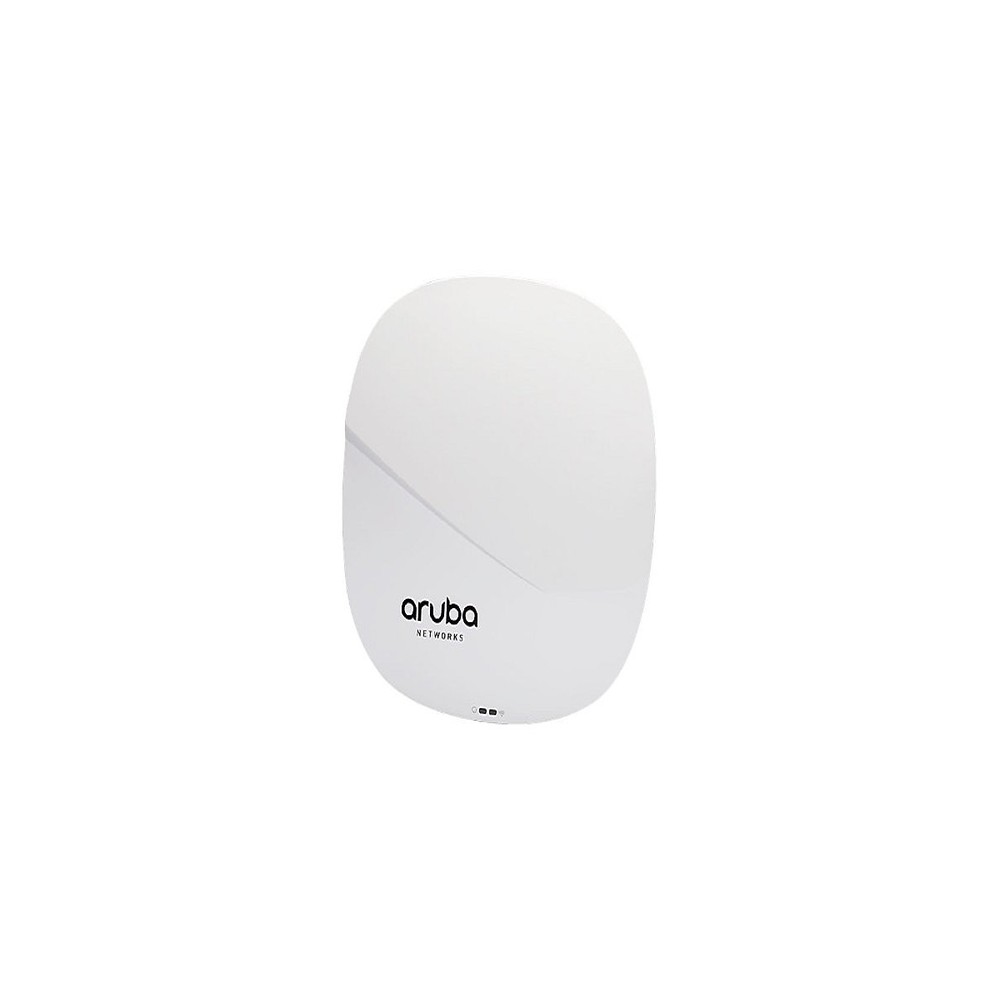

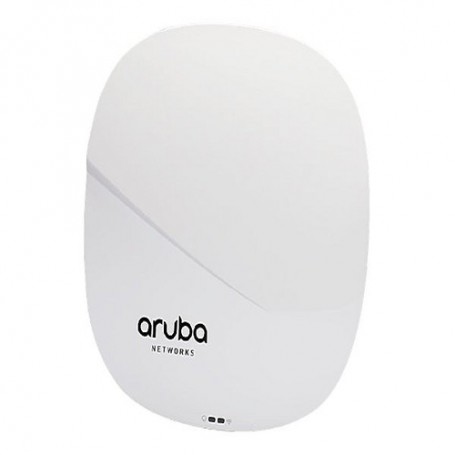

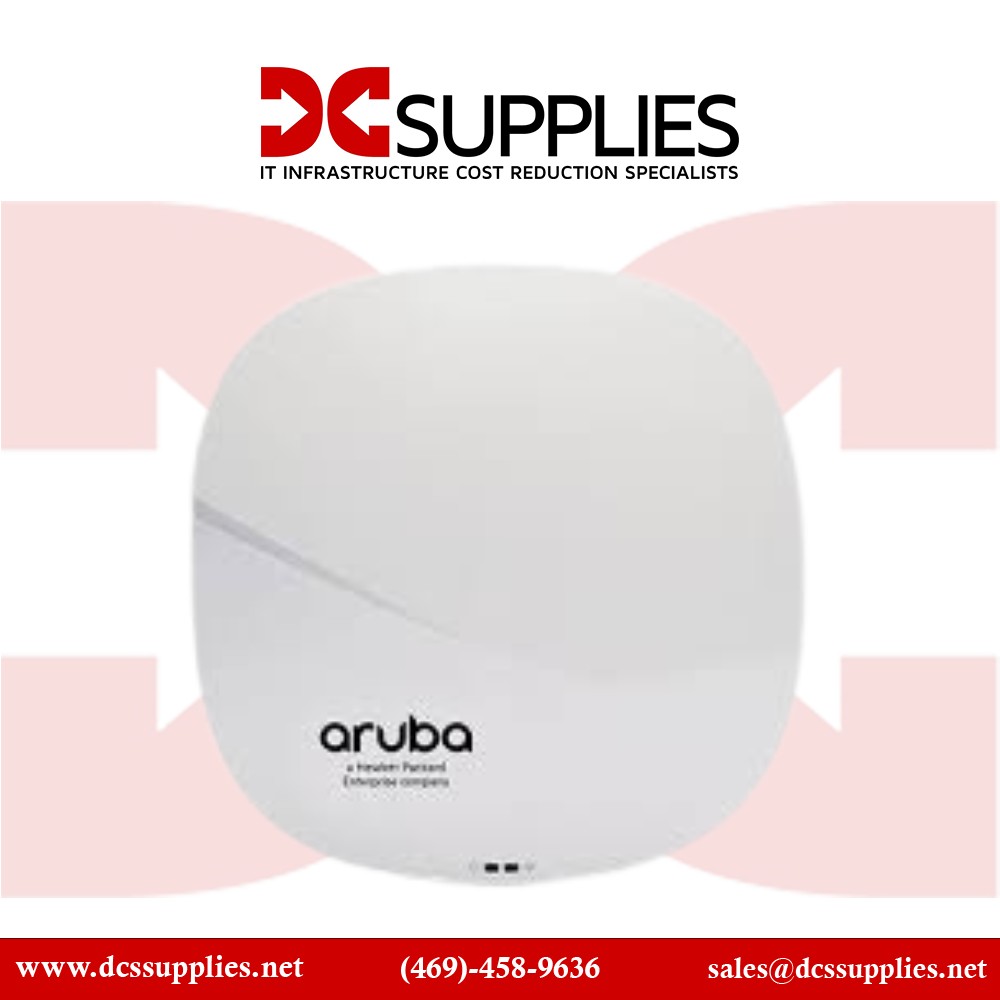

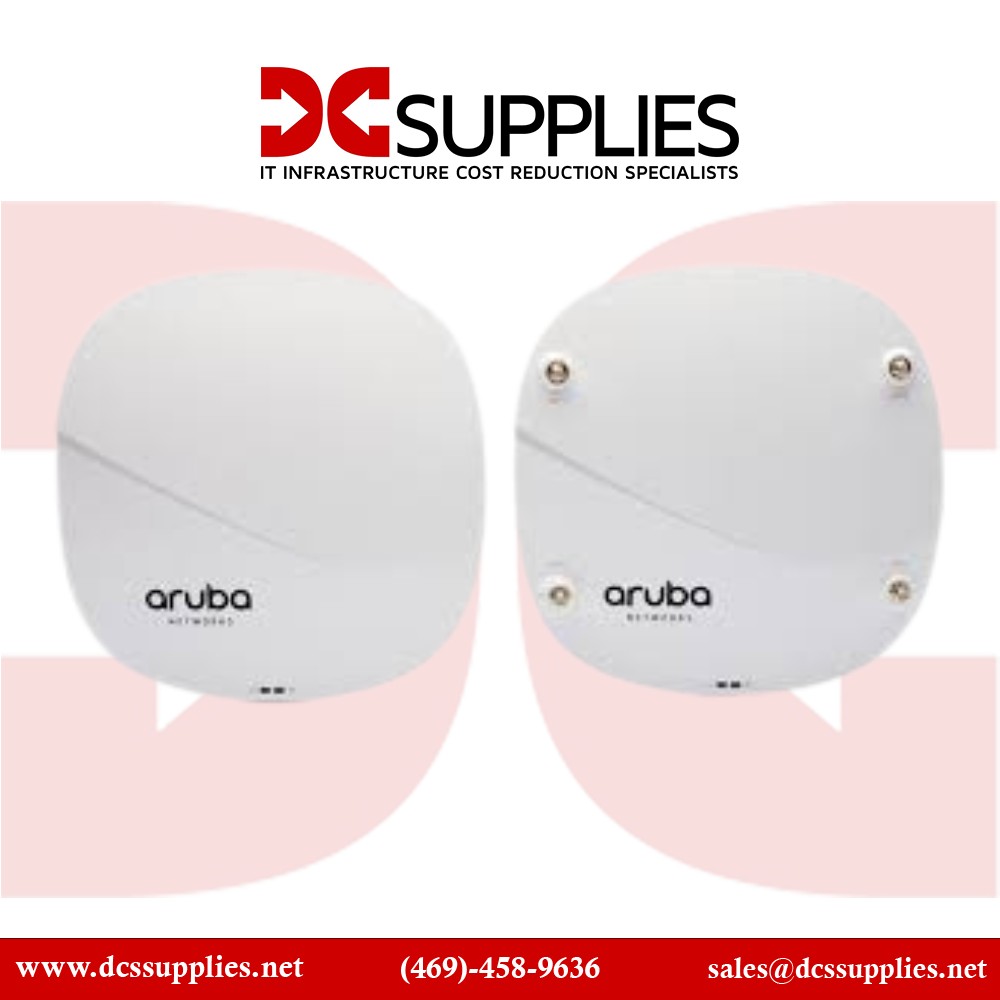

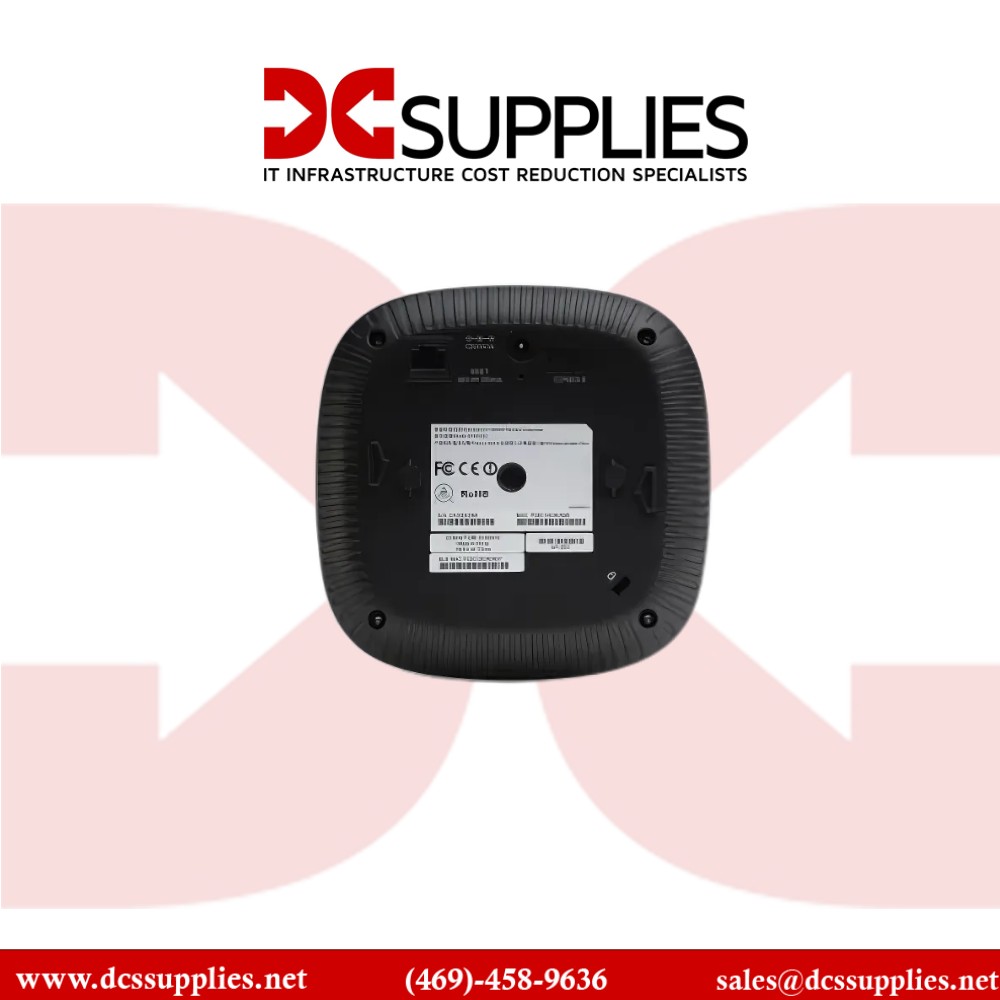

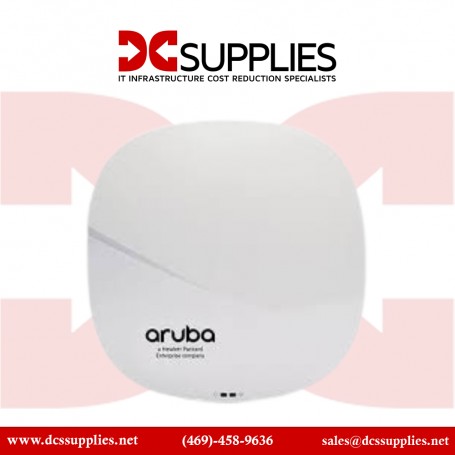

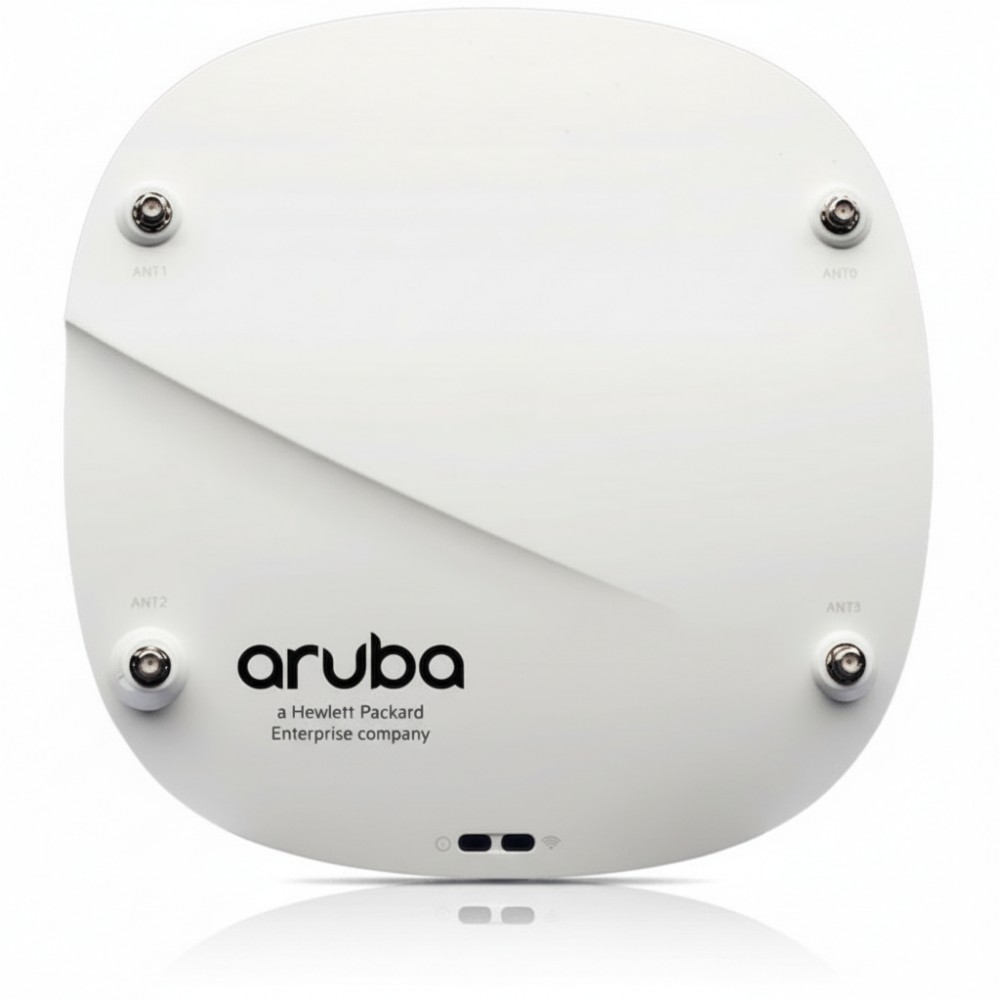

HPE JW807A Aruba Instant IAP-314 (US) - wireless access point

New

HPE JW807A Aruba Instant IAP-314 (US) - wireless...

×




  • New

Detailed Specifications

HPE JW807A

Aruba Instant IAP-314 (US) - Dual-Band 802.11ac Wave 2 Wireless Access Point

The HPE JW807A Aruba Instant IAP-314 (US) is a powerful Wave 2 wireless access point purpose-built for high-density enterprise environments such as offices, education campuses, healthcare facilities, and retail venues. Delivering superior wireless performance and smart RF management, it’s ideal for demanding network infrastructures.

Features

Leveraging 802.11ac Wave 2 with 4x4:4 MU-MIMO capabilities on the 5 GHz band, the IAP-314 provides up to 1.73 Gbps of wireless throughput, ensuring fast, uninterrupted connectivity even in device-heavy environments. It also supports Aruba’s Instant mode, enabling controllerless deployment and effortless scaling. Internal antennas and versatile mounting options make it easy to install in diverse layouts.

Advanced Options

Engineered for enterprise-grade durability and performance, the IAP-314 features ClientMatch technology to intelligently assign devices to the optimal access point, and Adaptive Radio Management (ARM) for maintaining signal quality. Integrated security protocols, PoE+ support, and centralized management via Aruba Instant ensure a seamless, secure, and scalable wireless experience.

Product Key Features

    • 802.11ac Wave 2 with up to 1.73 Gbps on 5 GHz and 300 Mbps on 2.4 GHz

    • 4x4:4 MU-MIMO for faster speeds and more simultaneous connections

    • ClientMatch & Adaptive Radio Management for intelligent RF optimization

    • Enterprise-Grade Security with WPA2/WPA3 and integrated firewall

    • Power Over Ethernet (PoE+) support for simplified deployment

    • Internal Antennas and ceiling/wall mount flexibility

Reliability & Performance

Rated with an MTBF of 1.6 million hours, this drive is built for constant uptime in high-demand server environments. It supports hot-plug functionality, allowing IT teams to replace or scale storage without downtime. Its enterprise-class shock and vibration resistance enhances longevity, while efficient power usage keeps operational costs low in energy-conscious data centers.

Key Features (Bullet List)

    • 802.11ac Wave 2 dual-band access point

    • 4x4:4 MU-MIMO on 5 GHz, 2x2:2 on 2.4 GHz

    • Up to 2.0 Gbps aggregate throughput

    • ClientMatch and Adaptive Radio Management

    • Internal antennas with wall/ceiling mount support

    • WPA2/WPA3 enterprise-grade security

    • PoE+ (802.3at) compatible

    • Aruba Instant virtual controller management

SpecificationDetails
Model Number JW807A
Product Type Dual-Band Wireless Access Point (Wave 2)
Wireless Standards 802.11a/b/g/n/ac Wave 2
Radio Chains/Streams 4x4:4 (5GHz), 2x2:2 (2.4GHz)
Max Data Rates 1.73 Gbps (5GHz), 300 Mbps (2.4GHz)
MIMO Technology MU-MIMO, Beamforming
Antennas Internal omnidirectional
Interface Ports 2 x Gigabit Ethernet (RJ-45), 1 x Console Port
Power Options 802.3at PoE+ (DC optional)
Management Aruba Instant Mode
Security WPA2/WPA3, FIPS, Secure Boot, TPM module
Mounting Options Ceiling or wall mountable
Dimensions (WxDxH) 7.1 in x 7.1 in x 1.6 in
Weight 1.3 lb (600 g)
Operating Temperature 32°F to 122°F (0°C to 50°C)
Humidity Tolerance 5% to 93% (non-condensing)
