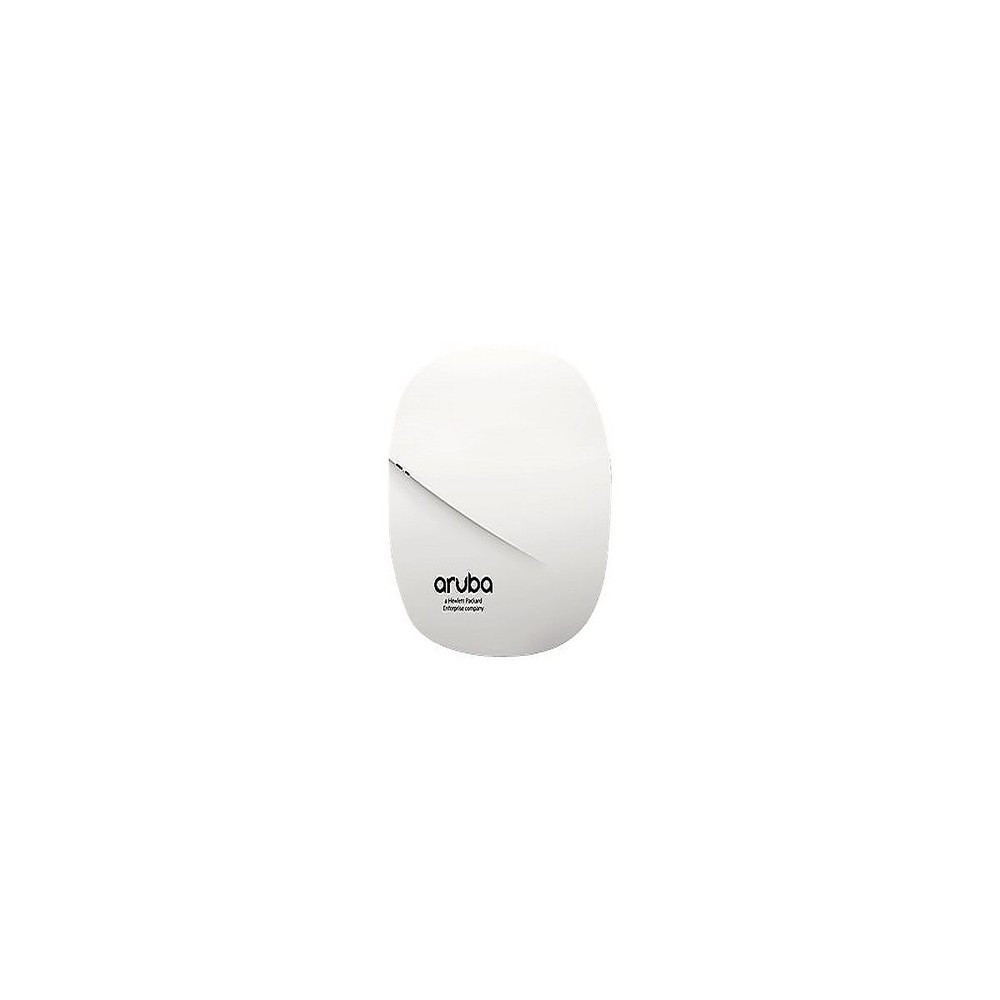

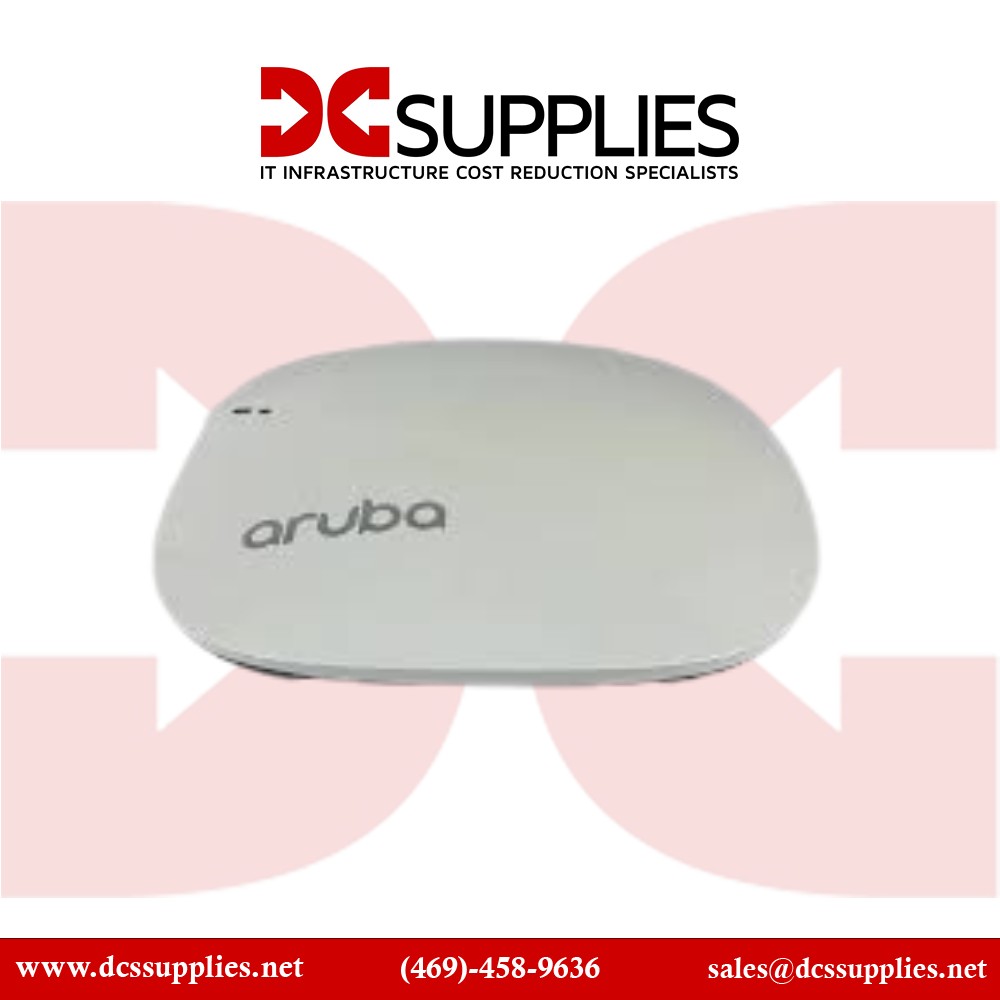

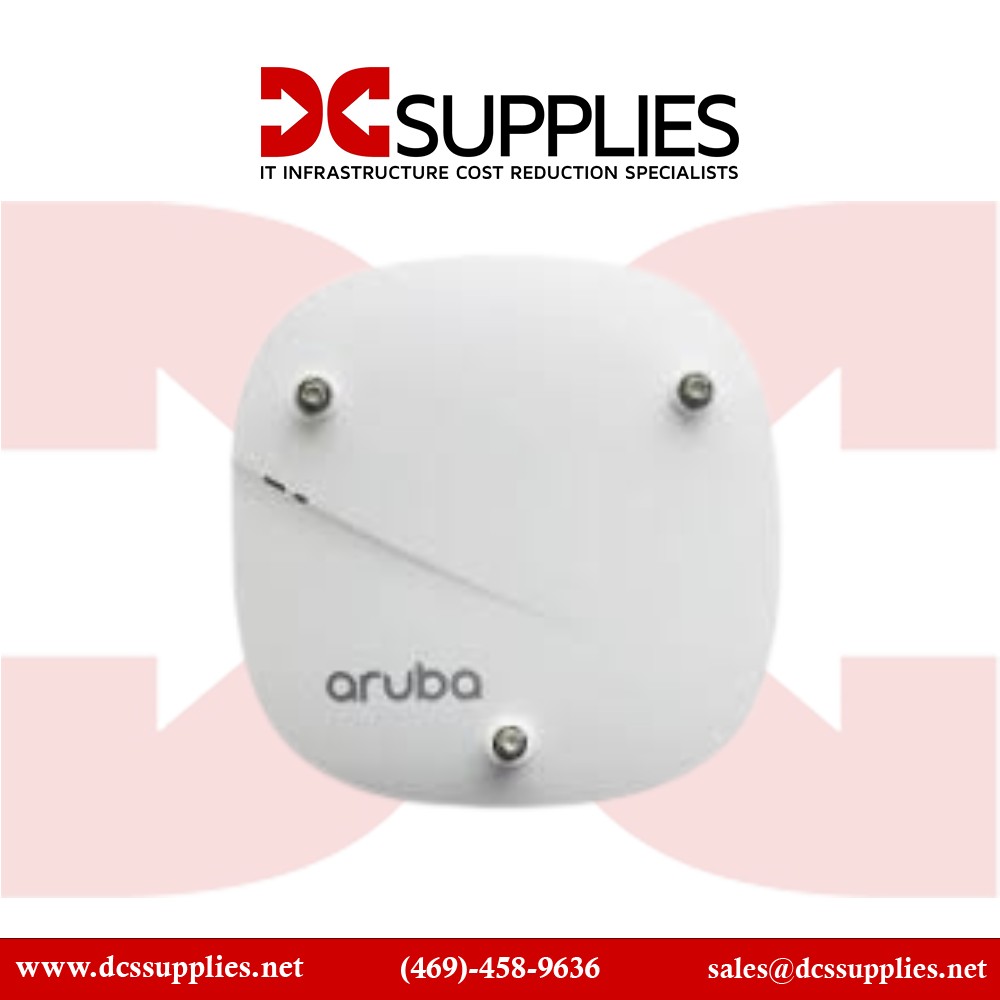

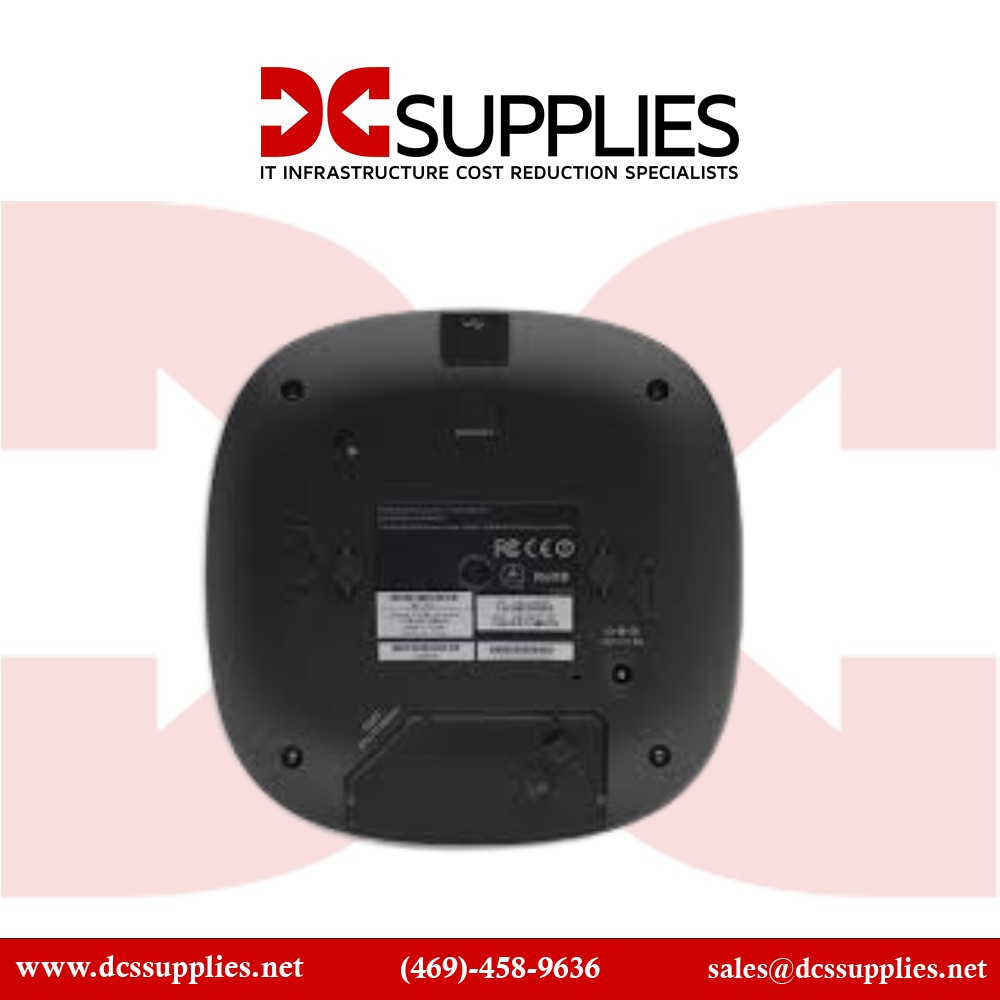

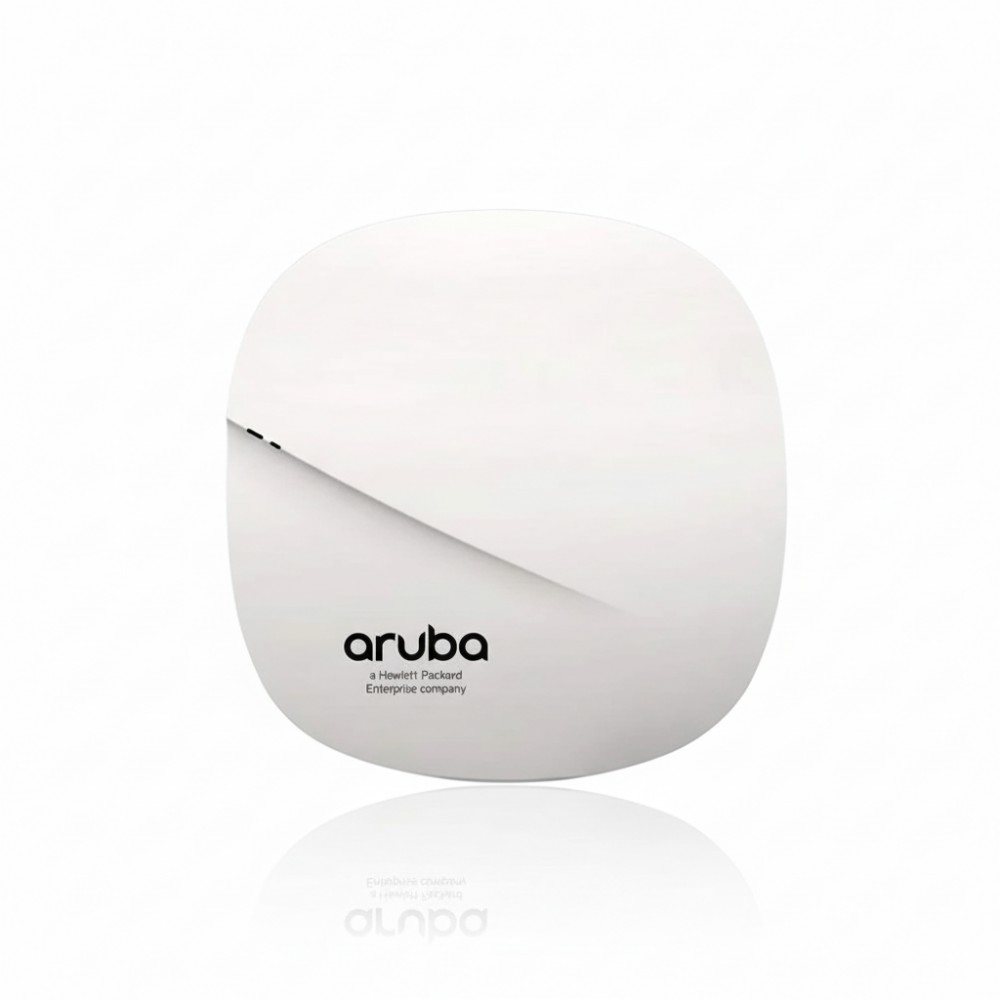

HPE JX946A Aruba Instant IAP-305 - wireless access point

New

HPE JX946A Aruba Instant IAP-305 - wireless access...

×




  • New

Detailed Specifications

HPE JX946A

Aruba Instant IAP-305 - Dual-Band 802.11ac Wave 2 Wireless Access Point

The HPE JX946A Aruba Instant IAP-305 is an enterprise-grade wireless access point that delivers high-speed connectivity and smart performance tuning for dense business environments. Designed to handle modern Wi-Fi needs, this access point is ideal for offices, campuses, retail spaces, and healthcare institutions requiring reliable and scalable wireless infrastructure.

Features

Powered by the latest 802.11ac Wave 2 standard, the IAP-305 supports MU-MIMO and a tri-radio architecture, enabling simultaneous transmission to multiple devices and reducing congestion in high-density areas.

Advanced Options

With integrated Bluetooth for location-based services and seamless Aruba Instant management, it enables a unified and intuitive experience across the wireless network.

Product Key Features

  • Wave 2 802.11ac technology with up to 1.3 Gbps on 5 GHz

  • Tri-Radio Design including built-in Bluetooth Low Energy (BLE)

  • Smart Client Optimization with ClientMatch & Adaptive Radio Management

  • Robust Security with secure tunneling, firewall, and authentication support

  • PoE Support for simplified installation and power management

  • Flexible Mounting Options – wall or ceiling deployment

Reliability & Performance

Built for long-term, mission-critical operations, the IAP-305 is equipped with advanced features like ClientMatch, which steers devices to the best possible AP, and Adaptive Radio Management, which ensures optimized RF performance. Its compact, lightweight design supports Power over Ethernet (PoE), reducing installation complexity, while enterprise-class security ensures trusted network integrity.

Key Features :

    • 802.11ac Wave 2 with MU-MIMO support

    • Dual-band radios (2.4 GHz and 5 GHz) with aggregate throughput up to 1.77 Gbps

    • Third radio for Bluetooth BLE and spectrum analysis

    • Integrated ClientMatch and Adaptive Radio Management

    • Supports WPA2/WPA3, secure tunneling, and policy-based access

    • PoE-enabled with wall/ceiling mount options

    • Managed via Aruba Instant virtual controller

SpecificationDetails
Model Number JX946A
Product Type Wireless Access Point (Dual-Band, Wave 2)
Wireless Standards 802.11a/b/g/n/ac Wave 2
Radio Chains/Streams 3x3:3 (5GHz), 2x2:2 (2.4GHz)
Max Data Rates 1300 Mbps (5GHz), 400 Mbps (2.4GHz)
MIMO Technology Multi-User MIMO (MU-MIMO)
Antennas Internal omnidirectional
Interface Ports 2 × 10/100/1000Base-T Ethernet (RJ-45), 1 Console
Power Options 802.3af / 802.3at Power over Ethernet (PoE)
Third Radio BLE for location services, RF monitoring
Security WPA2/WPA3, WPA-Enterprise, FIPS, Secure Boot
Dimensions (W×D×H) 6.7 in × 6.7 in × 1.5 in
Weight 1.1 lb (500 g)
Operating Temperature 32°F to 122°F (0°C to 50°C)
Humidity Tolerance 5% to 93% (non-condensing)
