Detailed Specifications

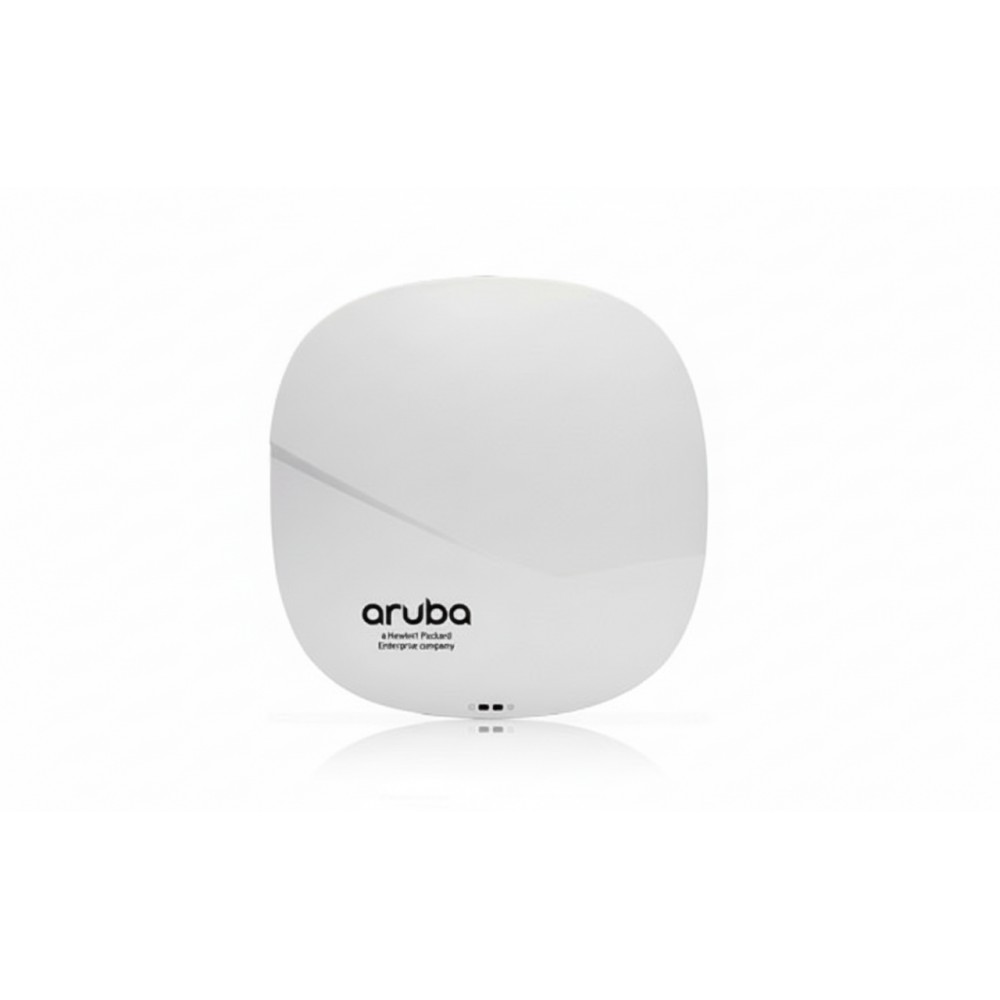

HPE JW813A Aruba Instant IAP-315 (US) Indoor Access Point
Overview
The HPE JW813A is an indoor wireless access point designed for enterprise IT and network teams deploying high-density Wi-Fi environments in offices, campuses or shared spaces. It supports dual-band operation with 2.4 GHz and 5 GHz radios and incorporates 4×4:4 MU-MIMO capability, enabling the system to serve multiple wireless clients simultaneously and efficiently in modern mobile-first settings. The unit includes integrated antennas, supports wall or ceiling mounting, and can be powered via Power over Ethernet (PoE) or external adapter. It integrates with the Aruba Instant network architecture, allowing it to function as part of a simplified controllerless Wi-Fi installation while still supporting advanced features including ClientMatch, BLE beaconing and RF monitoring. Deployment is suited for enterprise floor-plates, branch offices or campus zones requiring responsive, scalable Wi-Fi access with simplified operations.
Key Features
Dual-radio 802.11ac MU-MIMO support (4×4:4 on 5 GHz, 2×2:2 on 2.4 GHz).
Integrated antennas, wall/ceiling mountable design for flexibility.
PoE or optional DC power input for retrofit and new-install use.
BLE beaconing and integrated RF monitoring functions for IoT and location services.
Controllerless Aruba Instant mode enabling rapid setup, cluster formation and management.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | JW813A |
| Product Type | Aruba Instant IAP-315 Indoor Wireless Access Point |
| Installed Processor | Integrated wireless SoC |
| Processor Supported (Max) | N/A |
| Memory Installed | N/A |
| Memory Slots | N/A |
| Maximum Memory Supported | N/A |
| Drive Bays | N/A |
| Storage Controller | N/A |
| Network Adapter | Dual-radio Wi-Fi: 802.11ac (2.4 GHz and 5 GHz) |
| Form Factor (H × W × D) | 1.9 in × 7.2 in × 7.1 in |
| Weight (lbs) | Approx. 1.3 lbs |
| Power Supply | PoE 802.3at/af or 12 V DC external |
| Rack Units | N/A |
