Detailed Specifications

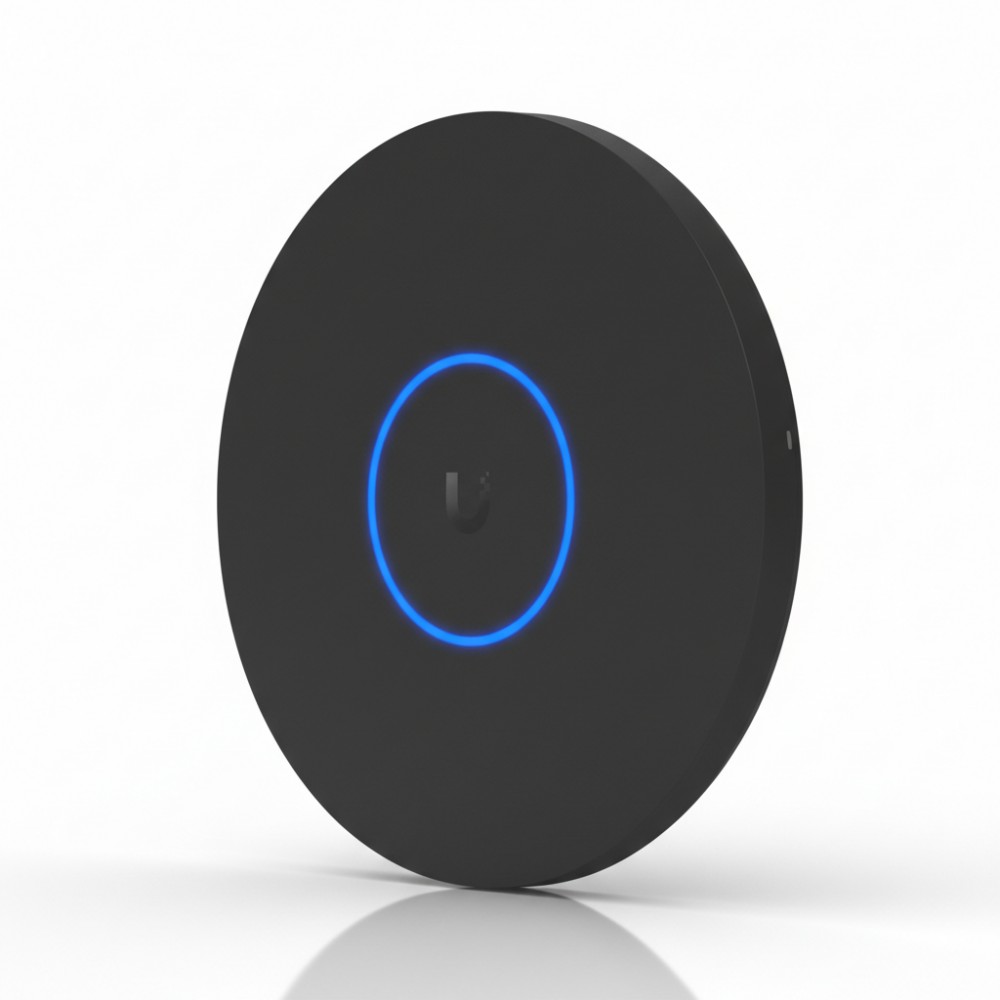

Ubiquiti U7-Pro-XGS-US Wi-Fi 7 8-Stream Access Point
Overview
The Ubiquiti U7-Pro-XGS-US is an enterprise-grade Wi-Fi 7 access point designed for high-density indoor wireless deployments, supporting 2.4 GHz, 5 GHz, and 6 GHz bands with eight spatial streams. It delivers multi-gigabit throughput for large client counts and advanced RF management for spectrum-dense environments. The unit mounts to ceilings or walls and is powered via PoE++ for single-cable data and power delivery. It fits in campuses, offices, schools, or retail locations running UniFi network management systems.
Key Features
Tri-band Wi-Fi 7 with eight streams
10 GbE uplink with PoE++ support
Ceiling/wall mount design
Dedicated spectral scanning radio
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | U7-Pro-XGS-US |
| Product Type | Wi-Fi 7 Indoor Access Point |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Spatial Streams | 8 |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Maximum Data Rate | Up to ~15 Gb/s aggregate |
| Uplink Interface | 1× 10 GbE RJ45 |
| Power Method | PoE++ |
| Coverage Area | ~160 m² / 1,750 ft² |
| Maximum Clients | 500+ |
| Mounting | Ceiling, Wall |
| Operating Temp | -30 °C to 40 °C |
| Antenna Gain | 6 dBi (5/6 GHz), 4 dBi (2.4 GHz) |
| Supported MIMO | 2×2 (6 GHz), 4×4 (5 GHz), 2×2 (2.4 GHz) |
