Detailed Specifications

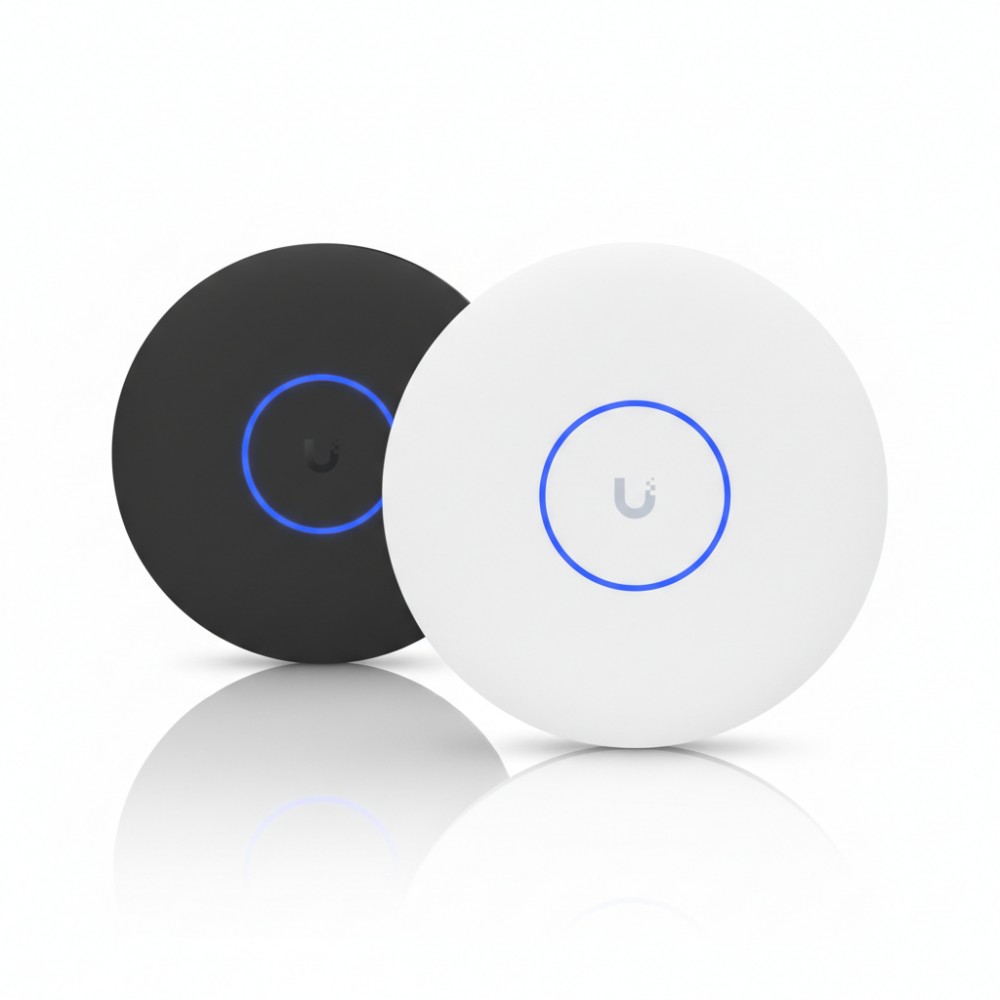

Ubiquiti U7-PRO-XG-US Wi-Fi 7 Tri Band Access Point
Overview
U7-PRO-XG-US is a tri-band Wi-Fi 7 access point designed for enterprise and high-density wireless deployments. It delivers up to 10.8 Gb/s aggregate throughput across the 2.4 GHz, 5 GHz, and 6 GHz bands with six spatial streams for simultaneous multi-client service. The unit supports PoE+ power over a 10 GbE uplink port, enabling simplified installation in ceiling or wall locations. It fits in office, campus, and public venue environments where high client counts and peak throughput are required.
Key Features
Wi-Fi 7 (802.11be) tri-band support
Six-stream MU-MIMO radios
1× 10 GbE PoE+ uplink port
Ceiling/wall mountable design
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | U7-PRO-XG-US |
| Product Type | Wi-Fi 7 Access Point |
| Wireless Standard | IEEE 802.11be (Wi-Fi 7) tri-band |
| Frequency Bands | 2.4 GHz / 5 GHz / 6 GHz |
| Max Aggregate Throughput | 10,788 Mb/s |
| Spatial Streams | 6 |
| Antenna | Internal, ~6 dBi gain |
| Uplink Interface | 1× RJ45 10 GbE (PoE+) |
| Power Method | PoE+ (802.3at) |
| Power Consumption | 22 W |
| Supported Clients | 300 + devices |
| Mount Options | Ceiling, wall |
| Operating Temp | −30 °C to 40 °C |
| Weight | ~750 g |
