Detailed Specifications

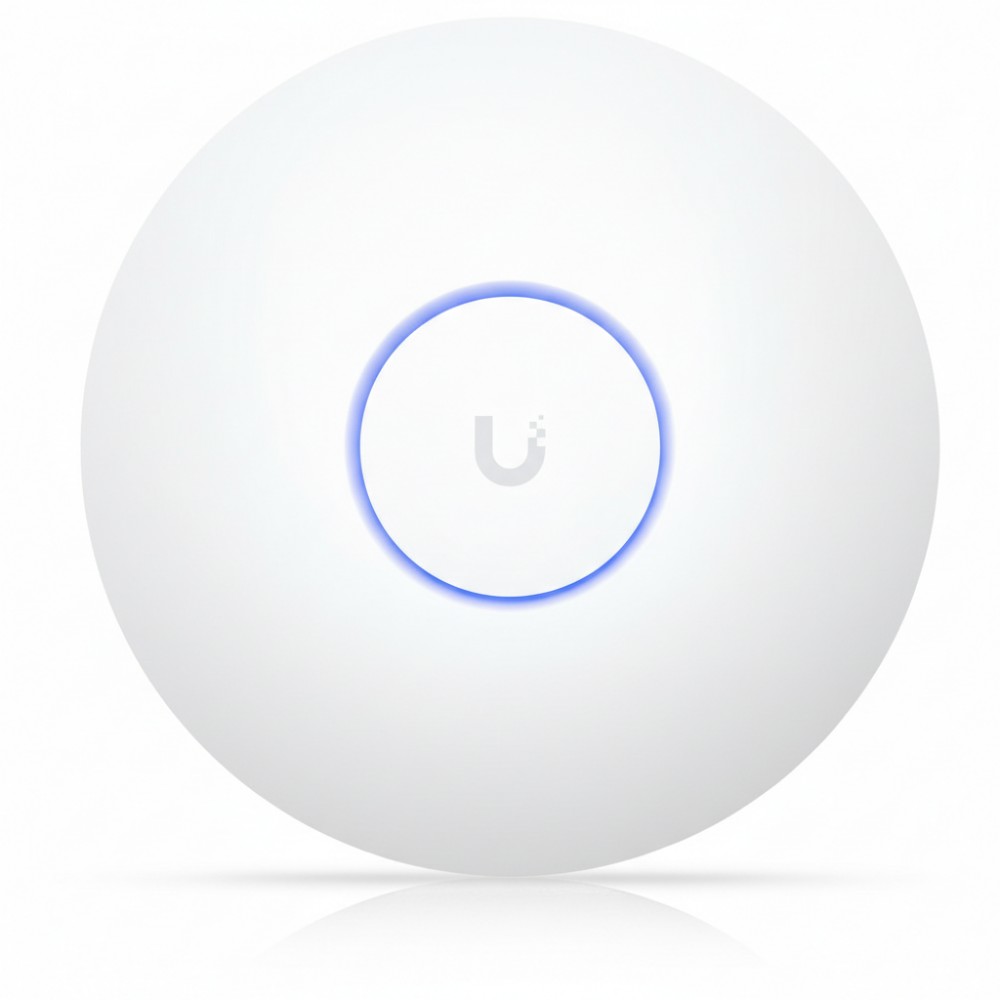

Ubiquiti U7-LR-US Long-Range WiFi 7 Access Point
Overview
The Ubiquiti U7-LR-US is a long-range WiFi 7 access point engineered to deliver extended wireless coverage and high client capacity in enterprise and campus environments. It operates across multiple frequency bands with advanced OFDMA and MU-MIMO efficiency to support dense device deployments. Designed for offices, schools, and large indoor spaces, it improves coverage while maintaining multi-gigabit wireless performance. The unit integrates with UniFi Network for centralized configuration, monitoring, and policy management.
Key Features
WiFi 7 technology with extended coverage
Multi-gigabit uplink for high throughput
Optimized for dense client environments
UniFi Network centralized management
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | U7-LR-US |
| Product Type | Wireless access point |
| WiFi Standard | IEEE 802.11be (WiFi 7) |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Spatial Streams | 2×2 (2.4 GHz), 4×4 (5 GHz), 2×2 (6 GHz) |
| Maximum Data Rate | Up to 7.2 Gbps aggregate |
| MIMO Technology | MU-MIMO & OFDMA |
| Ethernet Port | 1 × 2.5 GbE RJ45 |
| Power Method | PoE+ (802.3at) |
| Max Power Consumption | 22 W |
| Antenna Type | Internal directional antennas |
| Mounting | Ceiling or wall mount |
| Operating Temperature | −10°C to 50°C |
| Management Platform | UniFi Network |
