Detailed Specifications

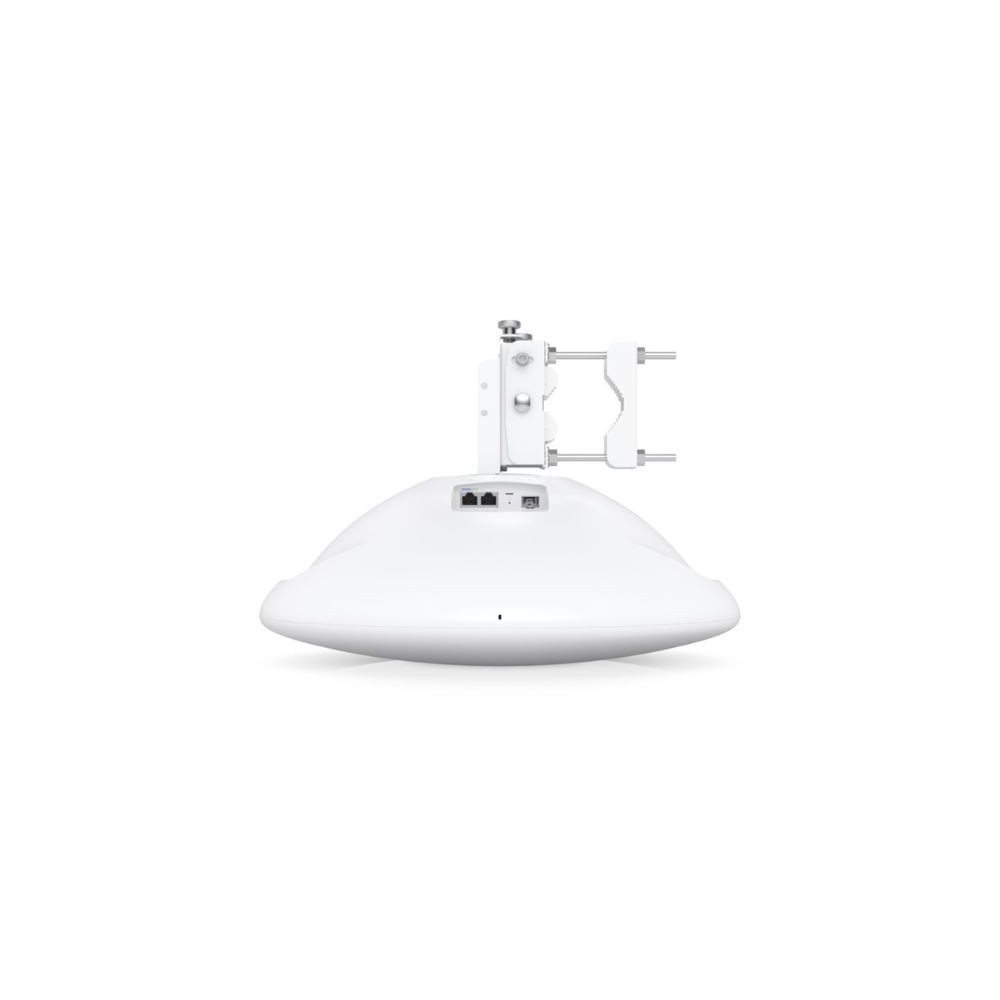

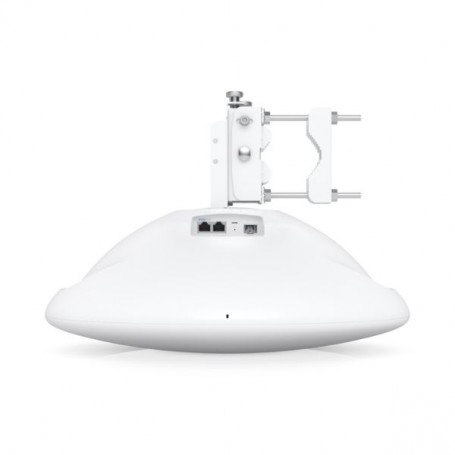

Ubiquiti WAVE-PRO-US 60 GHz Point-to-Multipoint AP Access Point
Overview
The Ubiquiti WAVE-PRO-US is an outdoor Point-to-Multipoint (PtMP) access point operating in the 60 GHz band to provide high-capacity wireless backhaul to compatible subscriber units. It delivers multi-gigabit throughput with a built-in 5 GHz radio for link reliability and interference avoidance, and includes a single Gigabit Ethernet PoE interface for data and power. The weather-resistant IPX6 housing and pole mounting hardware are designed for exposed outdoor environments such as campuses, urban deployments, and mixed-use connectivity zones. It integrates with the UISP management platform for provisioning, monitoring, and performance optimization.
Key Features
• 60 GHz PtMP primary radio
• Built-in 5 GHz backup/management radio
• Gigabit Ethernet PoE uplink
• IPX6 outdoor enclosure
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | WAVE-PRO-US |
| Product Type | Access Point |
| Wireless Bands | 60 GHz primary, 5 GHz backup |
| Max Throughput | Up to ~4 Gb/s (60 GHz) |
| Backup 5 GHz | 802.11ac Wave 2 |
| Ethernet Ports | (1) Gigabit RJ45 PoE |
| PoE | Passive PoE 44-54 V DC |
| Power Consumption | ~12 W |
| Enclosure Rating | IPX6 weather-resistant |
| Mounting | Pole mount hardware included |
| Antenna | Integrated high-gain array |
| Operating Temp | −40 °C to 60 °C |
| Dimensions | 250 × 230 × 90 mm |
| Weight | ~1.2 kg |
