Detailed Specifications

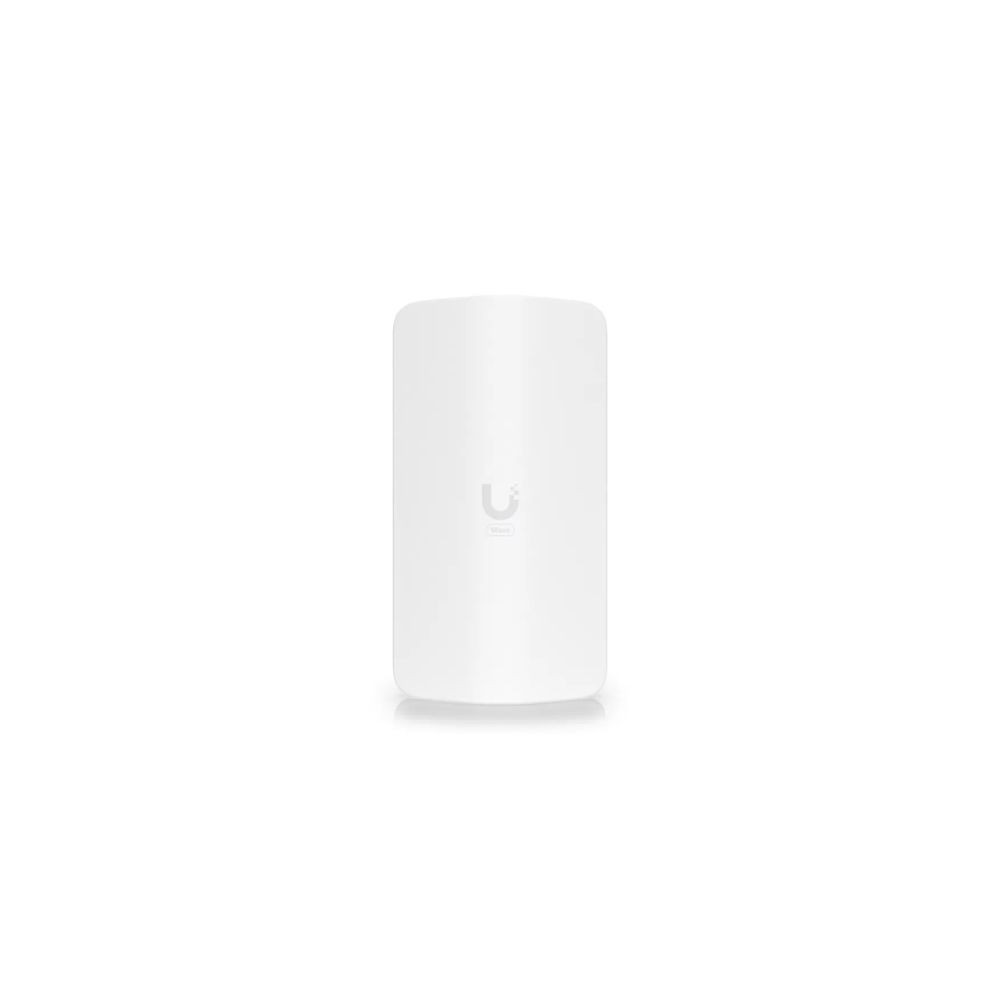

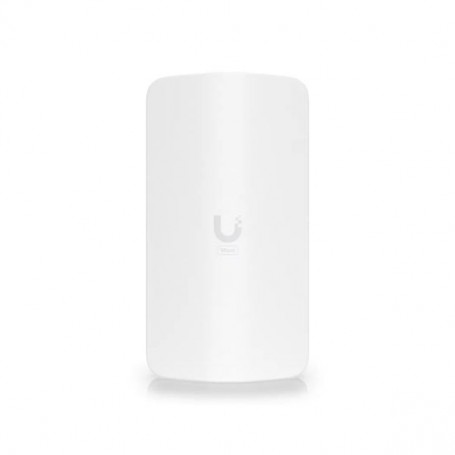

Ubiquiti WAVE-AP-MICRO-US 60 GHz Micro PtMP AP Access Point
Overview
The Ubiquiti WAVE-AP-MICRO-US is a compact outdoor Point-to-Multipoint access point operating in the 60 GHz band to deliver high-capacity wireless links to compatible subscriber units. It builds high-speed backhaul for short-range connections using 60 GHz LOS propagation and integrates a backup 5 GHz Wi-Fi radio for resilience. A single Gigabit Ethernet PoE port provides data and power while the IPX6 weather-resistant enclosure supports exposed outdoor deployments. This unit is used in micro-cell extensions, campus links, and dense urban wireless bridging where fiber or wired backhaul is impractical.
Key Features
• 60 GHz PtMP micro AP radio
• Built-in 5 GHz backup Wi-Fi
• (1) GbE PoE uplink
• IPX6 outdoor rugged housing
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | WAVE-AP-MICRO-US |
| Product Type | Access Point |
| Wireless Bands | 60 GHz primary, 5 GHz backup |
| Throughput | Up to ~1.5 Gb/s (60 GHz) |
| Backup Wi-Fi | 5 GHz 802.11ac |
| Ethernet Ports | (1) Gigabit RJ45 PoE |
| PoE | Passive PoE 44-54 V DC |
| Power Consumption | ~8-10 W |
| Enclosure Rating | IPX6 |
| Mounting | Pole mount |
| Processor | Dual-core ARM |
| Operating Temp | −40 °C to 60 °C |
| Dimensions | 110 × 110 × 50 mm |
| Weight | 280 g |
