Detailed Specifications

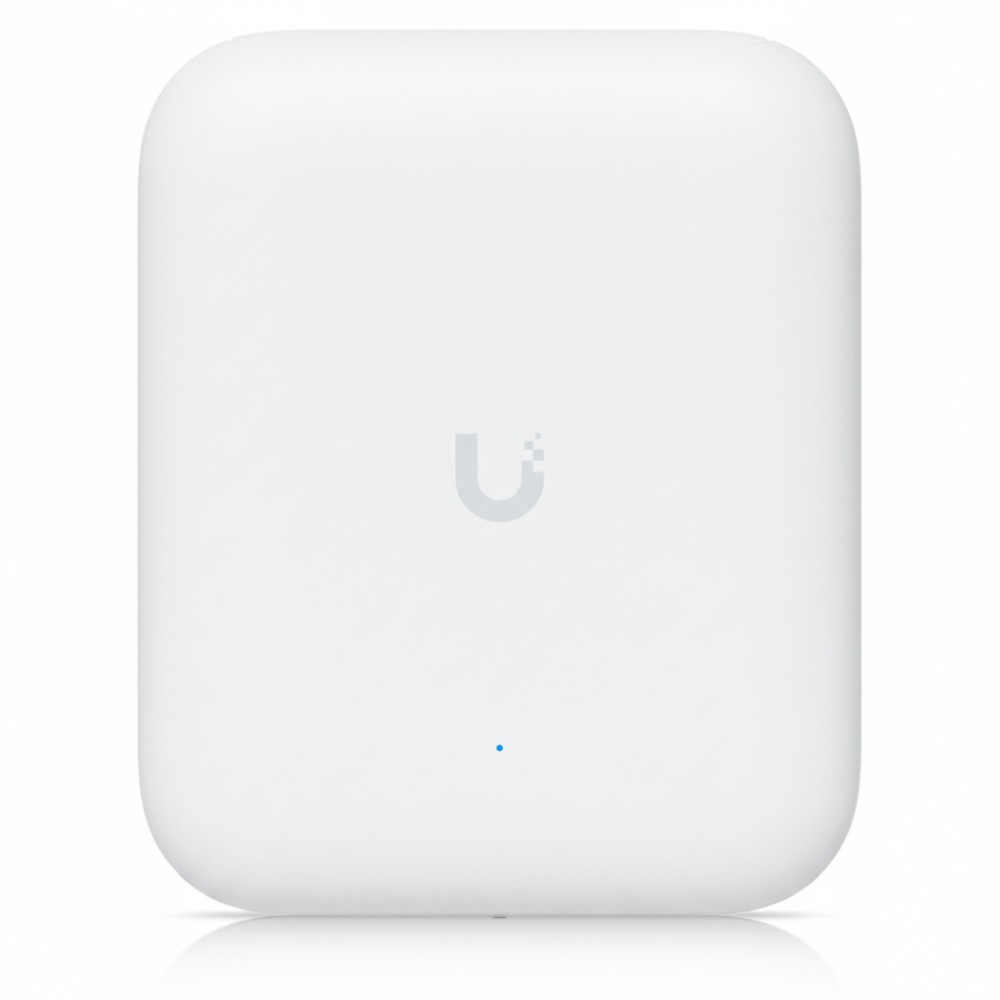

Ubiquiti U7-OUTDOOR-US Outdoor Wi Fi 7 AP
Overview
The Ubiquiti U7-OUTDOOR-US is an outdoor Wi-Fi 7 access point built for high-capacity wireless coverage in exposed environments. It supports dual-band 802.11be with four spatial streams, delivering multi-gigabit throughput and robust client handling for outdoor networks. This unit is weatherproof with versatile wall and pole mounting for campuses, public venues, and large outdoor spaces. Managed through the UniFi Network controller, it integrates into existing UniFi infrastructures for unified configuration and monitoring.
Key Features
Dual-band Wi-Fi 7 (802.11be) support
2.5 GbE PoE+ uplink for high throughput
IPX6 weatherproof outdoor enclosure
Four spatial streams with mixed antennas
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | U7-OUTDOOR-US |
| Product Type | Outdoor Wi-Fi 7 Access Point |
| Wi-Fi Standard | 802.11be (Wi-Fi 7), a/b/g/n/ac/ax |
| Frequency Bands | 2.4 GHz & 5 GHz |
| Max Throughput | ~4.3 Gbps |
| Spatial Streams | 4 |
| Ethernet Ports | 1× 2.5 GbE RJ45 PoE+ |
| Power Method | PoE+ (802.3at) |
| Weatherproof Rating | IPX6 |
| Mounting | Wall, Pole |
| Antennas | 1 internal directional, 2 external omni |
| Max TX Power | 5 GHz: 26 dBm, 2.4 GHz: 23 dBm |
| Clients Supported | ~200-250+ |
| Operating Temp | −30 °C to 60 °C |
| Dimensions | 208×170×54.5 mm |
