Detailed Specifications

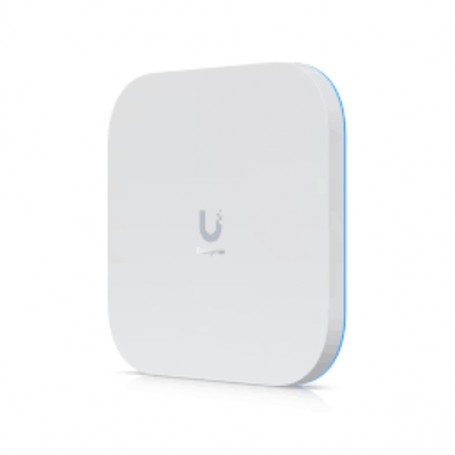

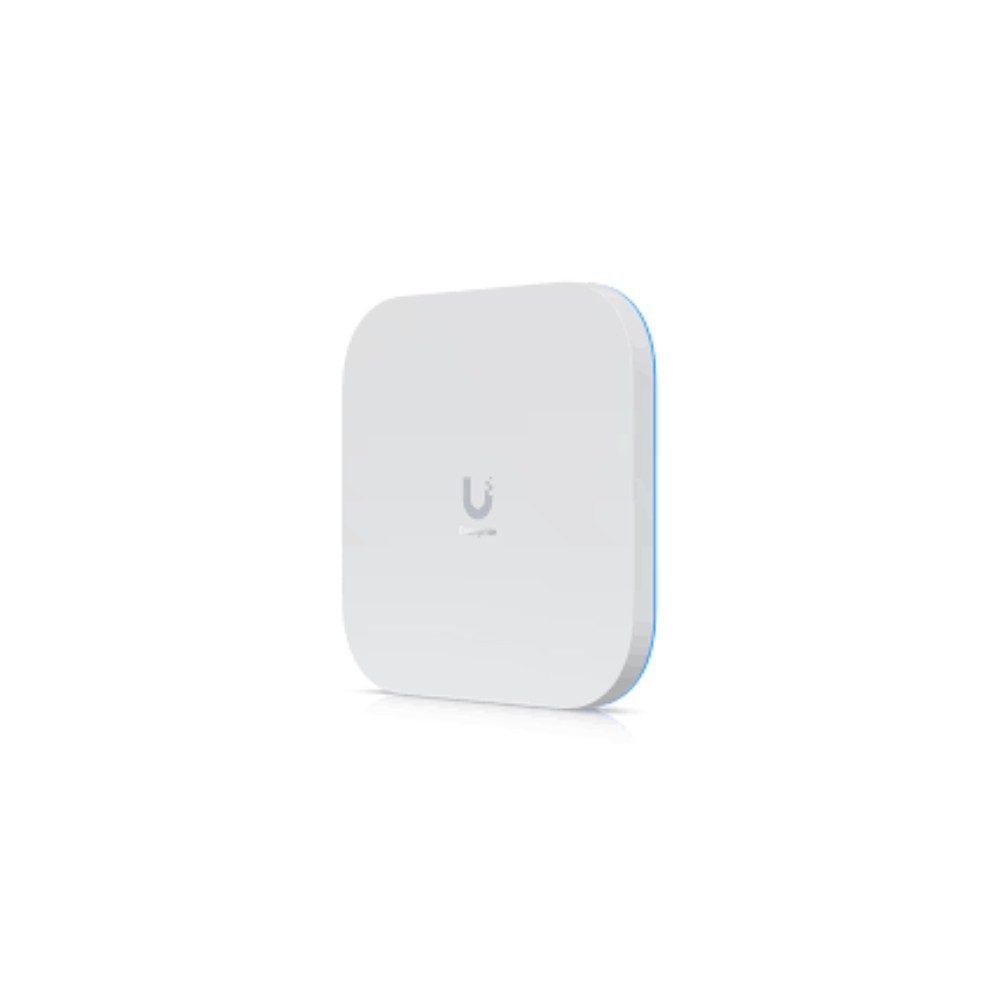

Ubiquiti E7-US Wi-Fi 7 Enterprise Access Point
Overview
The Ubiquiti E7-US is an enterprise-grade indoor/outdoor Wi-Fi 7 access point built for high-density wireless deployments requiring broad coverage and multi-gigabit performance. It delivers tri-band Wi-Fi 7 with 10 spatial streams, integrated directional antennas with PRISM RF filtering, and redundant uplink options via 10 GbE and 1 GbE ports. The AP supports PoE++ power and mounts on walls, ceilings, or poles for flexible placement across campus buildings, large venues, and outdoor spaces. With centralized management through UniFi Network controller, it handles large client counts and advanced radio features while maintaining resilience and performance.
Key Features
• Tri-band Wi-Fi 7 with 10 streams
• 10 GbE + 1 GbE uplink ports
• PRISM RF filtering tech
• Weather-rated for indoor/outdoor use
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | E7-US |
| Product Type | Wi-Fi 7 Enterprise Access Point |
| Wireless Standard | IEEE 802.11be (Wi-Fi 7), 802.11ax/ac/n/g/b/a |
| Spatial Streams | 10 |
| Frequency Bands | 2.4 GHz / 5 GHz / 6 GHz |
| Max Data Rate (6 GHz) | 11.5 Gbps |
| Max Data Rate (5 GHz) | 8.6 Gbps |
| Max Data Rate (2.4 GHz) | 688 Mbps |
| Ports | (1) 10 GbE RJ45, (1) 1 GbE RJ45 |
| Power Method | PoE++ (42.5-57 V DC) |
| Max Power Consumption | 44 W |
| Antennas | Internal directional array |
| Weather Rating | IPX6, up to IP67 with kit included |
| Mounting | Wall, ceiling, pole options |
| Max Clients Supported | 1000+ |
| Dimensions | 250 × 250 × 45.5 mm |
| Weight | 2.2 kg |
