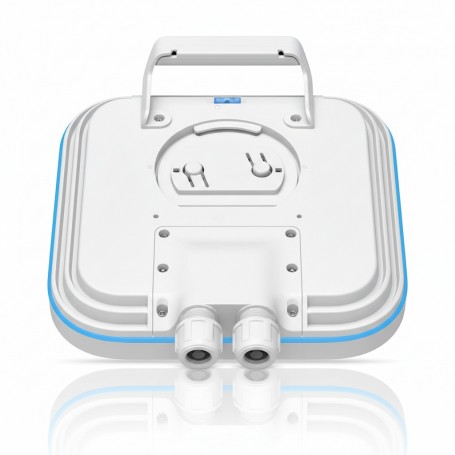

Ubiquiti E7-Campus-US Wi-Fi 7 Enterprise AP
Overview
The Ubiquiti E7-Campus-US is an enterprise-grade indoor/outdoor Wi-Fi 7 access point designed to deliver high-capacity wireless connectivity for dense environments such as corporate campuses, large venues, and public spaces. It provides tri-band Wi-Fi 7 performance with 10 spatial streams, internal directional antennas, and advanced RF filtering to maximize throughput and spectrum efficiency. The AP includes a 10 GbE uplink and a redundant 1 GbE port for resilient wired connectivity while supporting PoE++ power delivery. This device is suitable for large-scale deployments where coverage, client density, and high throughput are priorities and can be centrally managed via a UniFi Network controller.
Key Features
• Tri-band Wi-Fi 7 with 10 spatial streams
• Integrated directional high-gain antennas
• 10 GbE uplink + redundant 1 GbE port
• PoE++ power with weatherproof enclosure
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | E7-Campus-US |
| Product Type | Wi-Fi 7 Enterprise Access Point |
| Wireless Standard | IEEE 802.11be (Wi-Fi 7), 802.11ax/ac/n |
| Spatial Streams | 10 |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Antenna Type | Integrated directional array |
| Max Data Rate (6 GHz) | 11.5 Gbps (320 MHz) |
| Max Data Rate (5 GHz) | 8.6 Gbps |
| Max Data Rate (2.4 GHz) | 688 Mbps |
| Ethernet Ports | (1) 10 GbE RJ45, (1) 1 GbE RJ45 |
| Power Method | PoE++ (4PPoE), 42.5-57 V DC |
| Max Power Consumption | 44 W |
| Weather Rating | IPX6 (IP67 with waterproof kit) |
| Operating Temp | −30 °C to 60 °C |
| Dimensions | 250 × 250 × 45.5 mm |
| Weight | 2.2 kg |
