Detailed Specifications

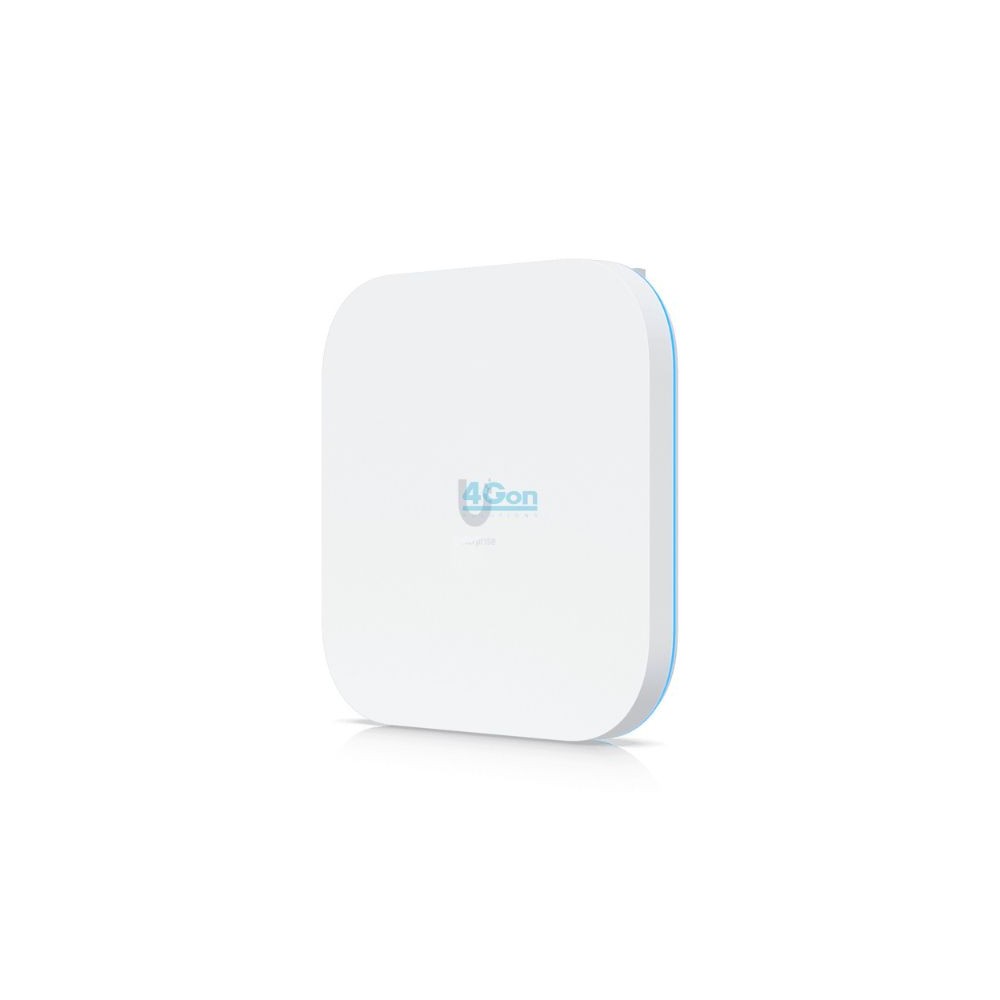

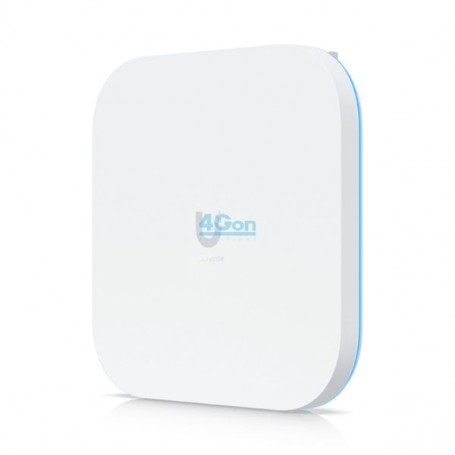

Ubiquiti E7-Campus-Indoor-US - Wi-Fi 7 Indoor Access Point
Overview
The Ubiquiti E7-Campus-Indoor-US is a high-capacity Wi-Fi 7 access point designed for enterprise and campus indoor wireless deployments. It delivers multi-band coverage with 10 spatial streams and high-gain internal antennas to support dense client environments. The device offers a 10 GbE uplink with an additional 1 GbE port for data and power redundancy, improving infrastructure reliability. It fits large indoor spaces such as auditoriums, lecture halls, and open office areas. Management is via standard network controllers or Ubiquiti's controller software.
Key Features
• 10-stream Wi-Fi 7 (802.11be) radios
• Dual Ethernet: 10 GbE + redundant 1 GbE
• Integrated directional internal antennas
• Supports PoE++ power delivery
Technical Specifications
| Specification | Detail |
|---|
| Brand | Ubiquiti |
| Part Number | E7-Campus-Indoor-US |
| Product Type | Enterprise Wi-Fi 7 Indoor Access Point |
| Wi-Fi Standard | IEEE 802.11be (Wi-Fi 7) |
| Spatial Streams | 10 streams |
| Maximum Data Rate | 11.5 Gbps (6 GHz band) |
| Ethernet Ports | 1×10 GbE RJ45, 1×1 GbE RJ45 |
| Power Method | PoE++ (42.5-57 V DC) |
| Max Power Consumption | 44 W |
| Antenna Gain | 12 dBi (5 GHz & 6 GHz), 9 dBi (2.4 GHz) |
| MIMO | 6 GHz: 4×4, 5 GHz: 4×4, 2.4 GHz: 2×2 |
| Operating Temperature | -30 °C to 60 °C |
| Weatherproof Rating | IPX6 (Indoor design) |
