Overview

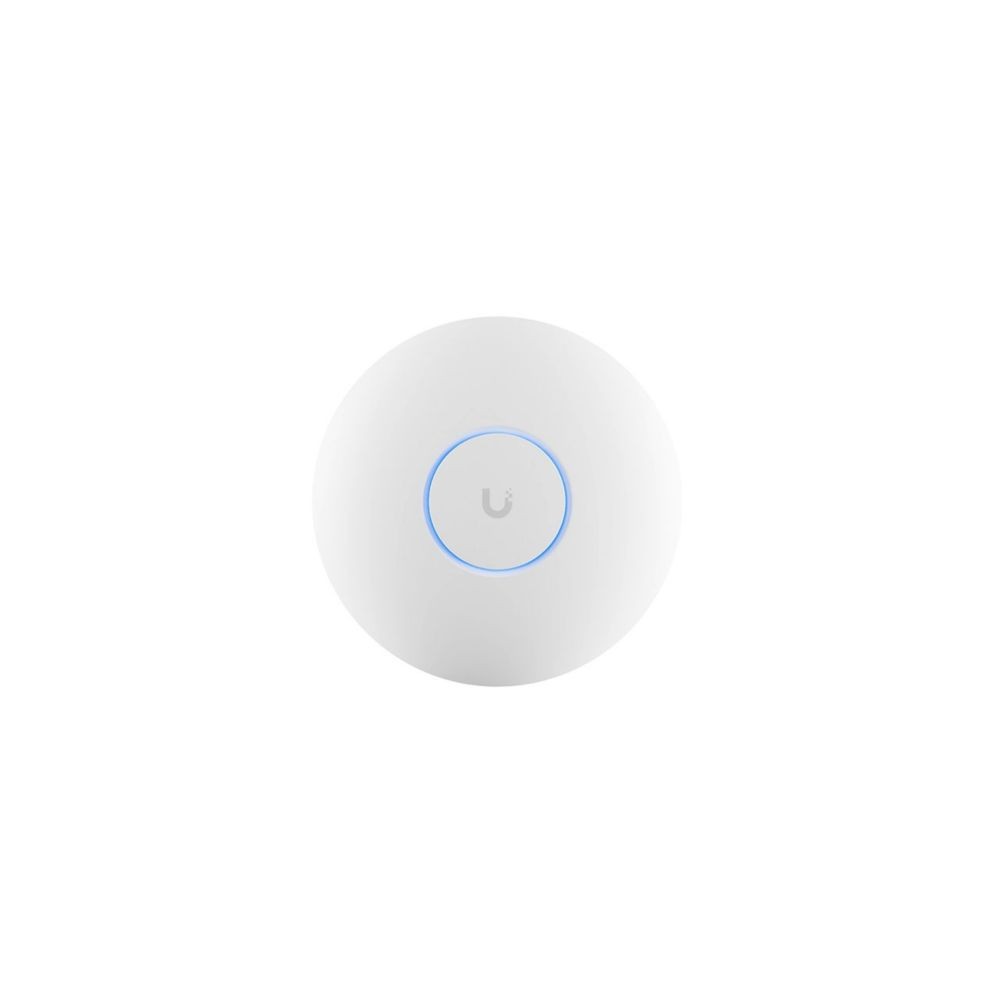

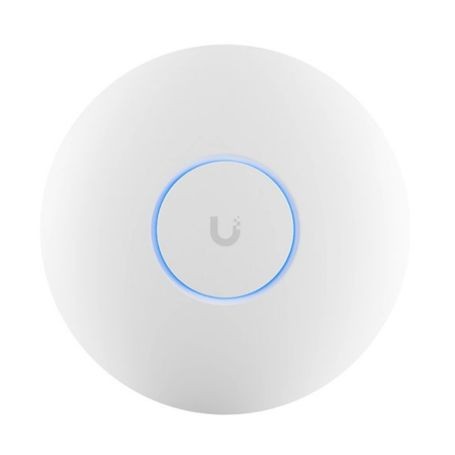

The Ubiquiti U7 Pro is a ceiling-mounted WiFi 7 access point designed for high-performance UniFi wireless networks. It provides tri-band 2.4 GHz, 5 GHz, and 6 GHz connectivity with six spatial streams, a 2.5 GbE Ethernet uplink, and PoE+ power. Ubiquiti specifies coverage of up to 140 m² (1,500 ft²) and support for more than 300 clients.
Wireless Connectivity
The U7 Pro uses 2x2 MU-MIMO on each of its 2.4 GHz, 5 GHz, and 6 GHz radios. Maximum specified data rates are 688 Mbps on 2.4 GHz, 4.3 Gbps on 5 GHz, and 5.8 Gbps on 6 GHz. The 6 GHz radio supports channel widths up to 320 MHz.
Network Features
The access point supports UniFi wireless features including wireless meshing, band steering, 802.11v BSS transition management, 802.11r fast roaming, 802.11k radio resource management, Passpoint, guest network isolation, private pre-shared keys, client isolation, WiFi scheduling, RADIUS over TLS, and dynamic RADIUS-assigned VLANs.
Deployment
The U7 Pro is designed for ceiling or wall mounting and uses a 2.5 GbE RJ45 interface for network connectivity. It is powered by PoE+ and has a maximum power consumption of 21 W.
Key Features
- Tri-band WiFi 7 across 2.4 GHz, 5 GHz, and 6 GHz
- Six spatial streams with 2x2 MU-MIMO on each radio
- 2.5 GbE RJ45 uplink
- Up to 5.8 Gbps specified maximum 6 GHz data rate with 320 MHz bandwidth
- Ceiling or wall mounting with the AP Professional Mounting System
Applications
The U7 Pro is intended for UniFi wireless deployments requiring WiFi 7 and 6 GHz connectivity across large indoor spaces. Its tri-band architecture and enterprise wireless management features support networks with a high number of connected client devices.
DC Supplies Product Note
The U7 Pro uses PoE+ for power and a 2.5 GbE RJ45 port for its network uplink. When deploying the access point, the upstream network equipment should therefore provide compatible PoE+ power and 2.5 GbE connectivity where the full uplink capability is required.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | U7-Pro |
| Product Type | WiFi 7 Access Point |
| Model | U7 Pro |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Wireless Bands | 2.4 GHz / 5 GHz / 6 GHz |
| Coverage Area | 140 m² (1,500 ft²) |
| Maximum Client Count | 300+ |
| Uplink | 2.5 GbE |
| Networking Interface | 1 x 2.5 GbE RJ45 |
| Mounting | Ceiling, Wall |
| Power Method | PoE+ |
| Maximum Power Consumption | 21 W |
| 2.4 GHz MIMO | 2 x 2 DL/UL MU-MIMO |
| 5 GHz MIMO | 2 x 2 DL/UL MU-MIMO |
| 6 GHz MIMO | 2 x 2 DL/UL MU-MIMO |
| Maximum 2.4 GHz Data Rate | 688 Mbps |
| Maximum 5 GHz Data Rate | 4.3 Gbps |
| Maximum 6 GHz Data Rate | 5.8 Gbps |
| Antenna Gain | 4 dBi (2.4 GHz), 6 dBi (5 GHz), 6 dBi (6 GHz) |
| Maximum BSSIDs | 8 per radio |
| Operating Temperature | -30 to 40 °C (-22 to 104 °F) |
| Operating Humidity | 5–95% noncondensing |
| Enclosure Material | Polycarbonate, aluminum |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
FAQs
What wireless standard does the U7 Pro support?
The U7 Pro supports WiFi 7 and is also compatible with earlier WiFi generations including WiFi 6/6E, WiFi 5, and WiFi 4.
Does the U7 Pro support 6 GHz WiFi?
Yes. The access point includes a dedicated 6 GHz radio with 2x2 MU-MIMO and a specified maximum data rate of 5.8 Gbps.
What Ethernet interface does the U7 Pro use?
It provides one 2.5 GbE RJ45 networking interface.
How is the U7 Pro powered?
The access point uses PoE+ power.
Where can the U7 Pro be mounted?
Ubiquiti specifies ceiling and wall mounting for the U7 Pro.
How many clients does it support?
Ubiquiti specifies support for more than 300 connected clients.
