Detailed Specifications

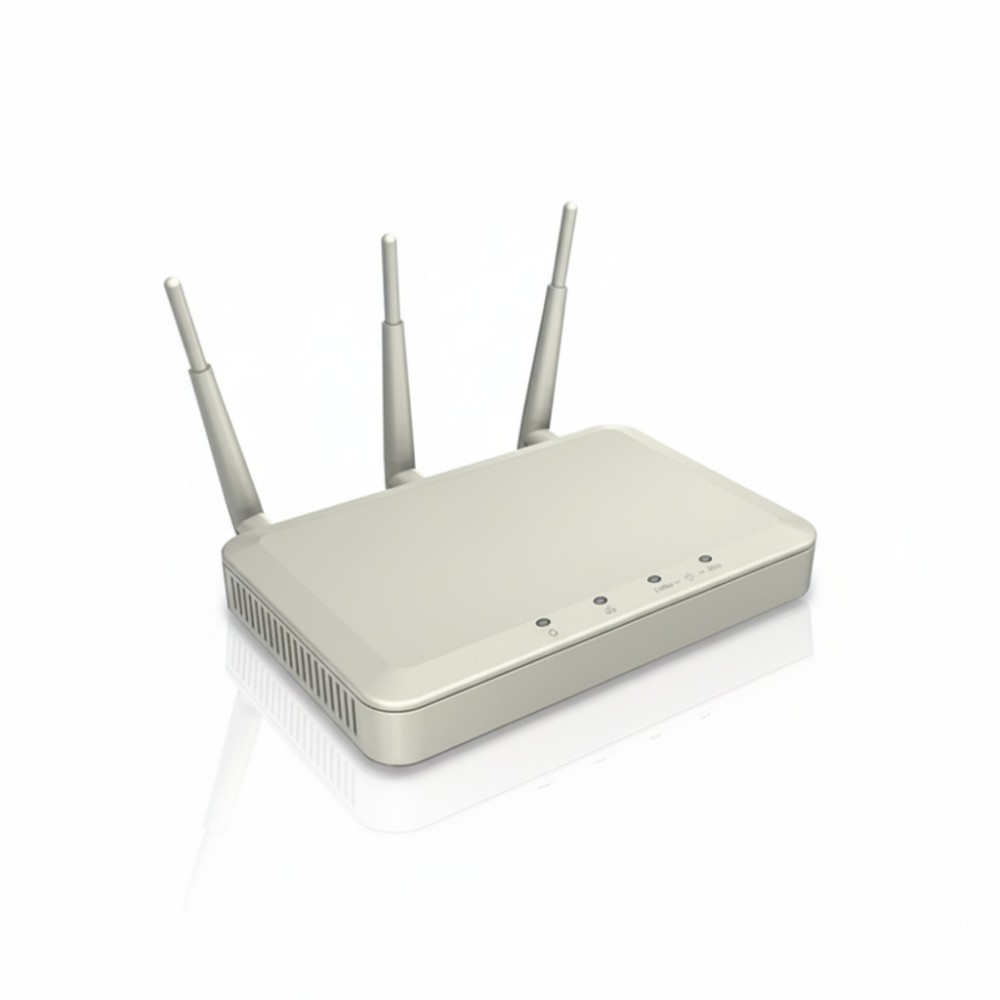

HPE S4A25A Aruba AP-725 Wi-Fi 7 Access Point
Overview
The HPE S4A25A is an Aruba AP-725 indoor access point featuring Wi-Fi 7 (802.11be) across three radios (2.4 GHz, 5 GHz, 6 GHz). It delivers up to 4.70 Gb/s aggregated throughput using 2×2 MIMO on each radio. The device includes a configurable IoT radio for Bluetooth 5.4 or Zigbee and is powered via PoE, with a 2.5 GbE RJ-45 port for uplink connectivity. Designed for ceiling or wall deployment, it is suitable for high-density enterprise and campus environments.
Key Features
Tri-radio Wi-Fi 7 (2.4 / 5 / 6 GHz) for simultaneous multi-band coverage
2×2 MIMO per radio enabling high throughput and capacity
4.70 Gb/s maximum aggregate data rate
Integrated Bluetooth 5.4 / Zigbee IoT radio
2.5 GbE RJ-45 with PoE support for modern deployment
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE / Aruba |
| Part Number | S4A25A |
| Product Type | Indoor Access Point |
| Wi-Fi Standard | IEEE 802.11be (Wi-Fi 7), plus a/b/g/n/ac/ax |
| Radio Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Maximum Aggregate Data Rate | 4.70 Gb/s |
| MIMO Configuration | 2×2 per radio |
| Antenna Type | Internal omnidirectional |
| Ethernet Port | 1 × 2.5 GbE (RJ-45) |
| PoE Support | Yes (PoE PD) |
| IoT Radio | Bluetooth 5.4 and Zigbee |
| Power Consumption | ~12.50 W |
| Dimensions (H × W × D) | ~1.9″ × 7.9″ × 7.9″ |
| Weight | ~2.01 lb |
| Mounting | Ceiling or rail mountable |
| Operating Temperature | Standard indoor range |
| Security | WPA3, WPA2, OWE, WPA3-ENT, WPA2-MPSK |
| Warranty | Limited lifetime |
