Detailed Specifications

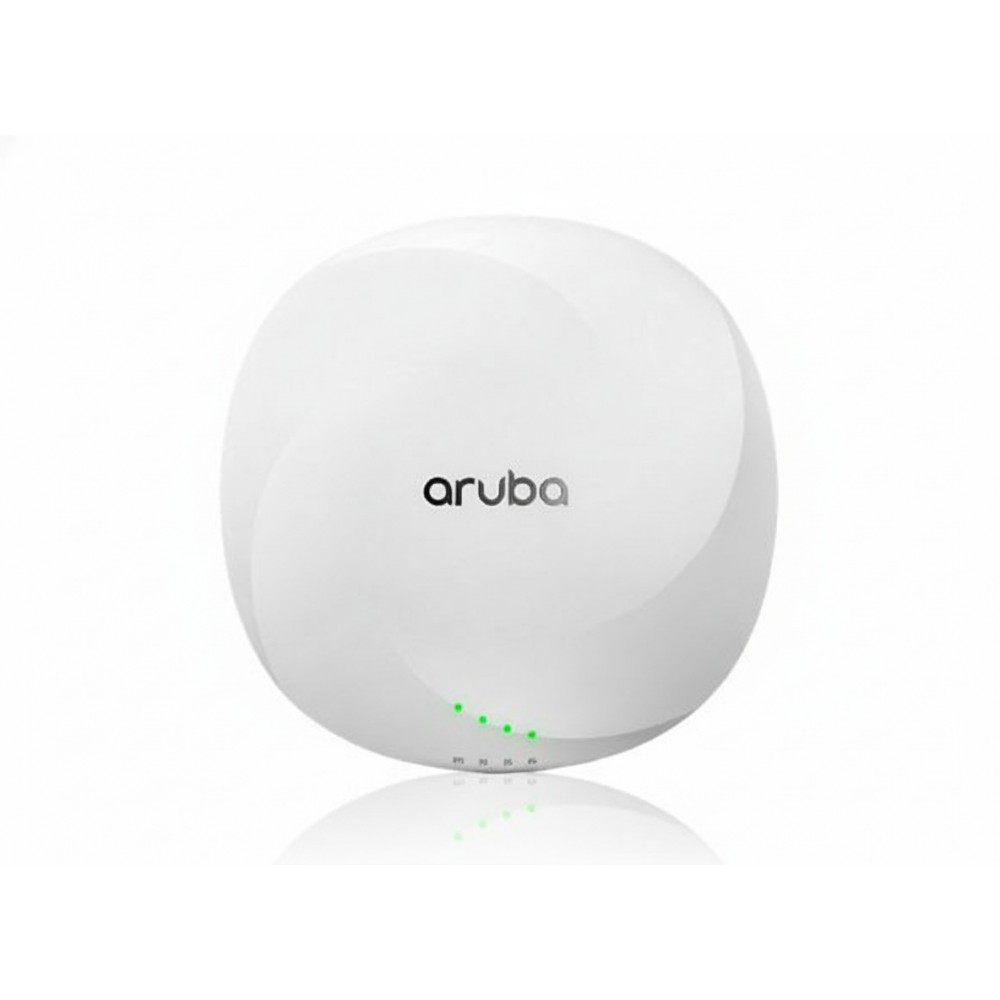

HPE S3J36A Aruba AP-635 Wi-Fi 6E Tri-Band Access Point
Overview
The HPE S3J36A is an Aruba AP-635 indoor access point that supports Wi-Fi 6E with three dedicated radios (2.4 GHz, 5 GHz, and 6 GHz). It delivers high aggregate throughput, ideal for capacity-dense environments like campuses, offices, or large meeting spaces. The AP includes dual 2.5 GbE Smart Rate ports for hitless data and power failover, and supports both PoE and DC power. Integrated GPS, barometric sensors, Bluetooth 5, and Zigbee enable IoT and location-based services.
Key Features
Tri-radio 2×2:2 MIMO (2.4 / 5 / 6 GHz) for up to ~3.9 Gb/s
Ultra tri-band filtering reduces interference between 5 GHz and 6 GHz
Dual 2.5 GbE Smart Rate ports with data & power failover
Built-in GPS and barometer for location-based services
Integrated Bluetooth 5 & Zigbee radios for IoT support
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE / Aruba |
| Part Number | S3J36A |
| Product Type | Wi-Fi 6E indoor access point |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6E) |
| Radio Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Maximum Aggregate Data Rate | 3.9 Gb/s |
| MIMO | 2×2:2 per radio |
| Device Class | Low Power Indoor (LPI) |
| Ethernet Ports | 2 × RJ-45 Smart Rate (1/2.5 GbE) |
| Power Options | PoE (802.3at/802.3bt) or 12 V DC |
| IoT Radios | GPS, barometric sensor, Bluetooth 5, Zigbee |
| Maximum Clients | Up to 512 clients per radio |
| SSIDs per Radio | Up to 16 BSSIDs |
| Power Consumption | ~8.7 W |
| Dimensions (H × W × D) | 220 mm × 220 mm × 51 mm |
| Weight | ~2.87 lb |
| Operating Temperature | 0 °C to 50 °C |
| Security | WPA3, 802.1X, Enhanced Open, WPA2 |
