Overview

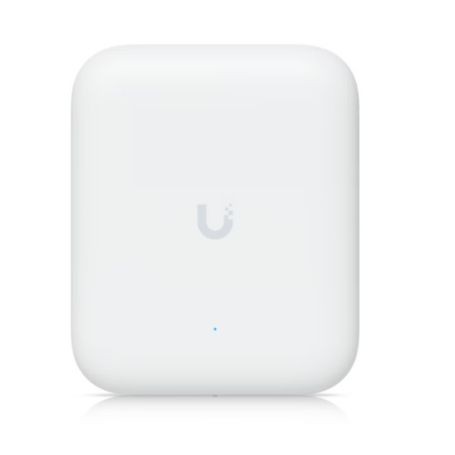

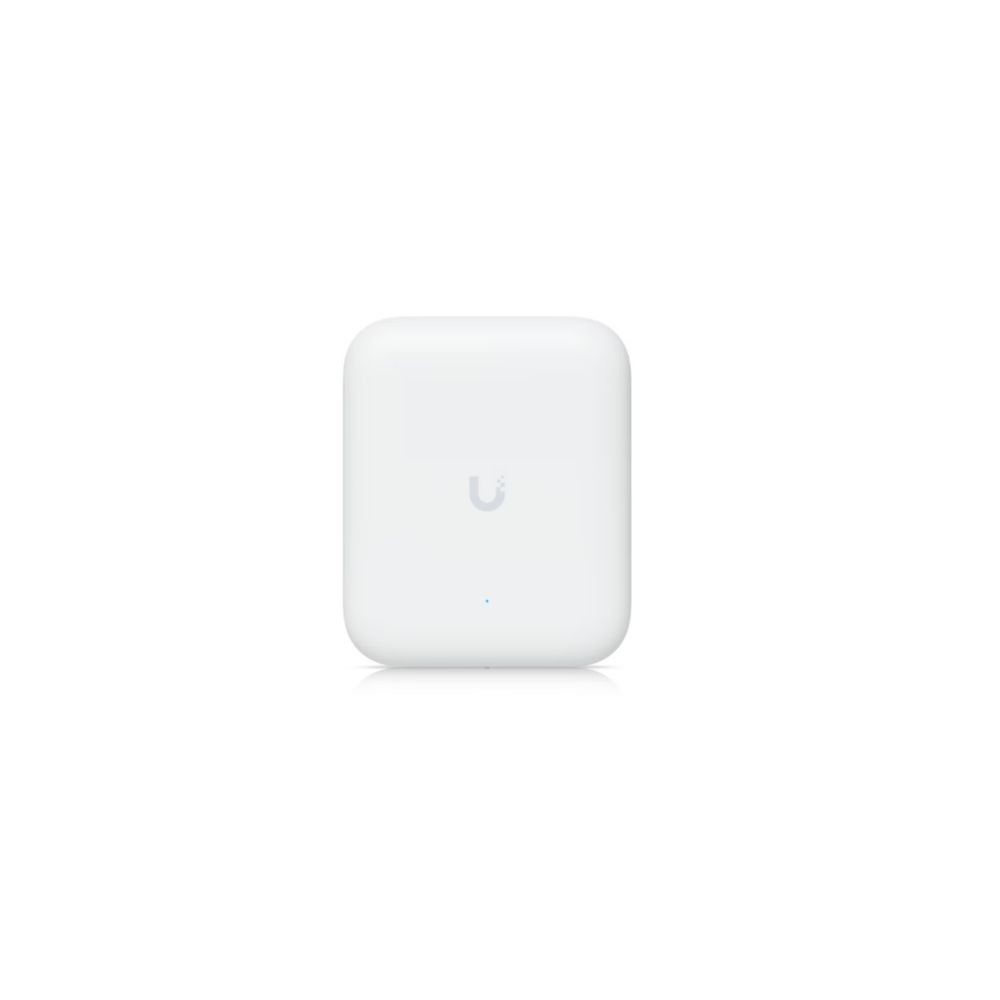

The Ubiquiti U7 Pro Outdoor is an outdoor WiFi 7 access point designed for high-performance wireless connectivity in exterior deployments. It provides 2.4 GHz, 5 GHz, and 6 GHz radios, six spatial streams, a 10 GbE Ethernet uplink, and PoE+ power.
Wireless Connectivity
The access point uses 2x2 MU-MIMO across its 2.4 GHz, 5 GHz, and 6 GHz radios. Ubiquiti specifies maximum data rates of 688 Mbps on 2.4 GHz, 4.3 Gbps on 5 GHz, and 5.8 Gbps on 6 GHz. The 6 GHz radio supports up to 320 MHz channel width.
Outdoor Deployment
The U7 Pro Outdoor is designed for outdoor installation and provides an IPX6-rated enclosure. It supports pole or wall mounting and includes an omni-directional antenna. An optional directional antenna can be used when a more focused coverage pattern is required.
Connectivity and Management
A single 10 GbE RJ45 interface provides the network uplink and PoE+ connection. UniFi management features include wireless meshing, band steering, fast roaming, radio resource management, guest network isolation, client isolation, PPSK, VLAN assignment, WiFi scheduling, and related enterprise wireless controls.
Key Features
- Tri-band WiFi 7 operation across 2.4 GHz, 5 GHz, and 6 GHz
- Six spatial streams with 2x2 MU-MIMO radios
- 10 GbE RJ45 uplink with PoE+ power
- IPX6-rated enclosure for outdoor deployment
- Omni-directional antenna with optional directional antenna support
Applications
The U7 Pro Outdoor is intended for outdoor WiFi deployments requiring multi-band wireless access and a high-speed wired uplink. Pole and wall mounting allow installation across outdoor areas where an exterior access point is required.
DC Supplies Product Note
The U7 Pro Outdoor uses a 10 GbE RJ45 interface for its network connection and PoE+ power. Before installation, confirm that the upstream Ethernet infrastructure provides the required 10 GbE connectivity and PoE+ power. The optional directional antenna is a deployment consideration when coverage needs to be concentrated toward a specific area rather than distributed through the omni-directional antenna.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | U7-Pro-Outdoor-US |
| Product Type | Outdoor WiFi 7 Access Point |
| Model | U7 Pro Outdoor |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Wireless Bands | 2.4 GHz / 5 GHz / 6 GHz |
| 2.4 GHz MIMO | 2 x 2 DL/UL MU-MIMO |
| 5 GHz MIMO | 2 x 2 DL/UL MU-MIMO |
| 6 GHz MIMO | 2 x 2 DL/UL MU-MIMO |
| Maximum 2.4 GHz Data Rate | 688 Mbps |
| Maximum 5 GHz Data Rate | 4.3 Gbps |
| Maximum 6 GHz Data Rate | 5.8 Gbps |
| Uplink | 10 GbE |
| Networking Interface | 1 x 10 GbE RJ45 |
| Power Method | PoE+ |
| Enclosure Rating | IPX6 |
| Mounting | Pole, Wall |
| Antenna | Omni-directional |
| Optional Antenna | Directional antenna |
FAQs
Is the U7 Pro Outdoor designed for outdoor use?
Yes. The U7 Pro Outdoor has an IPX6-rated enclosure and is designed for outdoor wireless deployments.
Which wireless bands does it support?
It supports 2.4 GHz, 5 GHz, and 6 GHz WiFi, providing tri-band WiFi 7 connectivity.
What Ethernet interface does it use?
The access point has one 10 GbE RJ45 interface for its wired uplink.
How is the access point powered?
The U7 Pro Outdoor uses PoE+ power through its Ethernet connection.
Can the antenna coverage pattern be changed?
The access point includes an omni-directional antenna and supports an optional directional antenna for more focused coverage.
