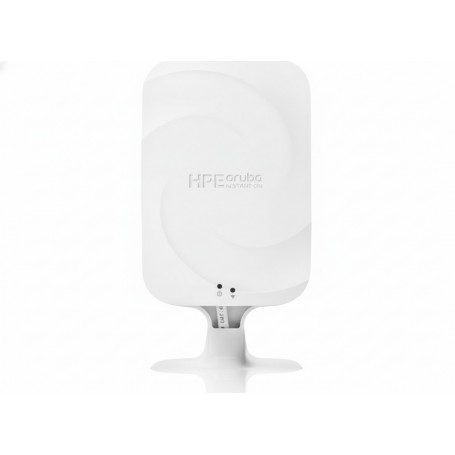

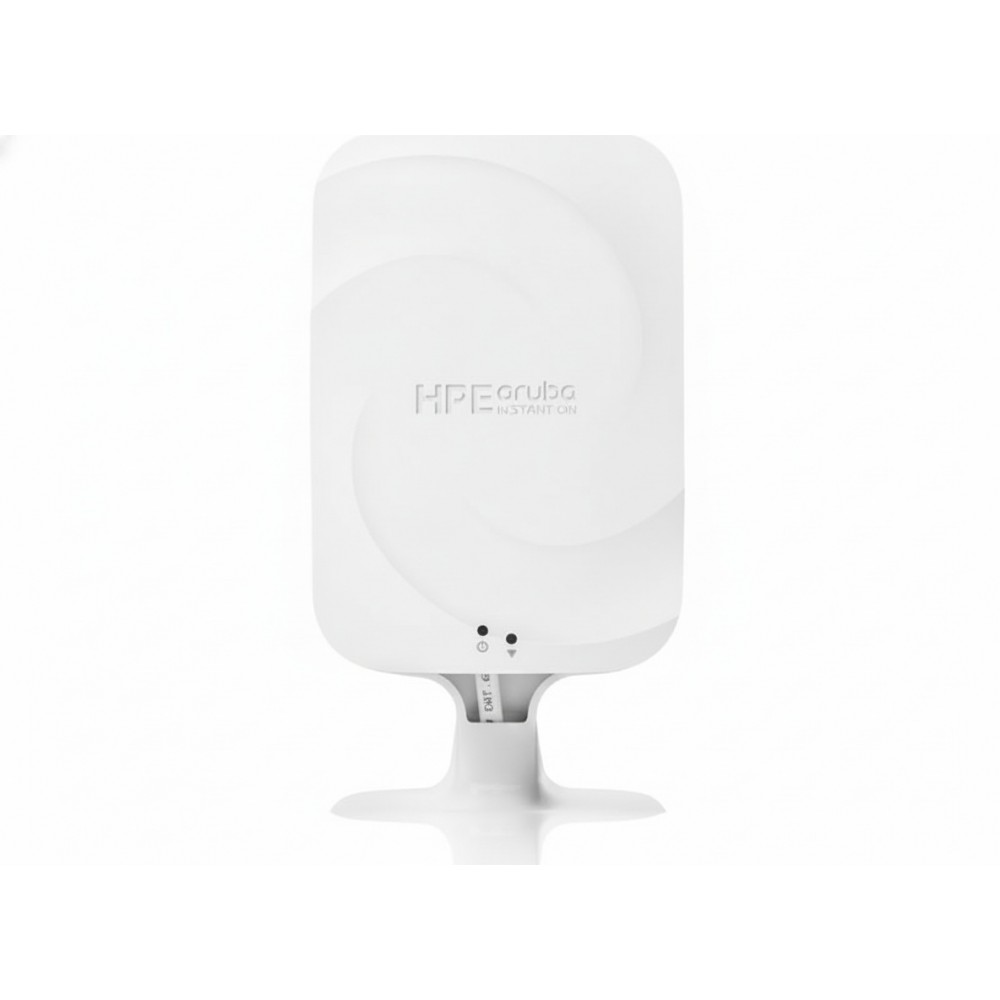

HPE Aruba S1F96A Networking Dual Radio Tri Band Fi 6E Access Point

S1F96A

New

Tri-band Wi-Fi 6E access point for hospitality environments

×




Detailed Specifications

HPE Aruba S1F96A

Dual Radio Tri Band Wi-Fi 6E Hospitality Access Point

High-performance Wi-Fi 6E access point for hospitality environments with IoT support.

Overview :

The HPE Aruba S1F96A is a dual-radio tri-band Wi-Fi 6E access point, purpose-built for hospitality venues such as hotels, resorts, and large guest spaces. It delivers blazing-fast wireless performance with support for the new 6 GHz band along with traditional 2.4 GHz and 5 GHz bands, reducing interference and boosting client capacity. This access point helps hospitality businesses provide seamless connectivity to guests and operational devices, while its integrated IoT radios enable smart environment capabilities. Supporting the latest Wi-Fi 6E standard, the Aruba S1F96A access point equips venues with a tri-band architecture that includes the new 6 GHz spectrum, which offers more clean channels and less congestion compared to legacy bands. This results in improved wireless performance, lower latency, and enhanced density support for environments with many connected users such as conference rooms and lobbies.

Features :

Designed for demanding hospitality use cases, the access point offers advanced guest management capabilities and secure authenticated access, maintaining network integrity while delivering a consistent user experience. Its integrated Bluetooth and Zigbee radios enable connection and management of IoT and smart building devices, which are increasingly prevalent in modern hospitality settings. With support for cloud management, as well as traditional controller-based options, the Aruba S1F96A provides operational flexibility suited to IT networking teams of various sizes. Its compact and durable design simplifies installation in diverse locations, from guest rooms to public areas, while maintaining optimal network coverage.

Product Key Features

  • Dual-radio tri-band Wi-Fi 6E support for ultra-fast wireless connectivity.
  • Designed specifically for hospitality and high-density environments.
  • Supports Wi-Fi 6E 6 GHz band for reduced interference and higher throughput.
  • Integrated Bluetooth and Zigbee for IoT device support.
  • Advanced security and guest access features.
  • Cloud and controller-based management options.

Reliability & Performance :

Built with enterprise-grade hardware, the access point ensures reliable operation with balanced heat dissipation and efficient power usage, supporting Power over Ethernet (PoE) for simplified deployment. It features robust security protocols, including WPA3 and secure guest access, preventing unauthorized intrusions. The device is optimized for high-density environments and supports seamless client roaming, ensuring uninterrupted service for guests moving around the facility. The use of tri-band Wi-Fi 6E minimizes interference and mitigates congestion, contributing to long-term network stability.

Key Features :

  • Dual-radio tri-band Wi-Fi 6E with 6 GHz, 5 GHz, and 2.4 GHz bands.
  • Hospitality-focused design with advanced guest access controls.
  • Integrated Bluetooth and Zigbee radios for IoT integration.
  • Supports WPA3 security and advanced encryption protocols.
  • Cloud and controller-based management flexibility.
  • PoE-powered for easy installation.

Specifications :

SpecificationDetails
Brand HPE Aruba
Model Number S1F96A
Product Type Dual Radio Tri-Band Wi-Fi 6E Access Point
Wi-Fi Standards IEEE 802.11ax (Wi-Fi 6E), including 6 GHz band
Radio Bands 2.4 GHz, 5 GHz, 6 GHz
Maximum Data Rate Up to 5.95 Gbps (combined)
Antenna Type Internal omnidirectional
IoT Support Integrated Bluetooth and Zigbee
Security Protocols WPA3, WPA2, 802.1X, Guest Access Portal
Management Cloud-managed, Aruba Central, or controller-based
Power Over Ethernet (PoE) IEEE 802.3at/af, PoE-powered
Ports 1 x 1 GbE RJ45 Ethernet
Dimensions Approx. 160 x 160 x 45 mm
Operating Temperature 0°C to 40°C
Warranty Limited Lifetime Warranty
