Detailed Specifications

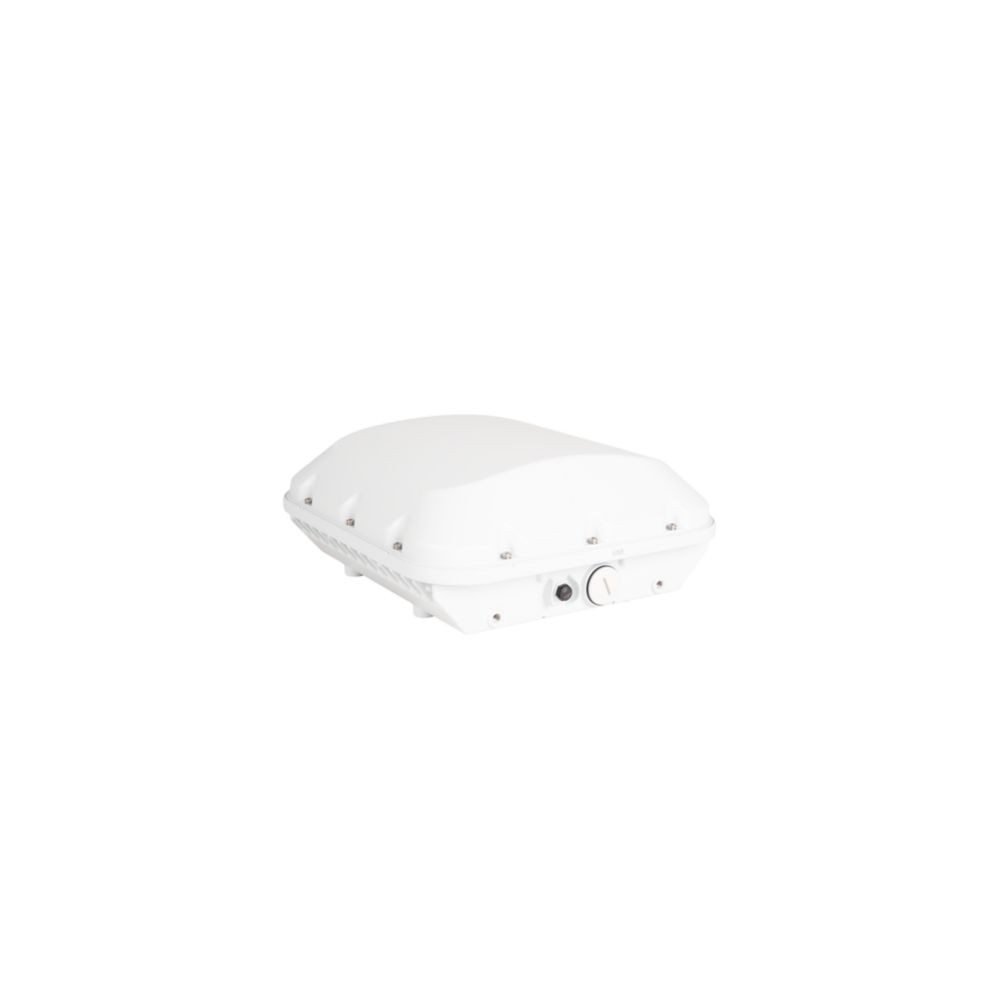

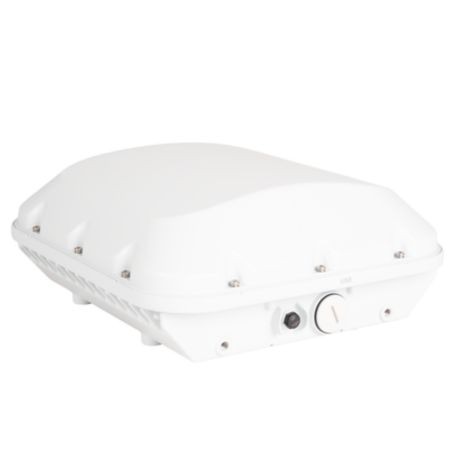

Ruckus ANU-B670-US02 - Tri-Band Wi-Fi 7 Outdoor Access Point
Overview :
The Ruckus ANU-B670-US02 is a high-performance tri-band outdoor access point designed for enterprise-grade Wi-Fi 7 connectivity. It supports 2.4 GHz, 5 GHz, and 6 GHz bands with 2x2:2 MIMO on each, delivering a combined data rate of up to 9.34 Gbps. Ideal for high-density environments such as stadiums, campuses, and outdoor venues, it ensures reliable performance even in challenging conditions. With an IP67 rating, the access point is built to withstand extreme temperatures ranging from -40°C to 65°C. It features a 5 GbE port to eliminate backhaul bottlenecks and supports up to 768 client devices simultaneously. The device is powered via PoE++ (802.3bt) and offers a controller-less management platform for simplified deployment and maintenance.
Key Features :
Tri-band Wi-Fi 7 (802.11be) with 2x2:2 MIMO
Supports up to 9.34 Gbps aggregate throughput
IP67-rated enclosure for outdoor durability
Operates in temperatures from -40°C to 65°C
Built-in 5 GbE port for high-speed backhaul
Specifications
| Specification | Details |
|---|
| Brand | Ruckus Wireless |
| Part Number | ANU-B670-US02 |
| Product Type | Tri-band Outdoor Access Point |
| Wi-Fi Standard | 802.11be (Wi-Fi 7) |
| MIMO Configuration | 2x2:2 (2.4 GHz, 5 GHz, 6 GHz) |
| Total Data Rate | Up to 9.34 Gbps |
| Supported Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Client Capacity | Up to 768 devices |
| Ethernet Ports | 1x 5 GbE, 1x 1 GbE |
| Power Input | PoE++ (802.3bt) |
| Operating Temperature | -40°C to 65°C |
| Ingress Protection | IP67 |
| Dimensions (W x H x D) | 9.4" x 4.3" x 9.8" (239.8 mm x 109.2 mm x 249.7 mm) |
| Weight | 5 lbs (2.27 kg) |
