Detailed Specifications

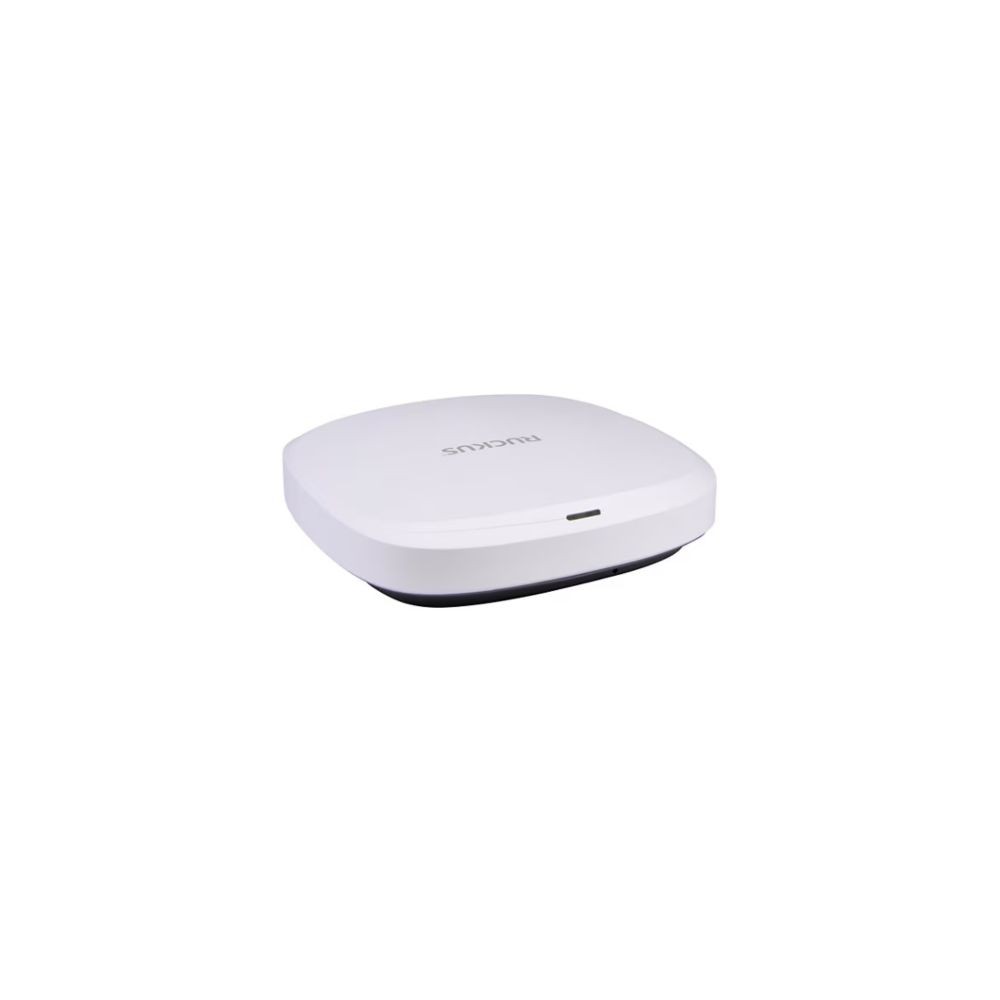

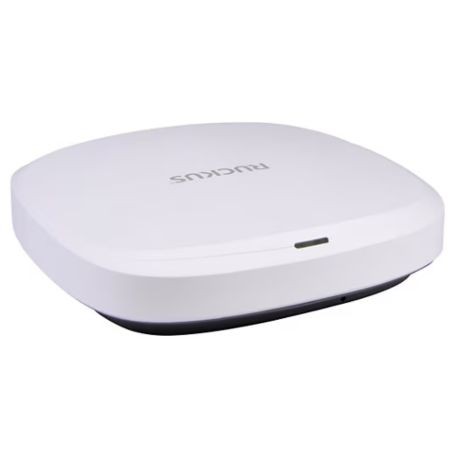

Ruckus 901-R670-US00 Indoor Tri Band Wi-Fi 7 Access Point
Overview
The Ruckus R670 is a tri-band indoor access point built for high-density environments × large offices, dormitories, hotel floors, classrooms. It supports Wi-Fi 7 (802.11be) concurrently on the 2.4 GHz, 5 GHz and 6 GHz bands and delivers up to 9.34 Gbps combined PHY rate.It includes multi-gig Ethernet backhaul (5 GbE or 2.5/5/10 depending on SKU) to ensure the wired uplink doesn't throttle the wireless capacity.
With onboard IoT radio (BLE/Zigbee selectable) and advanced Ruckus antenna/optimisation technology (BeamFlex+, etc), this AP is suited for deployments that require WiFi + IoT convergence, dense client counts and future-proof performance.Wi-Fi 7 (802.11be) concurrently on the 2.4 GHz, 5 GHz and 6 GHz bands and delivers up to 9.34 Gbps combined PHY rate.It includes multi-gig Ethernet backhaul (5 GbE or 2.5/5/10 depending on SKU) to ensure the wired uplink doesn't throttle the wireless capacity. With onboard IoT radio (BLE/Zigbee selectable) and advanced Ruckus antenna/optimisation technology (BeamFlex+, etc), this AP is suited for deployments that require WiFi + IoT convergence, dense client counts and future-proof performance.
Key Features
Tri-band 802.11be (Wi-Fi 7) with 2×2:2 in each band (2.4/5/6 GHz) delivering up to approx. 9.34 Gbps aggregate.
Multi-gig Ethernet ports (e.g., 5 GbE) for uplink/backhaul, eliminating wired-link bottleneck
Integrated BLE/Zigbee IoT radio enables converged WiFi + IoT architecture
High-density client support (upwards of ~768 clients depending on layout) and advanced RF optimisation (BeamFlex+, ChannelFly) for challenging indoor spaces
Flexible management: supports Ruckus Cloud, SmartZone, Unleashed or traditional on-premises controller deployment.
Specifications
| Specification | Detail |
|---|
| Brand | Ruckus |
| Part Number | 901-R670-US00 |
| Product Type | Indoor Tri-Band Wi-Fi 7 Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax/be |
| Radio Configuration | 2×2:2 in 2.4GHz + 2×2:2 in 5GHz + 2×2:2 in 6GHz |
| Maximum PHY Rate | ~9.34 Gbps combined across all bands |
| Ethernet Backhaul | Multi-gigabit (e.g., 5 GbE) |
| IoT Radio | Built-in BLE + Zigbee selectable |
| Client Capacity | Supports high client density (e.g., ~768 or more) |
| Management Options | Cloud, SmartZone, Unleashed, On-prem controller |
| Typical Use Case | Campus, hospitality, dense indoor venue WiFi + IoT |
