Detailed Specifications

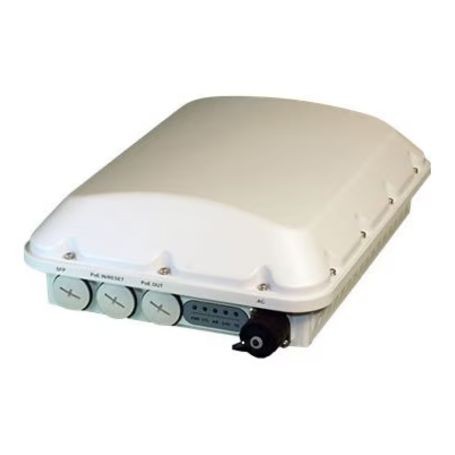

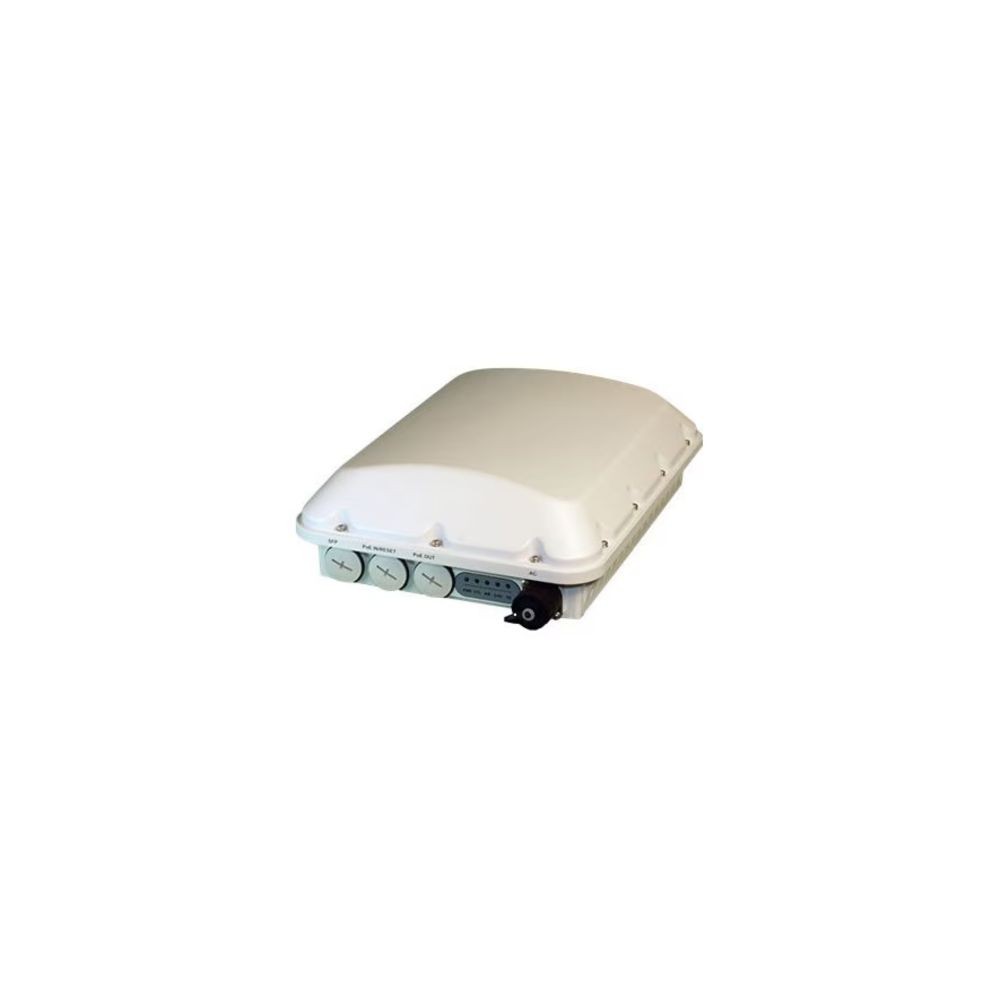

Ruckus 901-T750-US51 Outdoor Wi Fi 6 Sector High-Density Access Point
Overview
The Ruckus 901-T750-US51 is a high-performance outdoor access point built for ultra-dense deployment scenarios × stadiums, arenas, smart-city plazas, large outdoor campuses, and transit hubs. It supports Wi-Fi 6 (802.11ax) with dual-band, 4×4:4 radio chains in both 2.4 GHz and 5 GHz bands, delivering significantly higher client capacity, better coverage, and improved reliability. With its industrial-grade, IP67-rated enclosure and ruggedised construction, the unit is designed to withstand harsh environmental conditions × from severe weather to wide temperature ranges. It also features a multi-gigabit uplink (2.5 GbE plus SFP/SFP+) that ensures backhaul will not bottleneck the Wi-Fi capacityIn practical deployment terms: if you're deploying outdoor Wi-Fi in a high-client-density zone (e.g., a stadium concourse with 1,000 + guests per AP, or a mall outdoor terrace streaming 4K video), the T750-US51 gives you the raw throughput, client scale, and ruggedness you need. It integrates seamlessly with Ruckus controllers, cloud management, or in controller-less mode, enabling full enterprise stack manageability.
Key Features
Dual-band 4×4:4 (2.4 GHz & 5 GHz) Wi-Fi 6 radios, supporting high-capacity client environments.
2.5 GbE + SFP uplink(s) ensure the backhaul link doesn't limit the wireless throughput.
IP67-rated enclosure and outdoor-ready design for all kinds of harsh environment deployments.
Adaptive BeamFlex+ antenna system and high-density optimisation features (OFDMA, MU-MIMO) boost performance in interference-heavy outdoor zones.
Supports built-in IoT radios (BLE/Zigbee) and/or pluggable IoT modules, enabling unified Wi-Fi + IoT deployments outdoors.
Specifications
| Specification | Detail |
|---|
| Brand | Ruckus |
| Part Number | 901-T750-US51 |
| Product Type | Outdoor Wi-Fi 6 Access Point |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Radio Configuration | 4×4:4 (dual-band 2.4 GHz + 5 GHz) |
| Maximum PHY Rate | Up to ~3.5 Gbps aggregate (per datasheet) |
| Ethernet Ports | 1×2.5 GbE + 1×10/100/1000 MbE (or equivalent multi-gig uplink |
| Backhaul Interface | SFP/SFP+ fibre option available |
| Enclosure Rating | IP67 (weather-proof outdoor) |
| Client Support | Up to ~1,024 clients (design spec for ultra-dense environments) |
| IoT Radio Built-in | BLE + Zigbee (for IoT integration) |
| Mounting Options | Outdoor pole, wall bracket, side-mount (industrial deployment ready) |
| Operating Temperature | −40 °C to +65 °C (typical outdoor spec) |
| Warranty | Standard manufacturer limited warranty |
